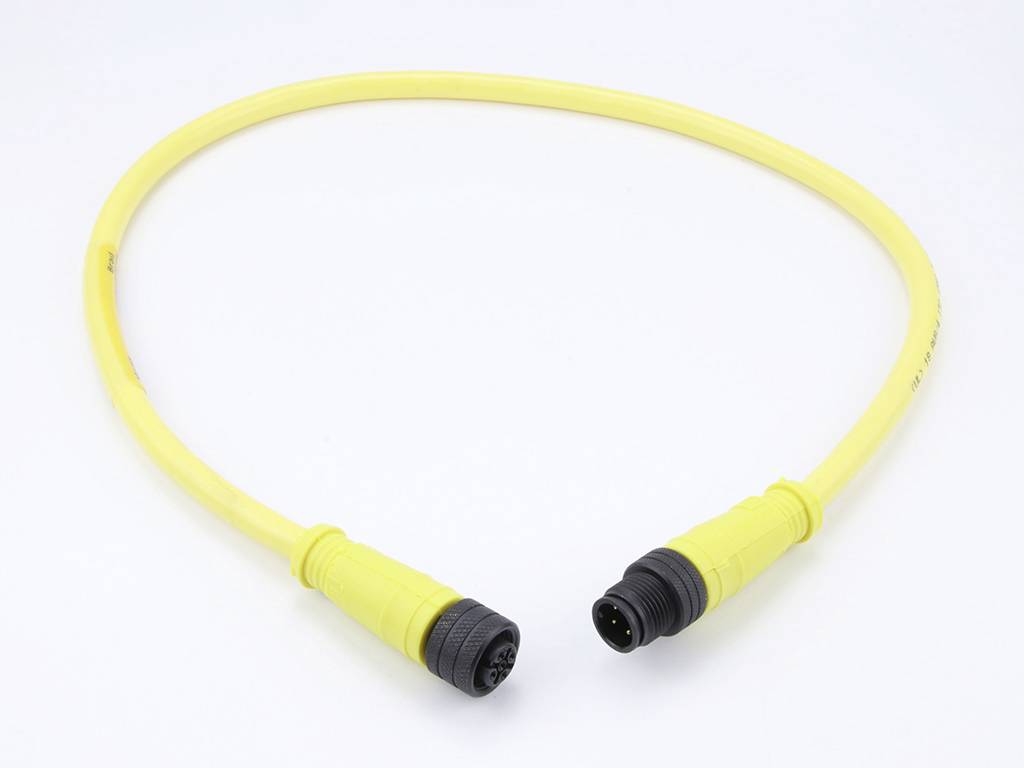

Molex 1200661044 Sensor/actuator connector (pre-fab) M12 Socket, Plug 15.00 m No. of pins (RJ): 5 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket
Plug
Connector standard
Sensor connector
Connection side A
Micro-Change (M12)
Connection side B
Micro-Change (M12)
Datasheet (PDF)
Number
Minimum order quantity: 3
Total (€ 109.24 / piece)
€ 327.72
plus VAT.
Highlights & Details
AAA (M12)
- Micro-Change (M12) Double-Ended Cordset, 5 Poles, Female (Straight) to Male (Straight), 18 AWG, TPE Cable, 15.0m (49.21') Length
- This text is machine translated.
Our service for you
Technical specifications
- Wire size AWG: 18Coupling type: With threadMaterial - O-ring: Fluoro elastomerMaterial - Connector body TPEMaterial - union nut: Nickel-plated brassGroove: SingleOrientation: Straight to StraightRegion: America
- Packaging type
Piece
- Type
Molex WOD Industrial Solution
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Socket
Plug
- Connector standard
Sensor connector
- Connection side A
Micro-Change (M12)
- Connection side B
Micro-Change (M12)
- No. of pins
5
- Cable length
15.00 m
- Jacket material
TPE
- Nominal voltage
250 V DC/AC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Socket
- Factory colour
Yellow
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Contact material
Brass
- Contact surface
Gold
IP67
- Features
TPE
- Min. temperature
-20 °C
- Max. temperature
+105 °C
- Seal type
Screw-on
- Manufacturer part #
1200661044
- Industrial packaging
Yes
- Content
1 pc(s)
- Cable Ø
6.86 mm
- RoHS-compliant
Yes
- Engineering Part No
885030K03M150
- Engineering Series Name
MIC DC D/E Cordsets
- Engineering Series No
120066
Documents & Downloads
Datasheet
Datasheet 2447016 Molex 1200661044 Sensor/actuator connector (pre-fab) M12 Socket, Plug 15.00 m No. of pins (RJ): 5 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2447016 Molex 1200661044 Sensor/actuator connector (pre-fab) M12 Socket, Plug 15.00 m No. of pins (RJ): 5 1 pc(s) Piece
Circuit diagramm
Circuit diagramm 2447016 Molex 1200661044 Sensor/actuator connector (pre-fab) M12 Socket, Plug 15.00 m No. of pins (RJ): 5 1 pc(s) Piece
Description
Micro-Change (M12) Double-Ended Cordset, 5 Poles, Male (Straight) to Female (Straight), 18 AWG, Yellow TPE Cable, 15.0m (49.21') Length
