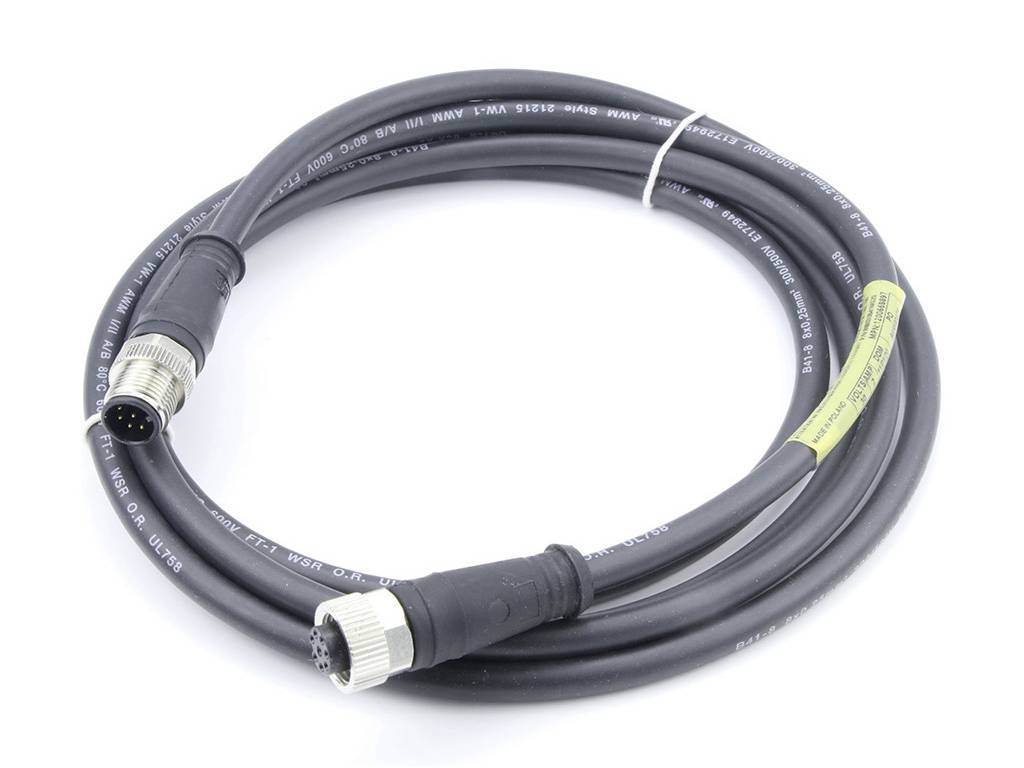

Molex 1200668899 Sensor/actuator connector (pre-fab) M12 Socket, Plug 5.00 m No. of pins (RJ): 8 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket
Plug
Connector standard
Sensor connector
Connection side A
Micro-Change (M12)
Connection side B
Micro-Change (M12)
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Highlights & Details
AAA (M12)
- Micro-Change (M12) Double-Ended Cordset with Knurled Hexnut, 8 Poles, Female (Straight) to Male (Straight), 24 AWG, Unshielded WSOR Cable, 5.0m (16.40') Length
- This text is machine translated.
Technical specifications
- Wire size AWG: 24Coupling type: Ratchet hex nut, with threadMaterial - Connector body: TPUMaterial - union nut: Nickel-plated brassGroove: SingleOrientation: Straight to StraightRegion: Europe
- Packaging type
Piece
- Type
Molex WOD Industrial Solution
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Socket
Plug
- Connector standard
Sensor connector
- Connection side A
Micro-Change (M12)
- Connection side B
Micro-Change (M12)
- No. of pins
8
- Cable length
5.00 m
- Jacket material
TPU
- Nominal voltage
30 V
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Connection
Plug
- Factory colour
Black
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Cable colour
Black
- Contact material
Brass
- Contact surface
Gold
IP67
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
1200668899
- Industrial packaging
Yes
- Content
1 pc(s)
- Cable Ø
6.4 mm
- Engineering Part No
888030B41M050
- Engineering Series Name
MIC DC D/E Cordsets
- Engineering Series No
120066
Documents & Downloads
Datasheet
Datasheet 2447020 Molex 1200668899 Sensor/actuator connector (pre-fab) M12 Socket, Plug 5.00 m No. of pins (RJ): 8 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2447020 Molex 1200668899 Sensor/actuator connector (pre-fab) M12 Socket, Plug 5.00 m No. of pins (RJ): 8 1 pc(s) Piece
Circuit diagramm
Circuit diagramm 2447020 Molex 1200668899 Sensor/actuator connector (pre-fab) M12 Socket, Plug 5.00 m No. of pins (RJ): 8 1 pc(s) Piece
Description
Micro-Change (M12) Double-Ended Cordset with Knurled Hexnut, 8 Poles, Male (Straight) to Female (Straight), 24 AWG, Black TPU WSOR Cable, 5.0m (16.40') Length
