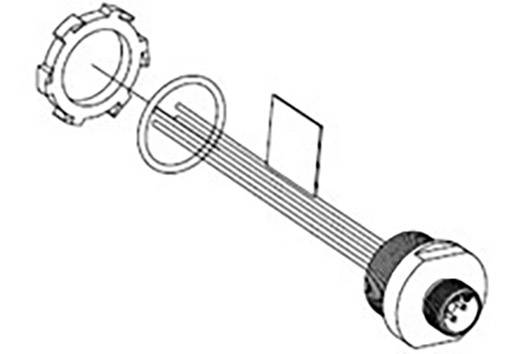

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
Molex 1200700156 Sensor/actuator connector (pre-fab) M12 Plug 0.3 m No. of pins (RJ): 4 1 pc(s) Single
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug
Connection side A
Micro-Change (M12)
No. of pins
4
Cable length
0.3 m
Datasheet (PDF)
Number
Minimum order quantity: 20
Multiple: 10
Total (€ 5.45 / piece)
€ 26.86
-80 %
€ 109.00
plus VAT.
Highlights & Details
AAA (M12)
- Micro-Change (M12) Receptacle, 4 Poles, M12x1 and PG9 Threads, Male (Straight) to 22 AWG Leads, 0.30m (11.81") Length
- This text is machine translated.
Our service for you
Technical specifications
- Wire size AWG: 22Coupling type: Male threadLength: 0.3 mMaterial - component: Nickel-plated brassGroove: SingleOrientation: Straight
- Packaging type
Single
- Type
Molex WOD Industrial Solution
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Plug
- Connection side A
Micro-Change (M12)
- No. of pins
4
- Cable length
0.3 m
- Nominal voltage
250 V DC/AC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Plug
- Thread type connection side
M12
- Thread type (wiring and installation)
PG9
- Contact material
Brass
- Sensor/actuator connectivity fittings
Front panel fitting
IP67
- Min. temperature
-20 °C
- Max. temperature
+80 °C
- Seal type
Screw-on
- Manufacturer part #
1200700156
- Industrial packaging
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Engineering Part No
8R4J36E03C3003
- Engineering Series Name
MIC DC Receptacles
- Engineering Series No
120070
Documents & Downloads
Datasheet
Datasheet 2447037 Molex 1200700156 Sensor/actuator connector (pre-fab) M12 Plug 0.3 m No. of pins (RJ): 4 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 2447037 Molex 1200700156 Sensor/actuator connector (pre-fab) M12 Plug 0.3 m No. of pins (RJ): 4 1 pc(s) Single
Circuit diagramm
Circuit diagramm 2447037 Molex 1200700156 Sensor/actuator connector (pre-fab) M12 Plug 0.3 m No. of pins (RJ): 4 1 pc(s) Single
Description
Micro-Change (M12) Receptacle, 4 Poles, M12x1 and PG9 Threads, Male (Straight) to 22 AWG Leads, 0.30m (11.81") Length
