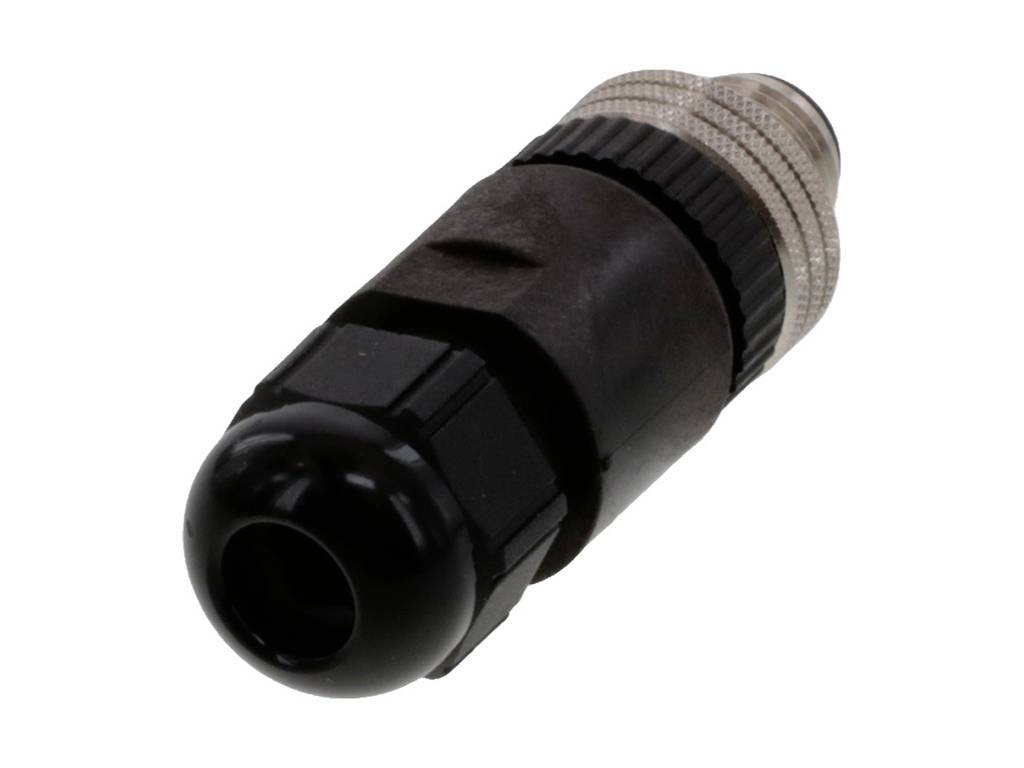

Molex 1200710039 Sensor/actuator connector M12 Plug No. of pins (RJ): 4 1 pc(s) Piece
Product type
Sensor/actuator connector
Connector type
Plug
No. of pins
4
Nominal voltage
250 V AC
300 V DC
Nominal current
4 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 10
Multiple: 1
Total (€ 7.99 / piece)
€ 38.39
-79 %
€ 7.99
incl. VAT
14-day return policy included
Highlights & Details
AAA (M12)
- Micro-Change (M12) Single Keyway with PG9 Cable Fitting, Straight Male, 4 Poles, Cable Diameter 4.10-8.10mm
- This text is machine translated.
Technical specifications
- Wire size AWG: 18Coupling type: Male threadMaterial - Connector body: PAMaterial - union nut: Nickel-plated brassGroove: SingleOrientation: Straight
- Packaging type
Piece
- Type
Molex WOD Industrial Solution
- Product type
Sensor/actuator connector
- Connector type
Plug
- No. of pins
4
- Nominal voltage
250 V AC
300 V DC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Plug
- Thread type connection side
M12
- Thread type (wiring and installation)
PG9
- Contact material
Brass
- Contact surface
Silver
IP67
- Min. temperature
-25 °C
- Max. temperature
+90 °C
- Seal type
Screw-on
- Manufacturer part #
1200710039
- Content
1 pc(s)
- Cable Ø (max.)
8.1 mm
- Cable Ø up to
4.1 mm
- Cable Ø range
4.1 - 8.1 mm
- RoHS-compliant
Yes
- Engineering Part No
8A4006-32
- Engineering Series Name
MIC DC Attachables
- Engineering Series No
120071
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2447047 Molex 1200710039 Sensor/actuator connector M12 Plug No. of pins (RJ): 4 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2447047 Molex 1200710039 Sensor/actuator connector M12 Plug No. of pins (RJ): 4 1 pc(s) Piece
Circuit diagramm
Circuit diagramm 2447047 Molex 1200710039 Sensor/actuator connector M12 Plug No. of pins (RJ): 4 1 pc(s) Piece
Description
Micro-Change (M12) Single Keyway with PG9 Cable Fitting, Straight Male, 4 Poles, Cable Diameter 4.10-8.10mm
