Molex 1201080027 Sensor/actuator adapter M12 Plug 3.00 m No. of pins (RJ): 4 1 pc(s) Piece

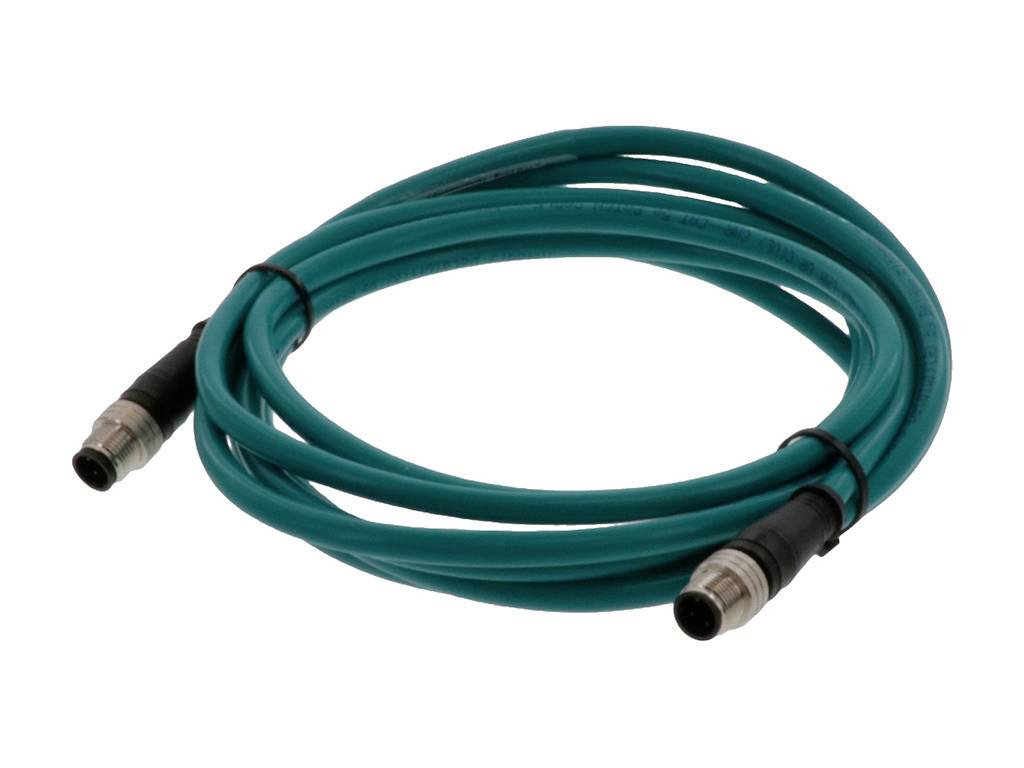

A green Ethernet cable with black connectors, laid in a loose loop.
Product type
Sensor/actuator adapter
Connector type
Plug
Connection side A
Micro-Change (M12)
Connection side B
Micro-Change (M12)
No. of pins
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
12 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 4
Multiple: 4
Total (€ 41.99 / piece)
€ 68.99
-39 %
€ 41.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Ethernet

  • Micro-Change (M12) Double-Ended Cordset, 4 Poles, Male (Straight) to Male (Straight), 24 AWG, PVC Cable, 3.0m (9.84') Length
  • This text is machine translated.

Our service for you

Technical specifications

  • Wire size AWG: 24Coupling type: With threadPerformance class: 5eMaterial - O-ring: Fluoro elastomerMaterial - Connector body: TPUMaterial - union nut: Nickel-plated brassOrientation: Straight to StraightRegion: America, Asia, Europe
Packaging type

Piece

Type

Molex WOD Industrial Solution

Product type

Sensor/actuator adapter

Connector type

Plug

Connection side A

Micro-Change (M12)

Connection side B

Micro-Change (M12)

No. of pins

4

Cable length

3.00 m

Jacket material

PVC

Nominal voltage

125 V

Nominal current

1.5 A

Nominal current - rounded value

1.5 A

Connection

M12 plug

Factory colour

Blue-green

Thread type connection side

M12

Thread type (wiring and installation)

M12

Coding

D

Contact material

Copper alloy

Contact surface

Gold

IP67

Min. temperature

-25 °C

Max. temperature

+75 °C

Seal type

Screw-on

Manufacturer part #

1201080027

Industrial packaging

Yes

Content

1 pc(s)

Cable Ø

6.35 mm

RoHS-compliant

Yes

Engineering Part No

E11A06002M030

Engineering Series Name

Ethernet Cordsets

Engineering Series No

120108

Documents & Downloads

Datasheet

Datasheet 2447122 Molex 1201080027 Sensor/actuator adapter M12 Plug 3.00 m No. of pins (RJ): 4 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2447122 Molex 1201080027 Sensor/actuator adapter M12 Plug 3.00 m No. of pins (RJ): 4 1 pc(s) Piece

Circuit diagramm

Circuit diagramm 2447122 Molex 1201080027 Sensor/actuator adapter M12 Plug 3.00 m No. of pins (RJ): 4 1 pc(s) Piece

Description

Micro-Change (M12) Double-Ended Cordset, 4 Poles, Male (Straight) to Male (Straight), 24 AWG, Teal PVC Cable, 3.0m (9.84') Length
