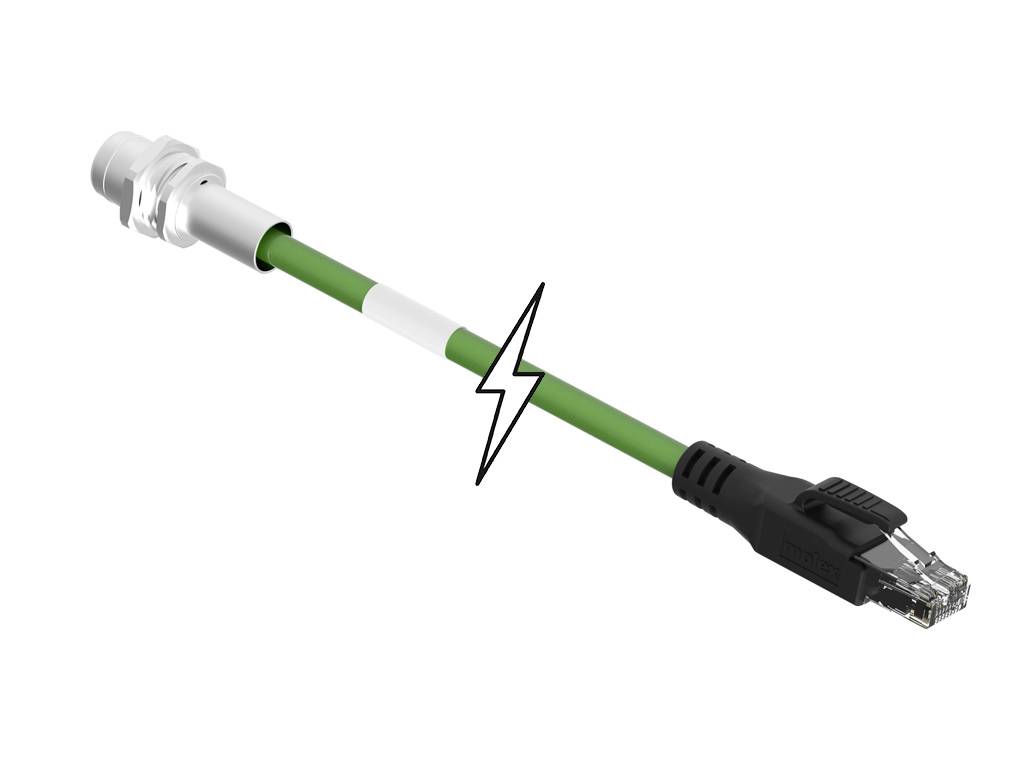

Molex 1201080252 Sensor/actuator connector (pre-fab) M12 Socket, Plug 1.00 m No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket
Plug
Connector standard
RJ45
Connection side A
Ultra-Lock (M12)
Connection side B
RJ45
Datasheet (PDF)
Number
Minimum order quantity: 4
Multiple: 4
Total (€ 38.65 / piece)
€ 154.60
plus VAT.
Highlights & Details
Ethernet
- Ultra-Lock (M12) Receptacle to RJ-45 Double-Ended Cordset, 4 Poles, Male (Straight) to Female (Straight), 22 AWG, Shielded PUR Cable, 1.0m (3.28') Length
- This text is machine translated.
Our service for you
Technical specifications
- Wire size AWG: 22Coupling type: With threadPerformance class: 5eMaterial - Connector body: PURMaterial - union nut: Nickel-plated brassOrientation: Straight to StraightRegion: America, Asia, Europe
- Type
Molex WOD Industrial Solution
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Socket
Plug
- Connector standard
RJ45
- Connection side A
Ultra-Lock (M12)
- Connection side B
RJ45
- No. of pins
4
- Cable length
1.00 m
- Jacket material
PUR
- Nominal voltage
30 V
- Nominal current
1.5 A
- Nominal current - rounded value
1.5 A
- Connection
Socket
- Factory colour
Green
- Thread type connection side
M12
- Coding
D
- Contact material
Copper alloy
- Contact surface
Gold
IP67
- Features
Shielded
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Seal type
Screw-on
- Manufacturer part #
1201080252
- Industrial packaging
Yes
- Content
1 pc(s)
- Cable Ø
6.7 mm
- RoHS-compliant
Yes
- Engineering Part No
ERWPAU7011M010
- Engineering Series Name
Ethernet Cordsets
- Engineering Series No
120108
Documents & Downloads
Datasheet
Datasheet 2447124 Molex 1201080252 Sensor/actuator connector (pre-fab) M12 Socket, Plug 1.00 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2447124 Molex 1201080252 Sensor/actuator connector (pre-fab) M12 Socket, Plug 1.00 m No. of pins (RJ): 4 1 pc(s)
Circuit diagramm
Circuit diagramm 2447124 Molex 1201080252 Sensor/actuator connector (pre-fab) M12 Socket, Plug 1.00 m No. of pins (RJ): 4 1 pc(s)
Description
Ultra-Lock (M12) Receptacle to RJ-45 Double-Ended Cordset, 4 Poles, Male (Straight) to Female (Straight), 22 AWG, Shielded PUR Cable, 1.0m (3.28') Length
