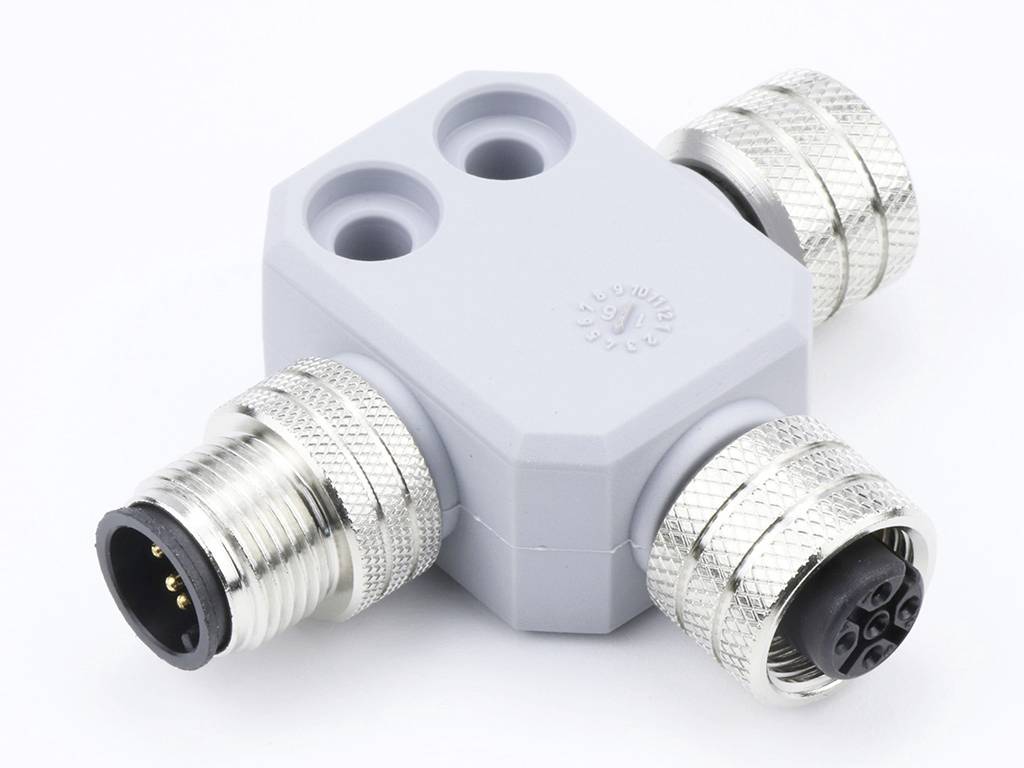

Molex 1300350090 Sensor/actuator adapter M12 Socket, Plug 0.0559 m No. of pins (RJ): 5 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Sensor/actuator adapter
Connector type
Socket
Plug
Connector standard
CANopen-/DeviceNet
Connection side A
Micro-Change (M12)
Connection side B
Micro-Change (M12)
Datasheet (PDF)
Number
Minimum order quantity: 8
Total (€ 40.33 / piece)
€ 44.41
-9 %
€ 322.64
plus VAT.
Highlights & Details
DeviceNet
- DeviceNet Trunk Micro-Change Tee, 5 Poles, Male/Female with Female Drop, Nickel Plated Brass
- This text is machine translated.
Our service for you
Technical specifications
- Length 0.0559 mMaterial - Connector body: PURMaterial - union nut: Nickel-plated brassGroove: SingleSpur line: SocketConnector, trunk line left: Micro-change (M12)Connector, main cable right: Micro-change (M12)Plug connector stub: Micro-change (M12)
- Packaging type
Piece
- Type
Molex WOD Industrial Solution
- Product type
Sensor/actuator adapter
- Connector type
Socket
Plug
- Connector standard
CANopen-/DeviceNet
- Connection side A
Micro-Change (M12)
- Connection side B
Micro-Change (M12)
- No. of pins
5
- Cable length
0.0559 m
- Jacket material
PUR
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Factory colour
Grey
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Contact material
Brass nickel plated
- Contact surface
Brass nickel plated
IP67
- Min. temperature
-20 °C
- Max. temperature
+80 °C
- Manufacturer part #
1300350090
- Industrial packaging
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Engineering Part No
MICT555
- Engineering Series Name
DNet Tees
- Engineering Series No
130035
Documents & Downloads
Datasheet
Datasheet 2447235 Molex 1300350090 Sensor/actuator adapter M12 Socket, Plug 0.0559 m No. of pins (RJ): 5 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2447235 Molex 1300350090 Sensor/actuator adapter M12 Socket, Plug 0.0559 m No. of pins (RJ): 5 1 pc(s) Piece
Circuit diagramm
Circuit diagramm 2447235 Molex 1300350090 Sensor/actuator adapter M12 Socket, Plug 0.0559 m No. of pins (RJ): 5 1 pc(s) Piece
Description
DeviceNet Trunk Micro-Change Tee, 5 Poles, Male/Female with Female Drop, Nickel Plated Brass
