Name: Molex 193240013 Ring terminal + crimp Cross section (max.)=6 mm² Hole Ø=5 mm Warning yellow 1 pc(s) Bag
Brand: Molex
SKU: 2447705
Availability: SoldOut

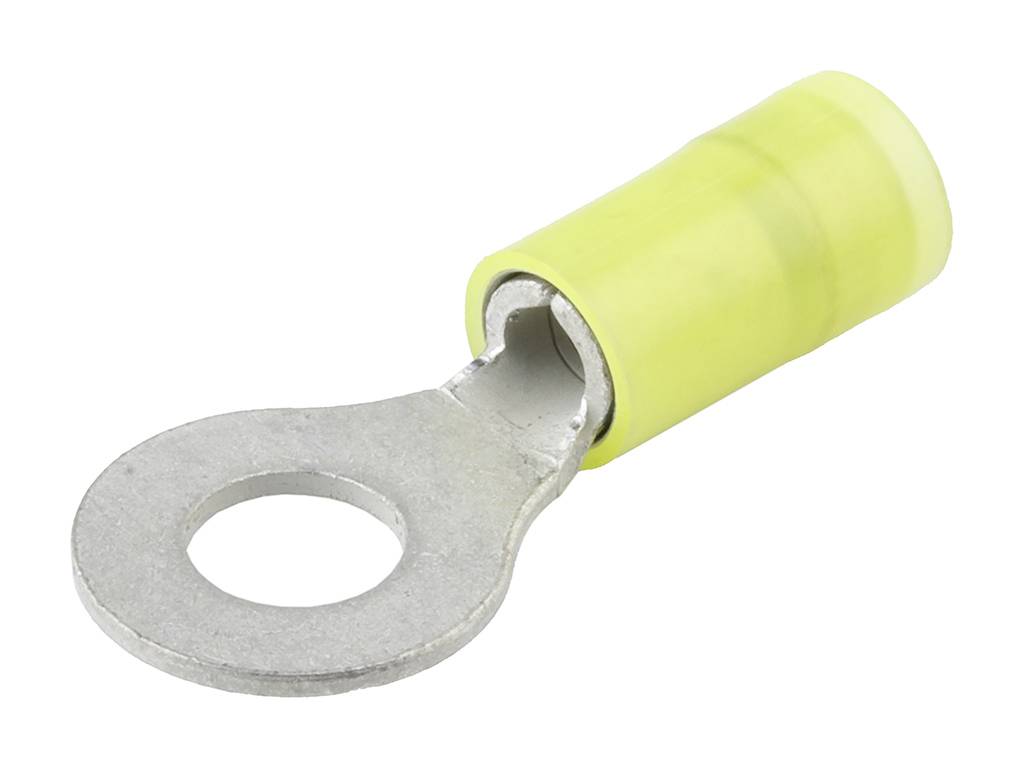

Yellow insulated ring cable lug, suitable for a secure connection of cables to bolts or screws.

Packaging type

Bag

Product type

Ring terminal

Thread size

Hole Ø

5 mm

Content

1 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 0.83 / piece)

€ 0.83

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

RING/SPADE TERMINALS

Avikrimp Metric Ring Terminal for Stud Size 5 (M3), Insulated Barrel
This text is machine translated.

Our service for you

Technical specifications

Please review product datasheet for further information.

Packaging type: Bag

Product type: Ring terminal

Thread size: M6

Hole Ø: 5 mm

Factory colour: Warning yellow

Content: 1 pc(s)

Contact material: Copper alloy tin plated

Manufacturer part #: 193240013

Type: Molex MOL Industrial Solution

max. cross section: 6 mm²

Min. cross section: 2.5 mm²

Weight: 2.238 g

Insulation material: Nylon (NL)

Cross-section range: 2.5 - 6 mm²

RoHS-compliant: Yes

Features: + crimp

Support sleeve: Yes

Engineering Part No: C6-828-M5

Engineering Series Name: METRIC AVIKRIMP

Engineering Series No: 19324

Documents & Downloads

Datasheet

Datasheet 2447705 Molex 193240013 Ring terminal + crimp Cross section (max.)=6 mm² Hole Ø=5 mm Warning yellow 1 pc(s) Bag

User & Safety Instructions

User & Safety Instructions 2447705 Molex 193240013 Ring terminal + crimp Cross section (max.)=6 mm² Hole Ø=5 mm Warning yellow 1 pc(s) Bag

Circuit diagramm

Circuit diagramm 2447705 Molex 193240013 Ring terminal + crimp Cross section (max.)=6 mm² Hole Ø=5 mm Warning yellow 1 pc(s) Bag

Description

Avikrimp Metric Ring Terminal for Stud Size 10 (M5), Yellow Insulated Barrel, Bag

Description

Avikrimp Metric Ring Terminal for Stud Size 10 (M5), Yellow Insulated Barrel, Bag
