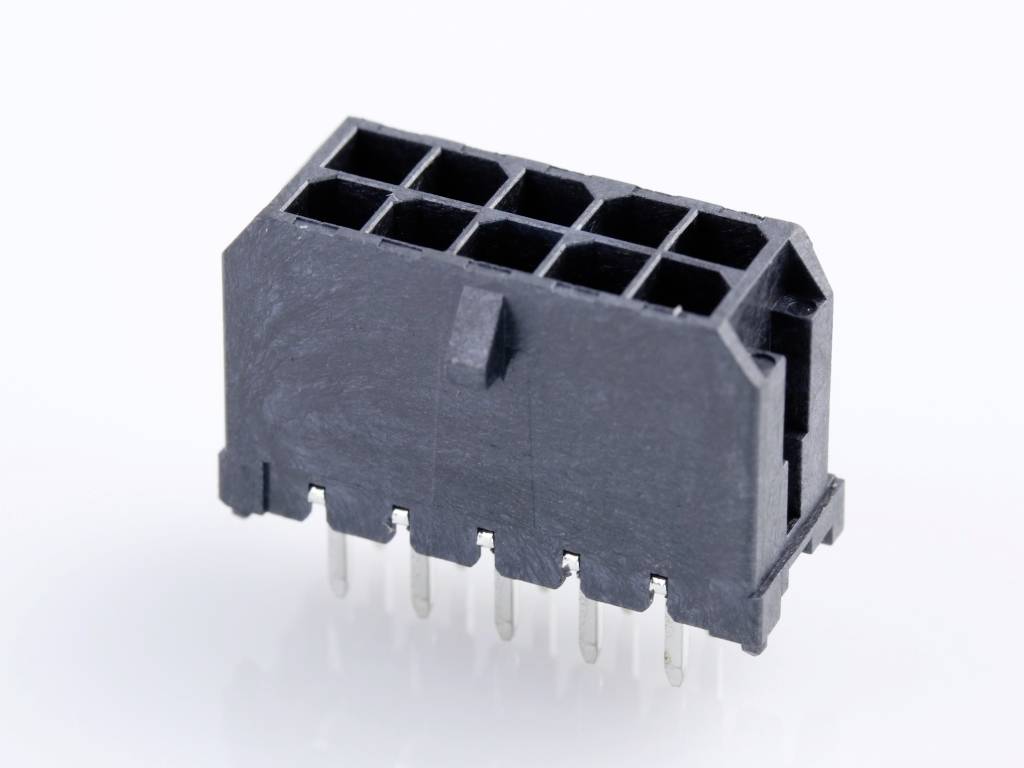

Molex Built-in pin strip (standard) Total number of pins 10 Contact spacing: 3 mm 430451028 1 pc(s) Tray
Product type
Built-in pin strip (standard)
No. of rows
2
CS
3 mm
Total number of pins
10
Packaging type
Tray
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 102
Multiple: 102
Total (€ 2.79 / piece)
€ 2.79
incl. VAT
14-day return policy included
Highlights & Details
Micro Fit
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 10
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
2
- Features
+ locking mechanism
- CS
3 mm
- Total number of pins
10
- Nominal current
8.5 A
- Nominal current - rounded value
8.5 A
- Content
1 pc(s)
- Connection
Soldering
- Connector coating thickness
0.381 µm
- Actuation direction
Perpendicular (to the PCB)
- Case material
High temperature resistant thermoplastic
- Manufacturer part #
430451028
- Factory colour
Black
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Gold
- Nominal voltage
600 V
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
43045-1028
- Engineering Series Name
MICRO-FIT HDR ASSY
- Engineering Series No
43045
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2448637 Molex Built-in pin strip (standard) Total number of pins 10 Contact spacing: 3 mm 430451028 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2448637 Molex Built-in pin strip (standard) Total number of pins 10 Contact spacing: 3 mm 430451028 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2448637 Molex Built-in pin strip (standard) Total number of pins 10 Contact spacing: 3 mm 430451028 1 pc(s) Tray
Description
Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 10 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
