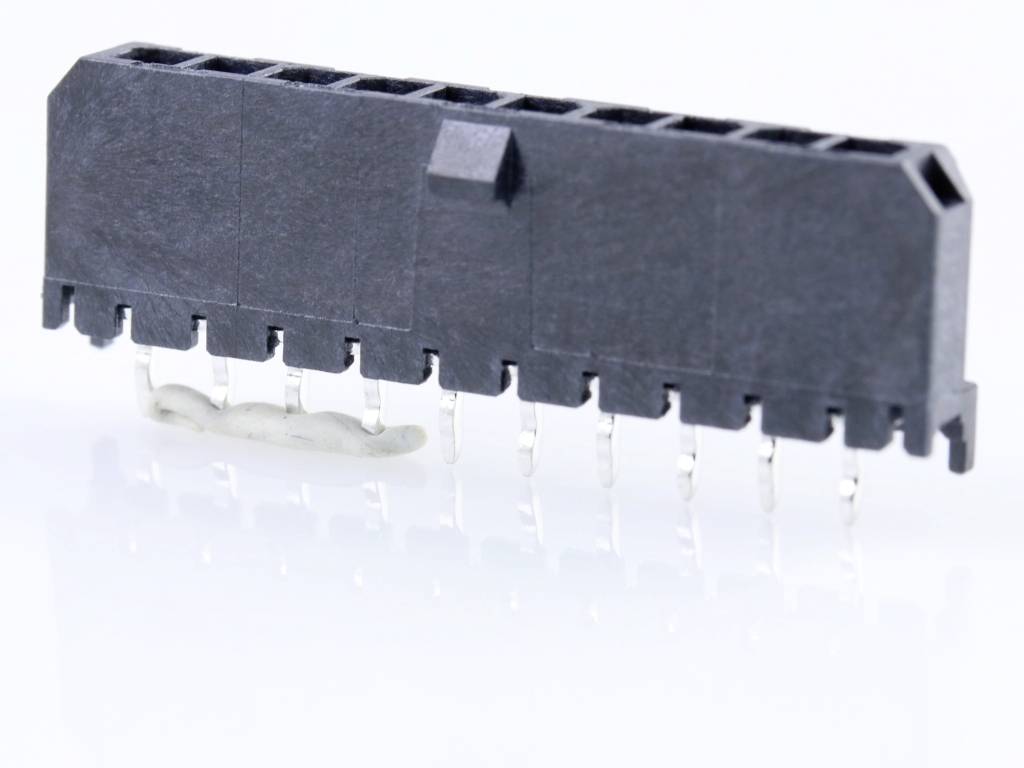

Molex Built-in pin strip (standard) Total number of pins 10 Contact spacing: 3 mm 436501016 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
1
CS
3 mm
Total number of pins
10
Packaging type
Tray
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
918
-
€ 2.51
30
7% = € 0.18
€ 2.33
50
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 238.68
Number
Minimum order quantity: 918
Total (€ 2.25 / piece)
€ 2,065.50
plus VAT.
14-day return policy included
Highlights & Details
Micro Fit
- Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 10 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
- This text is machine translated.
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
1
- CS
3 mm
- Total number of pins
10
- Nominal current
8.5 A
- Nominal current - rounded value
8.5 A
- Content
1 pc(s)
- Connection
Print
- Coating thickness (PCB side)
2.54 µm
- Connector coating thickness
0.381 µm
- Case material
High temperature resistant thermoplastic
- Manufacturer part #
436501016
- Factory colour
Black
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Gold
- Nominal voltage
600 V
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
43650-1016
- Engineering Series Name
MICROFIT SR HDR
- Engineering Series No
43650
Documents & Downloads
Datasheet
Datasheet 2448792 Molex Built-in pin strip (standard) Total number of pins 10 Contact spacing: 3 mm 436501016 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2448792 Molex Built-in pin strip (standard) Total number of pins 10 Contact spacing: 3 mm 436501016 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2448792 Molex Built-in pin strip (standard) Total number of pins 10 Contact spacing: 3 mm 436501016 1 pc(s) Tray
Description
Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 10 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
