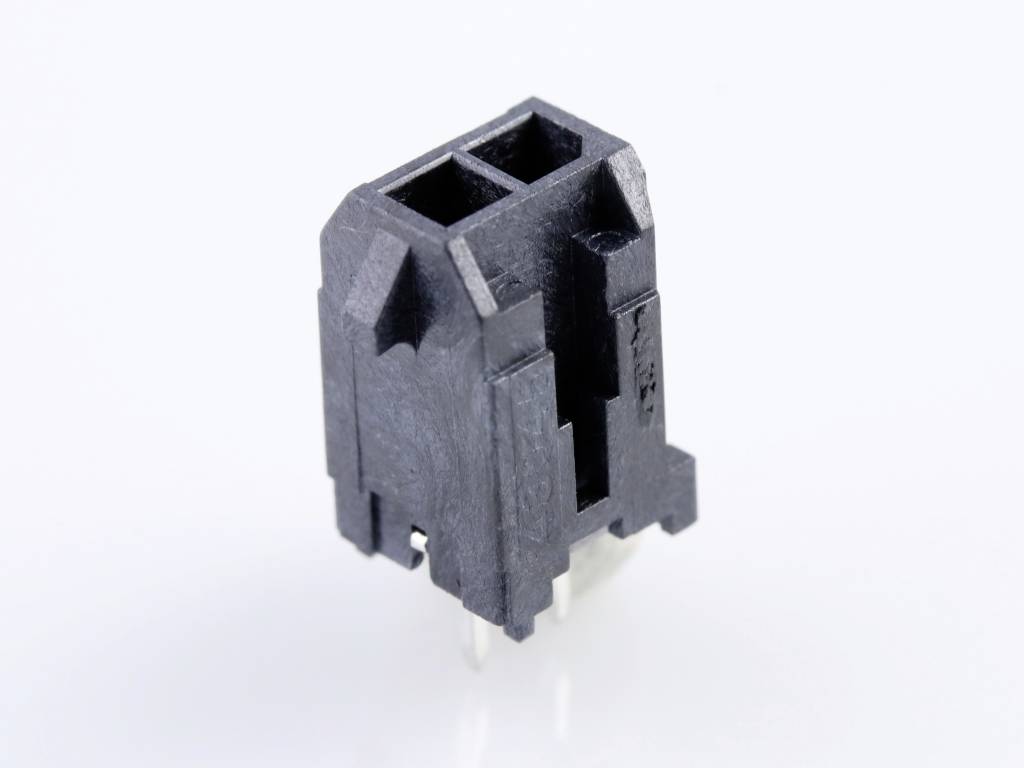

Molex Built-in pin strip (standard) Total number of pins 2 Contact spacing: 3 mm 430450227 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
2
CS
3 mm
Total number of pins
2
Packaging type
Tray
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
264
-
€ 0.76
1200
7% = € 0.05
€ 0.71
2000
11% = € 0.08
€ 0.68
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 264
Multiple: 264
Total (€ 0.76 / piece)
€ 0.77
€ 200.64
plus VAT.
14-day return policy included
Highlights & Details
Micro Fit
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 2
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
2
- Features
+ locking mechanism
- CS
3 mm
- Pins per row
1
- Total number of pins
2
- Nominal current
8.5 A
- Nominal current - rounded value
8.5 A
- Content
1 pc(s)
- Connection
Soldering
- Connection angle
90°
- Connector coating thickness
0.254 µm
- Actuation direction
Perpendicular (to the PCB)
- Case material
High temperature resistant thermoplastic
- Manufacturer part #
430450227
- Factory colour
Black
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
600 V
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
43045-0227
- Engineering Series Name
MICRO-FIT HDR ASSY
- Engineering Series No
43045
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2448572 Molex Built-in pin strip (standard) Total number of pins 2 Contact spacing: 3 mm 430450227 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2448572 Molex Built-in pin strip (standard) Total number of pins 2 Contact spacing: 3 mm 430450227 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2448572 Molex Built-in pin strip (standard) Total number of pins 2 Contact spacing: 3 mm 430450227 1 pc(s) Tray
Description
Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 2 Circuits, with PCB Polarizing Peg, Tin, Glow-Wire Capable, Black
