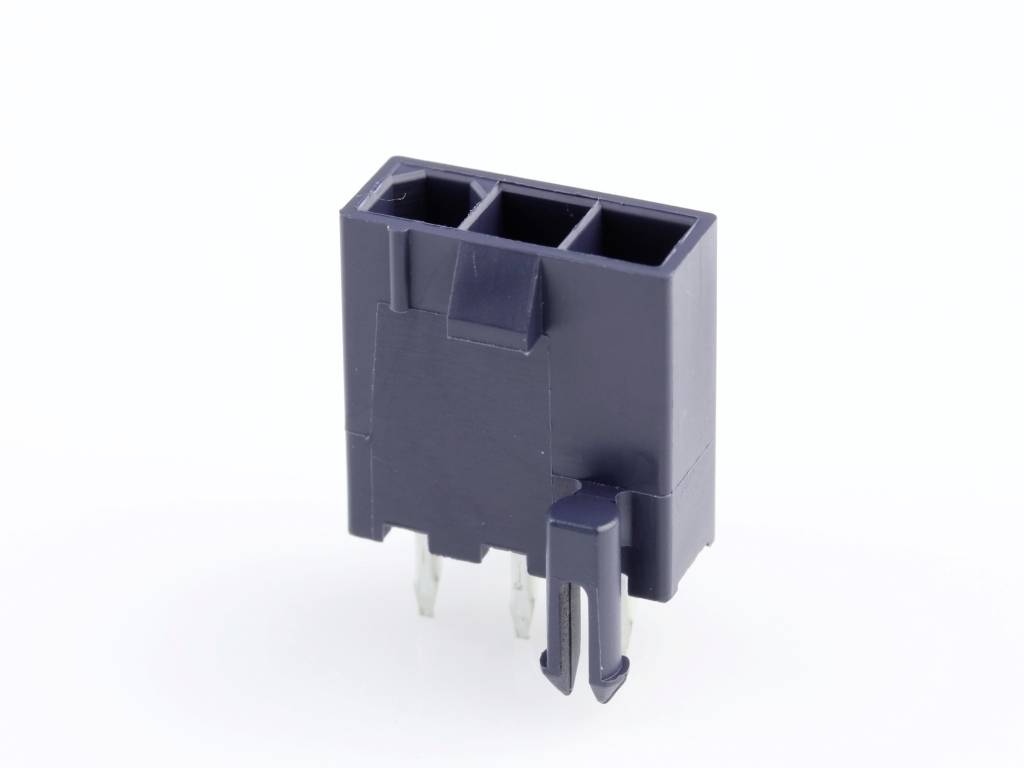

Molex Built-in pin strip (standard) Total number of pins 3 Contact spacing: 4.2 mm 1726470103 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
1
CS
4.2 mm
Total number of pins
3
Packaging type
Tray
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
138
-
€ 1.08
10
7% = € 0.08
€ 1.00
25
11% = € 0.12
€ 0.96
Volume discounts vary depending on the seller
You save € 16.56
Number
Minimum order quantity: 138
Multiple: 138
Total (€ 0.96 / piece)
€ 132.48
plus VAT.
14-day return policy included
Highlights & Details
MINI FIT
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 3
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Features
+ locking mechanism
- CS
4.2 mm
- Pins per row
3
- Total number of pins
3
- Nominal current
9 A
- Nominal current - rounded value
9 A
- Content
1 pc(s)
- Connection
Soldering
- Coating thickness (PCB side)
2.54 µm
- Connector coating thickness
2.54 µm
- Case material
Nylon (NL)
- Manufacturer part #
1726470103
- Factory colour
Black
- Insulation material
Nylon 66
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
600 V DC/AC
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+80 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
172647-0103
- Engineering Series Name
MiniFit Jr Vert Hdr
- Engineering Series No
172647
Documents & Downloads
Datasheet
Datasheet 2447472 Molex Built-in pin strip (standard) Total number of pins 3 Contact spacing: 4.2 mm 1726470103 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2447472 Molex Built-in pin strip (standard) Total number of pins 3 Contact spacing: 4.2 mm 1726470103 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2447472 Molex Built-in pin strip (standard) Total number of pins 3 Contact spacing: 4.2 mm 1726470103 1 pc(s) Tray
Description
Mini-Fit Jr. Header, Single Row, Vertical, 3 Circuits, PA Polyamide Nylon 6/6, 94V-2, Matte Tin (Sn) Plating, Glow-Wire Capable, Black
