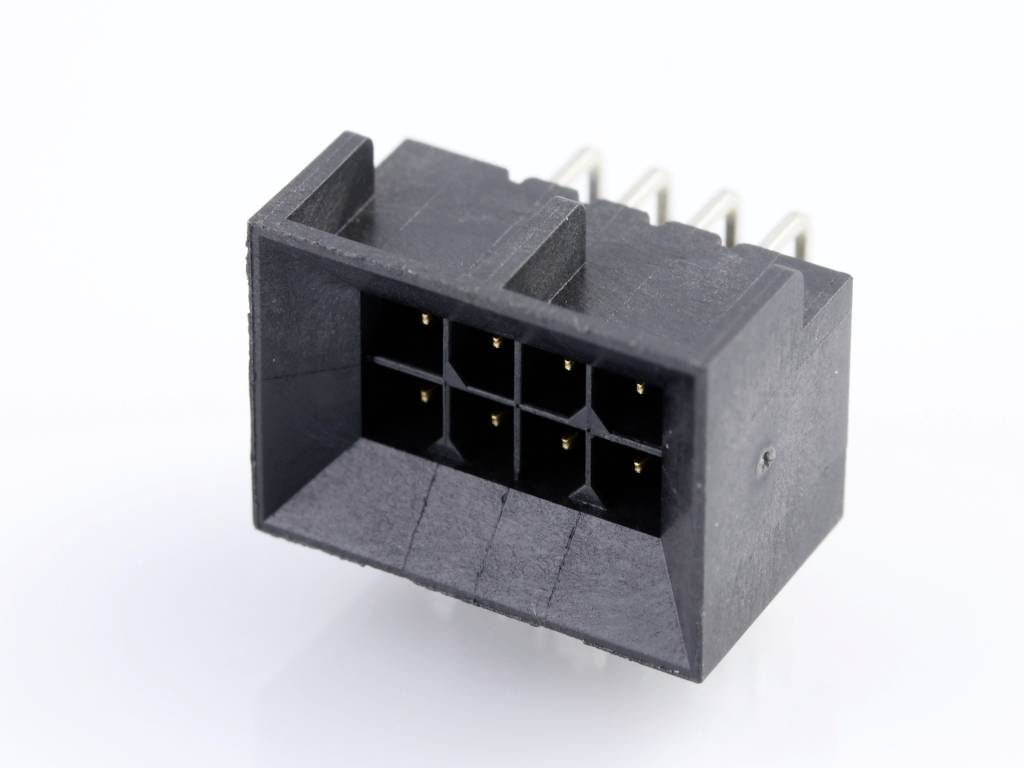

Molex Built-in pin strip (standard) Total number of pins 8 Contact spacing: 3 mm 444280801 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
2
CS
3 mm
Total number of pins
8
Packaging type
Tray
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
102
-
€ 2.34
300
7% = € 0.17
€ 2.17
500
10% = € 0.24
€ 2.10
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 102
Multiple: 102
Total (€ 2.34 / piece)
€ 238.68
plus VAT.
14-day return policy included
Highlights & Details
Micro Fit
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 8
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
2
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
3 mm
- Pins per row
4
- Total number of pins
8
- Nominal current
8.5 A
- Nominal current - rounded value
8.5 A
- Content
1 pc(s)
- Connection
Soldering
- Connection angle
90°
- Coating thickness (PCB side)
5.08 µm
- Connector coating thickness
5.08 µm
- Case material
High temperature resistant thermoplastic
- Manufacturer part #
444280801
- Factory colour
Black
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
600 V
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
44428-0801
- Engineering Series Name
R/A BMI HDR
- Engineering Series No
44428
Documents & Downloads
Datasheet
Datasheet 2448814 Molex Built-in pin strip (standard) Total number of pins 8 Contact spacing: 3 mm 444280801 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2448814 Molex Built-in pin strip (standard) Total number of pins 8 Contact spacing: 3 mm 444280801 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2448814 Molex Built-in pin strip (standard) Total number of pins 8 Contact spacing: 3 mm 444280801 1 pc(s) Tray
Description
Micro-Fit BMI Header, Surface Mount Compatible, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 8 Circuits, Tin (Sn) Plating
