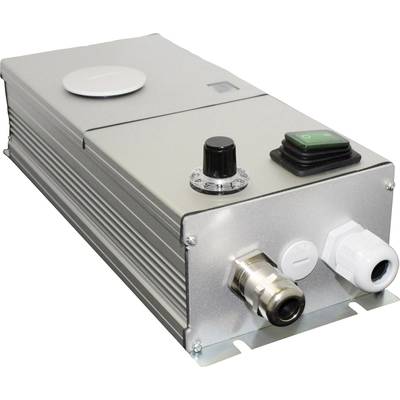

MSF-Vathauer Antriebstechnik Frequency inverter Vec 370/2-1-54-G1 0.37 kW 1-phase 230 V
EAN:
Part number:
Item no:
Number
Total (€ 685.00 / piece)
€ 685.00
incl. VAT
14-day return policy included
Highlights & Details
Frequency converter vector 54/1-phase
- Direct mounting on machinery and equipment
- Integrated power and engine filter
- Integrated I/0-Module and RS232 interface
- Protection class IP54
- Available from 0.09 kW to 2.2 kW
- Built-in potentiometer and power switch
- Quick and easy installation and connection
Technical specifications
- Max. Motor power 0.37 kW
- Mains frequency: 50 Hz
- Emc Filter Class: C3
- Approvals: CE
- Motor temperature monitoring: PTC/PTO
- Metric cable gland: power and motor connection
- Aluminium casing
- Ambient temperature: 0-40°C
- Mains/motor reactor: internal.
- Input voltage
230 V
- Product type
Frequency inverter
- Output rating (max.)
0.37 kW
- Max. frequency
400 Hz
- Min. frequency
0 Hz
- Network
1-phase
- Frequency range
0 Hz - 400 Hz
- Nominal current
2.2 A
- Height
90 mm
- Width
112 mm
IP54
- Type
Vec 370/2-1-54-G1
- Filter class
C3
- Dim
(L x W x H) 312 x 112 x 90 mm
- Manufacturer part #
Vec 370/2-1-54-G1
- Filter class/protection level
C3
- Length
312 mm
- Output voltage
3 x 230Vac
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1220057 MSF-Vathauer Antriebstechnik Frequency inverter Vec 370/2-1-54-G1 0.37 kW 1-phase 230 V
Conformity certificate
Conformity certificate 1220057 MSF-Vathauer Antriebstechnik Frequency inverter Vec 370/2-1-54-G1 0.37 kW 1-phase 230 V
Description
The Vector 54/1-phase is a frequency converter with integrated vector control for control of three-phase motors.
The device is compact and can be mounted directly on the machine.
The closed design is the vector 54/1-phase ever-increasing decentralisation tasks of drive components.
Functions:
The parameters can be via an external user interface or conveniently with a parameterization software can be set.
The high degree of protection IP54 allows use in harsh environments.
Applications:
Conveyor technology, intralogistics, winding drives, packaging machines, filling plants.
This text is machine translated.
The device is compact and can be mounted directly on the machine.
The closed design is the vector 54/1-phase ever-increasing decentralisation tasks of drive components.
Functions:
The parameters can be via an external user interface or conveniently with a parameterization software can be set.
The high degree of protection IP54 allows use in harsh environments.
Applications:
Conveyor technology, intralogistics, winding drives, packaging machines, filling plants.
This text is machine translated.
