Mueller Electric C4AD81M010 Sensor/actuator connector M12 Plug, straight, Socket, right angle 10 m No. of pins (RJ): 4 1
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Plug, straight
Socket, right angle
Connector standard
Sensor connector
Connection side A
Plug, straight
Connection side B
Socket, right angle
Datasheet (PDF)
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
Only 8 Piece(s) available
Highlights & Details

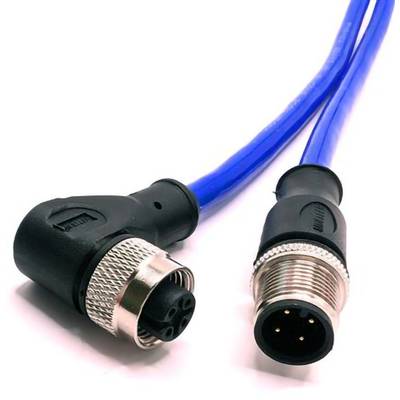

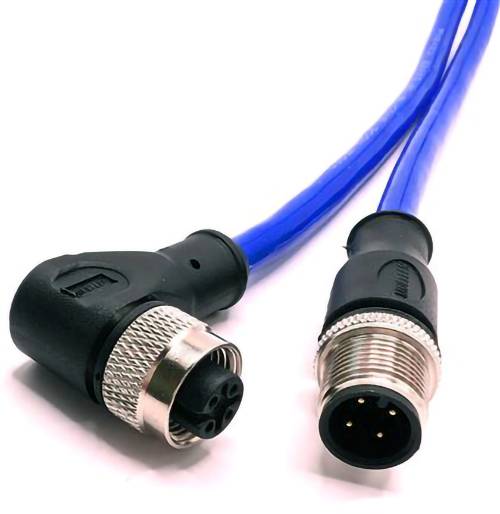

C4AD81M010 Mueller Blue-Flex™ M12 connection cable, 4-pin, straight plug to right angle socket, silicone, 10 m
- Mueller M12 Blue-FlexTM Cable - 4-wire, 22 AWG, unshielded, silicone outer sheath and inner conductor sheath for maximum flexibility
- 4-pin
- Straight plug to right-angled socket
- FT2 flame tester
Technical specifications
- Type
C4AD81M010
- Product type
Sensor/actuator connector
- Connector type
Plug, straight
Socket, right angle
- Connector standard
Sensor connector
- Connection side A
Plug, straight
- Connection side B
Socket, right angle
- No. of pins
4
- Cable length
10 m
- Nominal voltage
250 V DC/AC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.34 mm²
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
M12 socket
M12 plug
- Factory colour
Blue
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Cable colour
Blue
- Coding
A
- Contact material
Brass gold plated
- Contact surface
Gold
- max. cross section
0.34 mm²
IP68
- Features
A-coded
- Min. temperature
-40 °C
- Max. temperature
150 °C
- Manufacturer part #
C4AD81M010
- Industrial packaging
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3527580 Mueller Electric C4AD81M010 Sensor/actuator connector M12 Plug, straight, Socket, right angle 10 m No. of pins (RJ): 4 1
User & Safety Instructions
User & Safety Instructions 3527580 Mueller Electric C4AD81M010 Sensor/actuator connector M12 Plug, straight, Socket, right angle 10 m No. of pins (RJ): 4 1
Description
Mueller Blue-Flex™ M12 connection cable, 4-pin, straight plug to right angle socket, silicone, 10 m. bending strength 20 million cycles. Torsion strength 20 million cycles.
This text is machine translated.
This text is machine translated.
Scope of delivery
- C4AD81M010
