Mueller Electric C4C81M005 Sensor/actuator connector M12 Socket, straight 5 m No. of pins (RJ): 4 1 pc(s)
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Socket, straight
Connector standard
Sensor connector
Connection side A
Socket, straight
Connection side B
Cable, open end
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.32
€ 28.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
Only 3 Piece(s) available
Highlights & Details

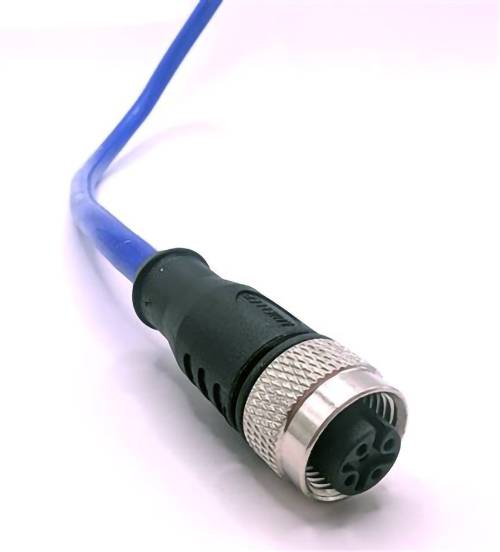

C4C81M005 Mueller Blue-Flex™, M12 cable set, 4-pin, straight socket on open end, silicone, 5 m
- Mueller M12 Blue-FlexTM Cable - 4-wire, 22 AWG, unshielded, silicone outer sheath and inner conductor sheath for maximum flexibility
- 4-pin
- Straight socket on open end.
- FT2 flame tester
Technical specifications
- Type
C4C81M005
- Product type
Sensor/actuator connector
- Connector type
Socket, straight
- Connector standard
Sensor connector
- Connection side A
Socket, straight
- Connection side B
Cable, open end
- No. of pins
4
- Cable length
5 m
- Nominal voltage
250 V DC/AC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.34 mm²
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
M12 socket
Open end cable
- Factory colour
Blue
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Cable colour
Blue
- Coding
A
- Contact material
Brass gold plated
- Contact surface
Gold
- max. cross section
0.34 mm²
IP68
- Features
A-coded
- Min. temperature
-40 °C
- Max. temperature
150 °C
- Manufacturer part #
C4C81M005
- Industrial packaging
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3527576 Mueller Electric C4C81M005 Sensor/actuator connector M12 Socket, straight 5 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3527576 Mueller Electric C4C81M005 Sensor/actuator connector M12 Socket, straight 5 m No. of pins (RJ): 4 1 pc(s)
Description
Mueller Blue-Flex™, M12 cable set, straight socket on open end, 4-pin position, silicone-insulated conductors, different lengths available. Bending strength 20 million cycles. Torsion strength 20 million cycles.
