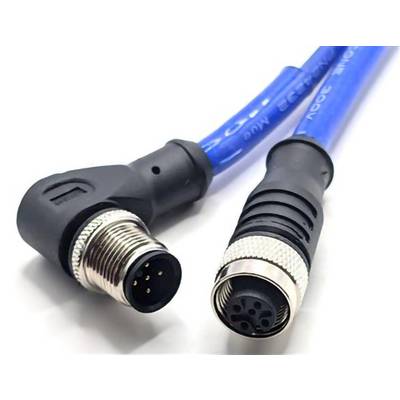

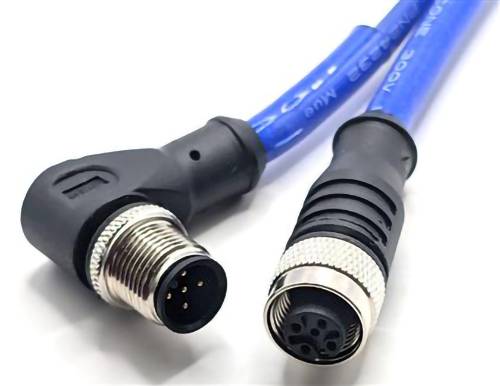

Mueller Electric C5BC82M010 Sensor/actuator connector M12 Plug, right angle, Socket, straight 10 m No. of pins (RJ): 5 1
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Plug, right angle
Socket, straight
Connector standard
Sensor connector
Connection side A
Plug, right angle
Connection side B
Socket, straight
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
Only 3 Piece(s) available
Highlights & Details
C5BC82M010 Mueller Blue-Flex™, M12 cable set, 5-pin, right angle plug to straight socket, silicone, 10 m
- Mueller M12 Blue-FlexTM Cable - 4-wire, 22 AWG, unshielded, silicone outer sheath and inner conductor for maximum flexibility
- 5-pin
- Right-angle plug for straight socket
- FT2 flame tester
Technical specifications
- Type
C5BC82M010
- Product type
Sensor/actuator connector
- Connector type
Plug, right angle
Socket, straight
- Connector standard
Sensor connector
- Connection side A
Plug, right angle
- Connection side B
Socket, straight
- No. of pins
5
- Cable length
10 m
- Nominal voltage
60 V DC/AC
- Nominal current
4 mA
- Nominal current - rounded value
4 mA
- Connector cross-section (max.)
0.34 mm²
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
M12 socket
M12 plug
- Factory colour
Blue
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Cable colour
Blue
- Coding
A
- Contact material
Brass gold plated
- Contact surface
Gold
- max. cross section
0.34 mm²
IP68
- Features
A-coded
- Min. temperature
-40 °C
- Max. temperature
150 °C
- Manufacturer part #
C5BC82M010
- Industrial packaging
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3527598 Mueller Electric C5BC82M010 Sensor/actuator connector M12 Plug, right angle, Socket, straight 10 m No. of pins (RJ): 5 1
User & Safety Instructions
User & Safety Instructions 3527598 Mueller Electric C5BC82M010 Sensor/actuator connector M12 Plug, right angle, Socket, straight 10 m No. of pins (RJ): 5 1
Description
Mueller Blue-Flex™, M12 cable set, right angle plug to straight socket, 5-pin position, silicone-insulated leads, different lengths available. Bending strength 20 million cycles. Torsion strength 20 million cycles.
This text is machine translated.
This text is machine translated.
Scope of delivery
- C5BC82M010
