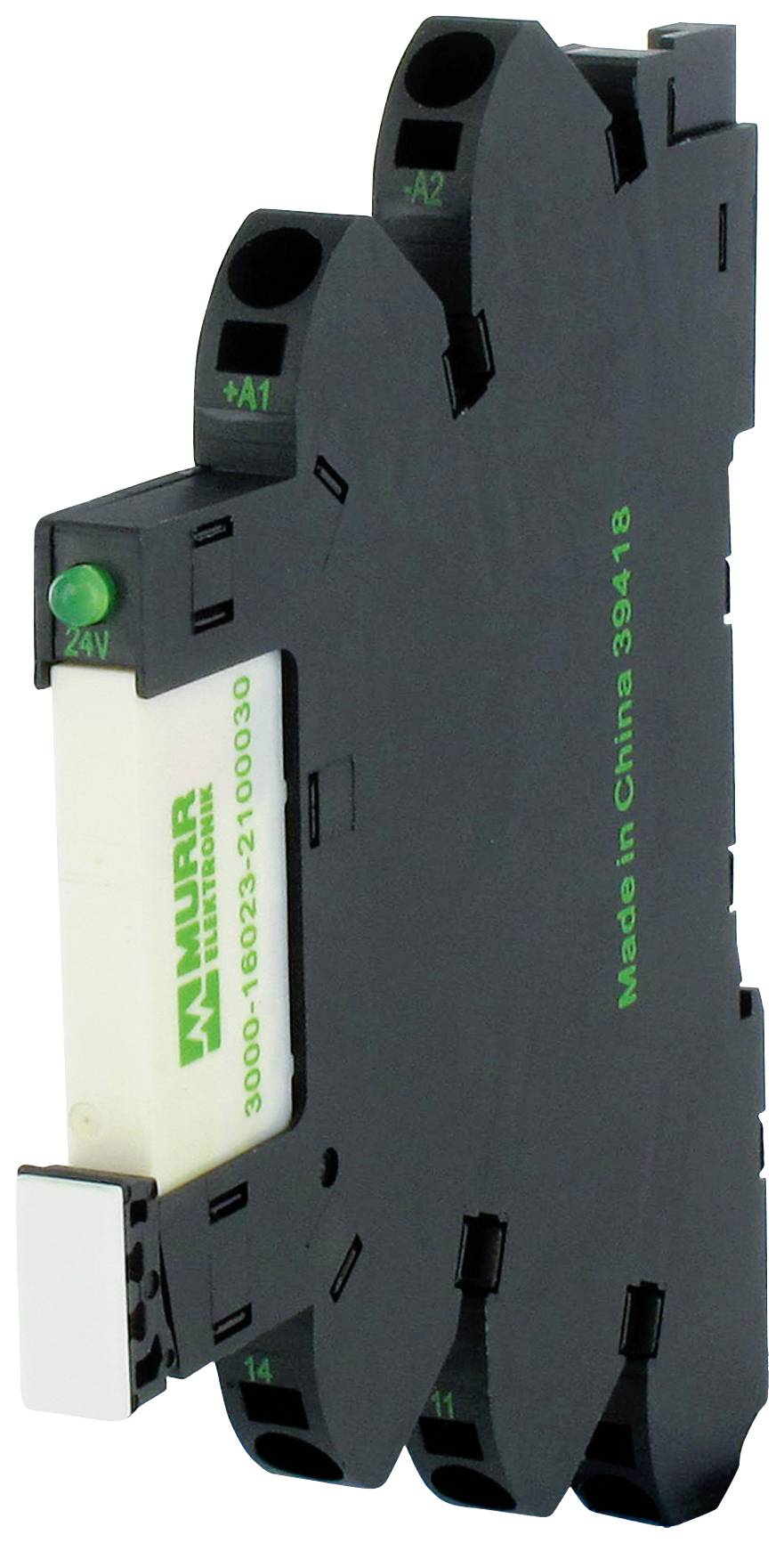

A slim, black electronic relay module with green 'MURR' lettering, a green LED, and multiple connection terminals for mounting on a DIN rail.

A slim, black electronic relay module with green 'MURR' lettering, a green LED, and multiple connection terminals for mounting on a DIN rail.

Product type

GPI module

No. of relay outputs

1

Type

3000-16013-3100040

Operating voltage

24 V DC/AC

Height

93 mm

Datasheet (PDF)

Murrelektronik

34 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 21.99 / piece)

€ 21.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Response/drop/bounce time: 8/4/- ms
Contact material: AG Sn O2, gold-plated
Life span mechanical/electrical: 10 000 000 switching cycles; (NO) 30 000; (NC) 10 000, load-dependant
Minimum load current 10 mA
Test insulation voltage 250 V.
Switching frequency: Max. 10 Hz
Switching capacity (voltage-dependant): Max. 1500 VA/180 W.
Max. switching voltage 250 V/AC/30 V/DC
Switching current per output: Max. 6 A
Protection class: IP20
Temperature range: -25...+60 °C.

Product type: GPI module

Type: 3000-16013-3100040

Operating voltage: 24 V DC/AC

Height: 93 mm

Length: 75.6 mm

Width: 6.2 mm

No. of relay outputs: 1

Dim: (L x W x H) 75.6 x 6.2 x 93 mm

Control LEDs: Yes

Manufacturer part #: 3000-16013-3100040

Fitting type (details): Can be snapped onto mounting rail

Status LEDs: 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2310244 Murrelektronik 3000-16013-3100040 3000-16013-3100040 GPI module No. of relay outputs: 1

User & Safety Instructions

User & Safety Instructions 2310244 Murrelektronik 3000-16013-3100040 3000-16013-3100040 GPI module No. of relay outputs: 1
