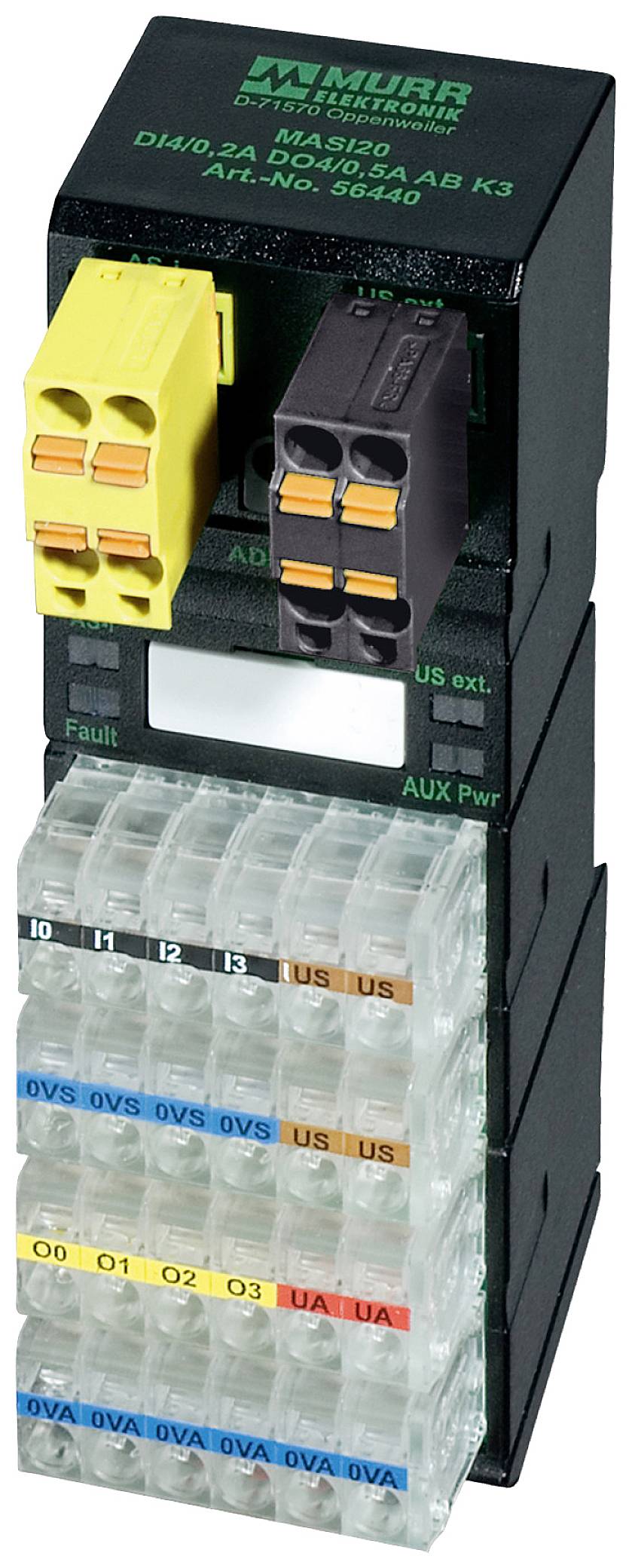

Electronic module with connectors, buttons and LED indicators. Yellow and black marked terminals, multiple numbered ports.

Electronic module with connectors, buttons and LED indicators. Yellow and black marked terminals, multiple numbered ports.

Product type

IO module

Type

56440

Operating voltage

26.50 V

31.60 V

Operating voltage

V/DC V DC

Height

114 mm

Datasheet (PDF)

Murrelektronik

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 249.99 / piece)

€ 249.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Supply voltage24 V DC (18...30.2 V DC) EN 61131-2 through additional feed, safely separated from theInput supplySwitching current per output max. 0.5 A (short-circuit and overload-proof)Total current max. 2 ASwitch-off time in case of short circuitapprox. 20 msBus voltage (AS-Interface) 26.5...31.6 V DCTotal current (AS-Interface) max. 300 mAAddressing via integrated addressing socket or masterAddress range 1...62 (1..

Product type: IO module

Type: 56440

Operating voltage: 26.50 V
31.60 V

Operating voltage: V/DC V DC

Height: 114 mm

Length: 32 mm

Width: 37 mm

No. of digital inputs: 4

No. of digital outputs: 4

Dim: (L x W x H) 32 x 37 x 114 mm

Manufacturer part #: 56440

Fitting type (details): DIN rail (EN 60715)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2527607 Murrelektronik 56440 56440 IO module No. of digital outputs: 4 No. of digital inputs: 4

User & Safety Instructions

User & Safety Instructions 2527607 Murrelektronik 56440 56440 IO module No. of digital outputs: 4 No. of digital inputs: 4

Description

MASI20 I/O module K3 4 digital inputs. 4 digital passive safe outputs MASI20 DI4/0.2A DO4/0.5A FROM K3

This text is machine translated.

Description

MASI20 I/O module K3 4 digital inputs. 4 digital passive safe outputs MASI20 DI4/0.2A DO4/0.5A FROM K3

This text is machine translated.
