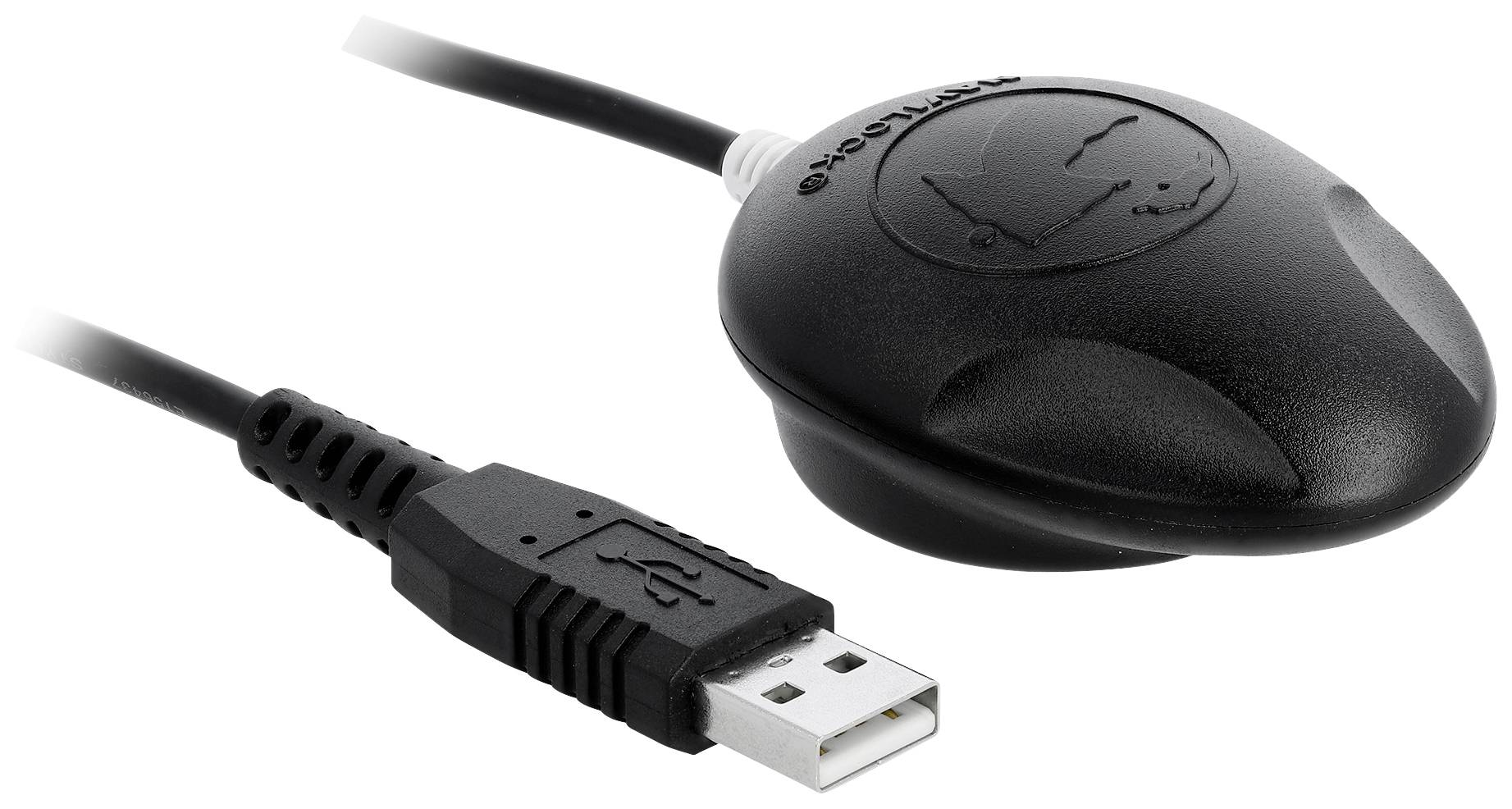

Navilock NL-82002U GPS receiver Black 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 193.27 / piece)
€ 193.27
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Navilock NL-82002U USB 2.0 multi GNSS UDR receiver u-blox NEO-M8U 1.5 m
- U-blox NEO-M8U chip set
- USB 2.0 Type-A connector
- Protection class: IPX6
- Auto Baud rate up to 115200 bps
- Processes signals from up to 72 satellites simultaneously
Technical specifications
- Product type
GPS receiver
- Interfaces
USB type A
USB A (USB 2.0)
- GPS features
Splashproof casing
- Factory colour
Black
- Height
22 mm
- Width
45 mm
- Depth
65 mm
- Weight
0.180
- Dim
(W x H x D) 45 x 22 x 65 mm
- Cable design
Round
- Version
Cable
- Keyboard layout
English, QWERTY
- Cable use
C13/C14 appliances
- Product type description
Zubehör PDA
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3078383 Navilock NL-82002U GPS receiver Black 1 pc(s)
Description
The USB 2.0 Navilock multi-GNSS UDR receiver with u-blox NEO-M8U chipset has a built-in active antenna and highly sensitive sensors, such as a 3D accelerometer and a 3D gyroscope. In conjunction with a notebook, a reliable position determination is possible even when the GNSS signal is interrupted.
This text is machine translated.
This text is machine translated.
Features
- USB 2.0 type A connector
- U-blox NEO-M8U chipset
- Frequency:GPS L1, 1575.4200 MHz
- GLONASS L1, 1602 (k x 0.5625) MHz
- BEIDOU COMPASS B1, 1561.0980 MHZ
- Galileo: E1, 1575.4200 MHz
- QZSS L1, 1575.4200 MHz
- Supports AssistNow online/offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
- Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
- Supports UDR from NMEA 4.1
- Auto Baud rate up to 115200 bps
- Update rate: up to 20 Hz
- Max. Sensitivity -160 dBm
- IPX6 protection class
- Magnetic, non-slip bottom panel
- LED display for GPS status
- Operating temperature: -20 °C ~ 60 °C
- Cold start in approx. 26 seconds
- Hot start in about 1 second
- Positional accuracy: 2.5 m CEP (circular error probable) and 2 m CEP with SBAS
- Cable length approx. 1.5 m
Scope of delivery
- USB 2.0 receiver
- Navilock support CD incl. Driver and instructions for use
Hints
The manual contains essential assembly and commissioning conditions for the successful operation of this GNSS receiver!
System requirements
- Windows Vista/7/8/8.1/10/11, Linux Core 2.6
