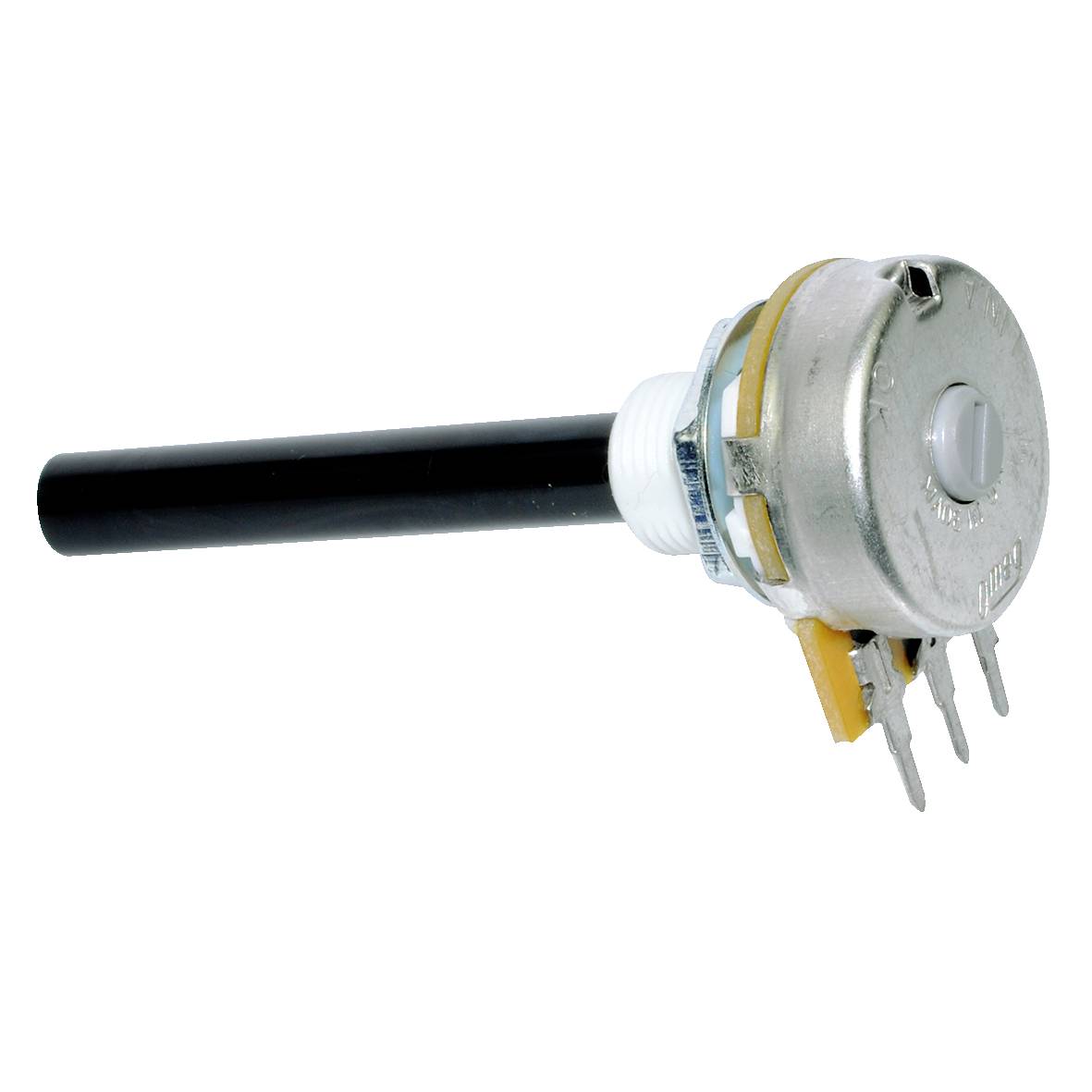

OMEG PC20BU100KAF1CP7 Carbon film pot 0.4 W 100 kΩ 1 pc(s)
Part number:
Item no:
Product type
Carbon film pot
Resistance
100 kΩ
Resistance characteristic
linear
Power rating
0.4 W
Axle type
Plastic
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
Highlights & Details
OMEG potentiometer 21/6 mono linear 100K
- 100 kΩ
- linear
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series PC20BU
- Design: Horizontal
- Diameter, base 20.4 mm
- Length, shaft 50 mm
- Diameter, Shaft 6 mm
- Axis: Plastic
- Resistance value 100 kOhm
- Resistance unit: KOhm
- Resistance value_1: 100
- Resistance tolerance: ±20 %
- Resistance curve: Linear
- Rated output: 0.4 W
- Max voltage 500 V
- Insulation voltage 1,000 V
- Insulation resistance 4,000 MOhm
- Lifetime: 20,000 cycles
- Mechanical rotation angle 300 °
- Electrical angle of rotation 267 °
- Stop strength 80 Ncm
- Torque 1.5 Ncm
- Product type
Carbon film pot
- Resistance
100 kΩ
- Resistance characteristic
linear
- Power rating
0.4 W
- Cut-off voltage
500 V
- Mechanical angle
300°
- Electrical angle
267°
- Torque (max.)
1.5 Ncm
- Impact tolerance
80 Ncm
- Axle length
50 mm
- Axle type
Plastic
- Axle Ø
6 mm
- CS
5 mm
- (Ø)
20.4 mm
- Tolerance ±
20 %
- Insulation resistance
4,000 MΩ
- Content
1 pc(s)
- Type
PC20BU100KAF1CP7
- Dim
(Ø) 20.4 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3523534 OMEG PC20BU100KAF1CP7 Carbon film pot 0.4 W 100 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3523534 OMEG PC20BU100KAF1CP7 Carbon film pot 0.4 W 100 kΩ 1 pc(s)
Description
OMEG carbon film potentiometer
This text is machine translated.
This text is machine translated.
Features
- Carbon film potentiometer
- Plastic axle
- Housing diameter 20.4 mm
Scope of delivery
- PC20BU100KAF1CP7.
