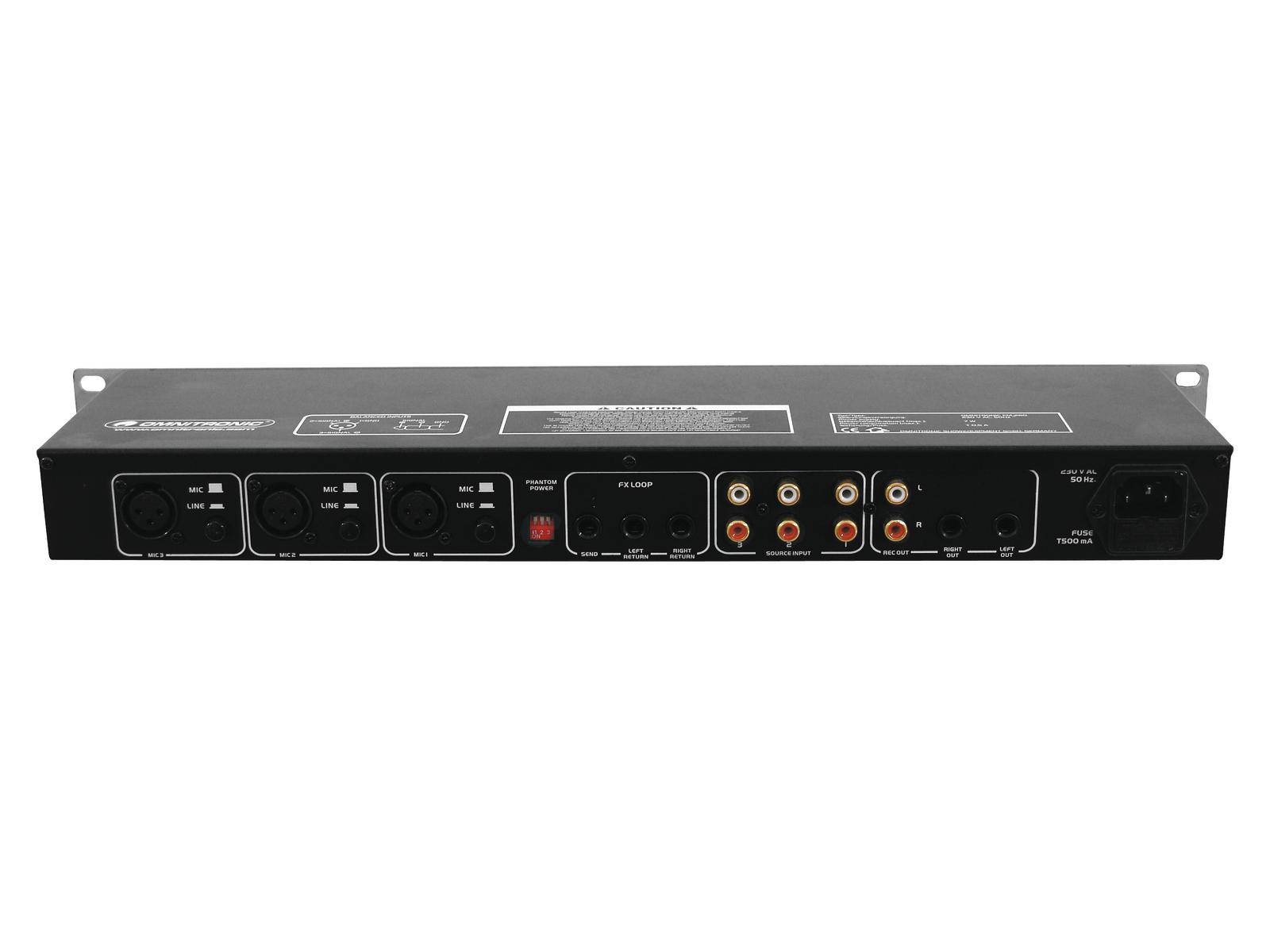

Omnitronic EM-260 Microphone mixer
EAN:
Part number:
Item no:
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Highlights & Details
6-channel microphone-Line Mixer
- 6 inputs (3 x Mic/Line, 3 x Line) to mix on 1 stereo output
- Ideal for example for karaoke microphones with CDs, which are to be mixed
- 3 mono input channels microphone/line (XLR, balanced), switchable
- 3 stereo line input channels (RCA)
- Clip-LED for each microphone channel
- Each microphone input with switchable phantom power (12 V)
- FX Send/Return With FX level control
- Stereo master output (6.3 mm jack) with 2-band equalizer (bass and treble) and volume control
- Stereo Record output (Cinch)
- Rack installation, 1 HE
Technical specifications
- Power supply: 115/230 V AC 50/60 Hz ~
- Total connection value: 35 W
- Inputs MIC1-3: XLR
- Max. Input Level: -14 dB
- Inputs LINE 1-3: RCA stereo
- Max. Input level: 24 dB
- RETURN: 6.3-mm stereo jack
- Outputs:
- MASTER: 6.3-mm stereo jack
- REC: stereo phono
- SEND:6.3-mm jack
- Sound control:
- Height: 12dB to +12dB/10 kHz
- Bass: -12dB to +12dB/100 Hz
- Noise: 0.025 %
- Noise Ratio: 69 dB
- Dimensions (wxdxh): 482 x 123 x 43 mm (19", 1U)
- Weight: 2.2 kg
- Shipping Weight: 2.60kg
- Product type
Microphone mixer
- Dim
(W x H x D) 483 x 43 x 123 mm
- Weight
2.2 kg
- Width
483 mm
- Height
43 mm
- No. of inputs
6 x
- Channels
6
- Rack unit
1 U
- Depth
123 mm
- Interfaces
XLR in
RCA in
RCA out
6.3 mm jack in
- No. of microphone XLR inputs
3 x
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1529991 Omnitronic EM-260 Microphone mixer
Description
Especially suited for modern entertainment applications, in particular hotels, bars or theme parks which place great demands on the quality and features on their audio devices. The mixer of the OMNITRONIC EM-series are especially tailored to this area and therefore in the smallest possible space offer maximum flexibility and quality.
The EM-family offers not only a hardly to uberbietende number of connection possibilities, but is characterised also by your clarity and easy operation.
The special housing design and down to the smallest detail well thought-out construction are two more reasons to the EM-series mixer is the first choice for audio system engineers.
This text is machine translated.
The EM-family offers not only a hardly to uberbietende number of connection possibilities, but is characterised also by your clarity and easy operation.
The special housing design and down to the smallest detail well thought-out construction are two more reasons to the EM-series mixer is the first choice for audio system engineers.
This text is machine translated.
Features
- 6 inputs (3 x Mic/Line, 3 x Line) to mix on 1 stereo output
- Ideal for example for karaoke microphones with CDs, which are to be mixed
- 3 mono input channels microphone/line (XLR, balanced), switchable
- 3 stereo line input channels (RCA)
- Clip-LED for each microphone channel
- Each microphone input with switchable phantom power (12 V)
- FX Send/Return With FX level control
- Stereo master output (6.3 mm jack) with 2-band equalizer (bass and treble) and volume control
- Stereo Record output (Cinch)
- Rack installation, 1 HE
