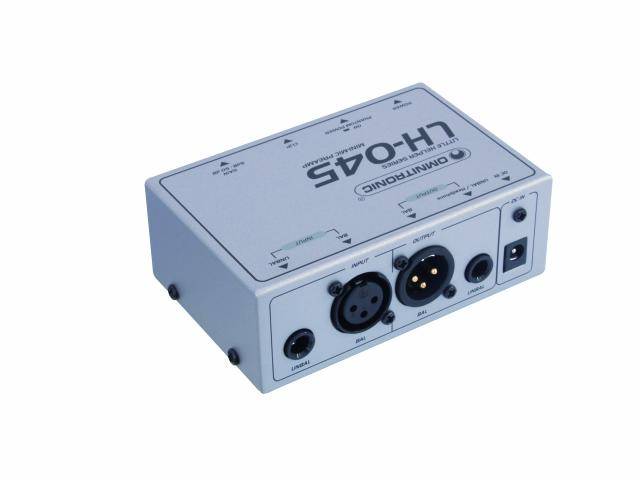

Omnitronic LH-045 Microphone attenuator
EAN:
Part number:
Item no:
Number
Total (€ 60.50 / piece)
€ 60.50
plus VAT.
Highlights & Details
Omnitronic LH-045 Microphone pre-amplifier
- 1-channel microphone preamplifier
Technical specifications
- Voltage supply: 12 V DC / 150 mA
- Input impedance 10 kOhm, bal./unbalanced
- Max. Input level: +4 dB bal./+10 dB unbalanced.
- Gain: 50 dB XLR/44 dB jack
- 0.01 % distortion factor
- Frequency response: 25 Hz - 16 kHz
- Noise voltage distance> 75 dB
- Dimensions 143 x 93 x 45 mm
- Weight: 350 g
- Product type
Microphone attenuator
- Dim
(L x W x H) 143 x 230 x 85 mm
- Weight
700 g
- Length
143 mm
- Width
230 mm
- Height
85 mm
- No. of inputs
1 x
- Channels
1
- Depth
135 mm
- Interfaces
6.3 mm jack out
6.3 mm jack in
XLR out
XLR in
- No of. 6.3 mm microphone inputs
1 x
- No. of microphone XLR inputs
1 x
- No of. XLR outputs
1 x
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 313058 Omnitronic LH-045 Microphone attenuator
Conformity certificate
Conformity certificate 313058 Omnitronic LH-045 Microphone attenuator
Description
1-channel microphone preamplifier · 1 microphone input, XLR (balanced) or 6.3 mm jack socket (unbalanced) · Infinitely adjustable amplification (6-50 dB) · Phantom power can be switched on · Clip LED · 1 line output, XLR- (sym.) or 6.3-mm jack socket (unbalanced) · Power supply via supplied power supply unit
