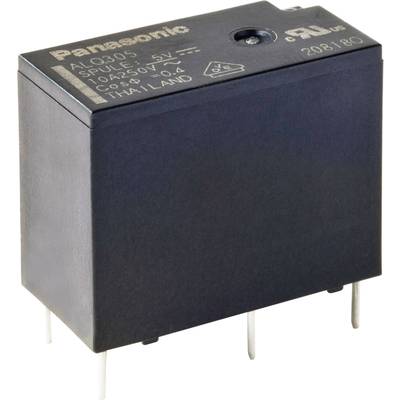

Image similar
Panasonic ALQ112 PCB relay 12 V DC 10 A 1 change-over 1 pc(s)
Product type
PCB relay
Coil nominal voltage
12 V DC
Control mode
monostable, 1 coil
Contact type
1 change-over
Switching voltage (max.)
30 V DC
250 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 2.79 / piece)
€ 2.79
incl. VAT
14-day return policy included
Technical specifications
- Product type
PCB relay
- Type
ALQ112
- Coil nominal voltage
12 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
360 Ω
- Coil voltage rating
400 mW
- Contact type
1 change-over
- Contact material
AgNi
- Switching voltage (max.)
30 V DC
250 V AC
- Switching current (max.)
10 A
- Max. switching capacity
150 W
1250 VA
- Connection
Print
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Length
20 mm
- Width
10 mm
- Height
16 mm
- Dim
(L x W x H) 20 x 10 x 16 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1541181 Panasonic ALQ112 PCB relay 12 V DC 10 A 1 change-over 1 pc(s)
Description
High switching capacity of 10 A in compact design (W x L x H) 10 x 20 x 16 mm. High impulse withstand voltage of 8000 V. Low power consumption. Withstand voltage between contacts and coil (4000 Veff).
Areas of application: washing machines, dishwashers, microwaves, ovens, refrigerators, air-conditioning, boilers, blinds, shutters, coffee machines, but also in the industry and building automation as well as in office equipment.
This text is machine translated.
Areas of application: washing machines, dishwashers, microwaves, ovens, refrigerators, air-conditioning, boilers, blinds, shutters, coffee machines, but also in the industry and building automation as well as in office equipment.
This text is machine translated.
