PC Electric Power Twist 445-1 CEE add-on socket 125 A 5-pin 1 pc(s)

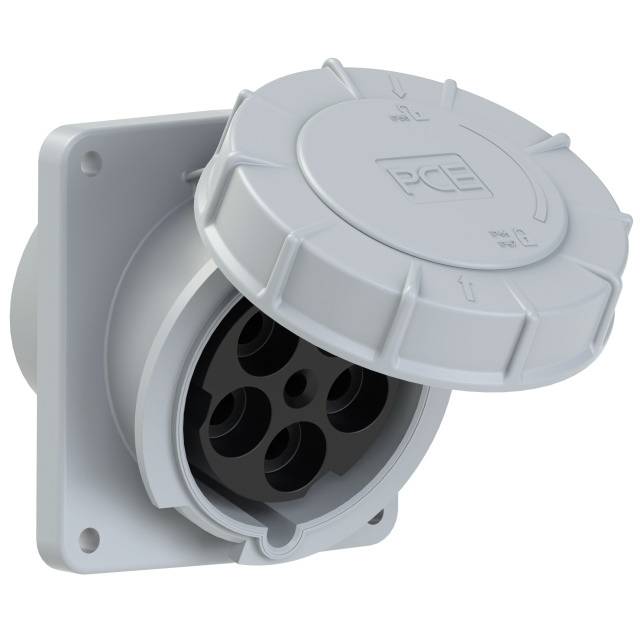

Grey industrial socket with round cover, showing internal connections. Used for robust electrical connections.
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 234.99 / piece)
€ 234.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Housing material PA6
  • 5 PINS (3P+N+PE)
  • Clock position: 1h
  • Rated voltage/frequency: >50V/other
  • Contacts: Brass, with leaf contact (cube)
  • Connection technology: Frame terminals with screws
  • Dimensions (flange/bore): 20x130 mm/100x108 mm
Product type

CEE add-on socket

Nominal current

125 A

Nominal current - rounded value

125 A

Type A

Screws

Type B

CEE connector

Cores

5

IP67

Standards

IEC 60309

Factory colour

Grey

Dim

(W x H) 120 mm x 130 mm

Width

120 mm

Height

130 mm

Content

1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2936952 PC Electric Power Twist 445-1 CEE add-on socket 125 A 5-pin 1 pc(s)

Description

CEE-add-on socket oblique (120x130) 125A 5p 1H IP67 Power TWIST
