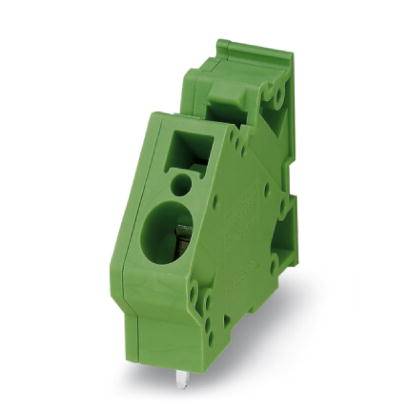

PCB terminal block ZFKDSA 4- 9 1907542 Phoenix Contact
Connection
Spring-loaded terminal
Print
Manufacturer part #
1907542
Content
50 pc(s)
Nominal voltage
630 V
Nominal current
32 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 1.16 / piece)
€ 57.99
incl. VAT
14-day return policy included
Technical specifications
- Connection
Spring-loaded terminal
Print
- Manufacturer part #
1907542
- Content
50 pc(s)
- Nominal voltage
630 V
- Nominal current
32 A
- Series
ZFKDS(A)
- Type
ZFKDSA 4- 9
- Height
27.60 mm
- Length
7.50 mm
- Width
29.00 mm
- Industrial packaging
Yes
- Connector orientation
At an angle (to the PCB)
- Connector system
wire-to-board
- Series
ZFKDS(A)
- AWG max.
10
- AWG (min.)
24
- CS
7.50 mm
- Cross section (flexible) (max.)
4.00 mm²
- Cross section (flexible) (min.)
0.20 mm²
- Cross section (inflexible) (max.)
6.00 mm²
- Cross section (inflexible) (min.)
0.20 mm²
- Number of pins
1
- Stripping length (max.)
10.00 mm
- Contact material
Tin plated
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 199731 PCB terminal block ZFKDSA 4- 9 1907542 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 199731 PCB terminal block ZFKDSA 4- 9 1907542 Phoenix Contact
Description
End terminal block, 9 mm wide, necessary at the end of a row of terminal blocks
