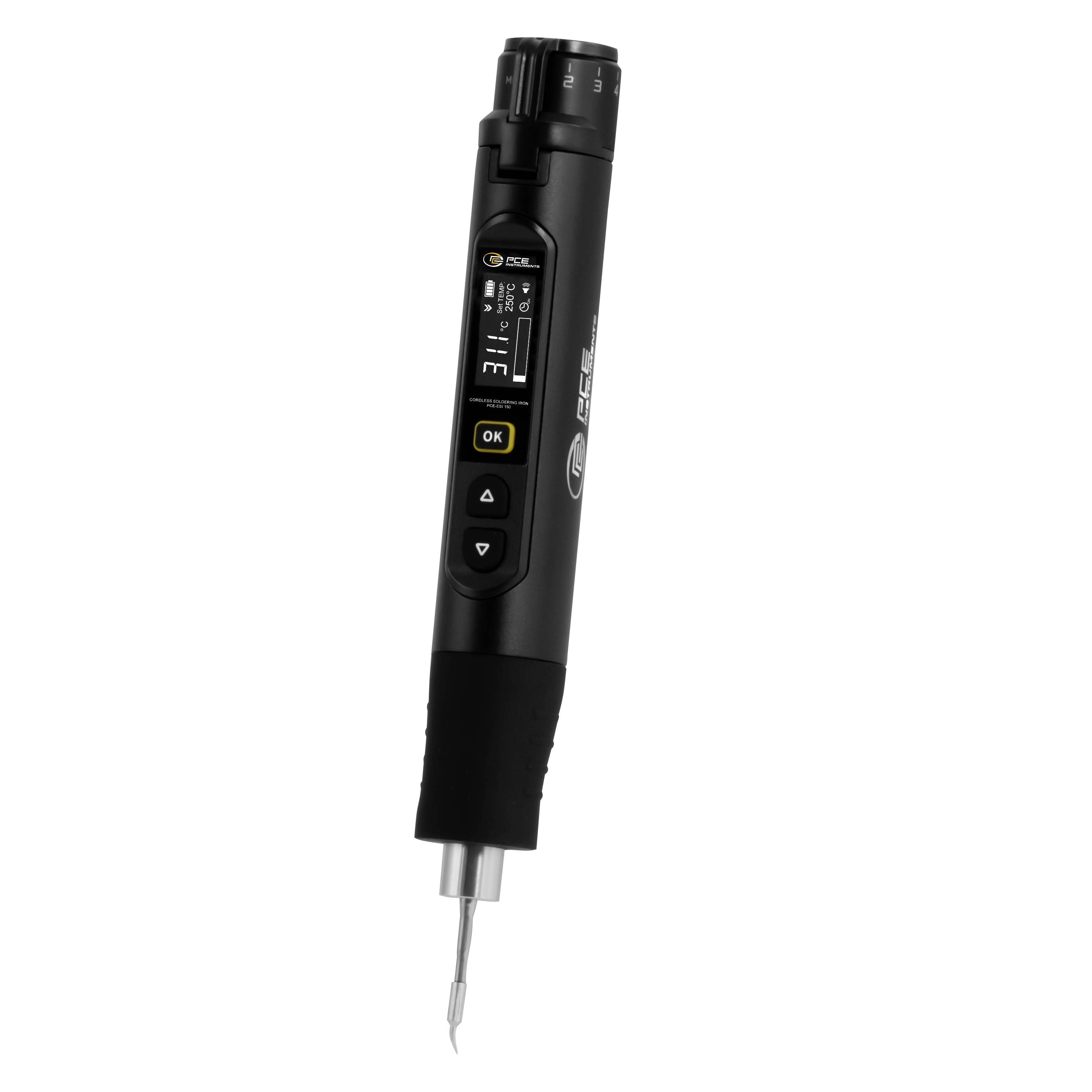

Name: PCE Instruments PCE-ESI 150 Cordless solering iron 5 V DC 10 W Soldering tip 100 - 450 °C + soldering tip, Battery-power
Brand: PCE Instruments
SKU: 3841696

Highlights & Details

PCE Instruments cordless soldering iron PCE-ESI 150 |100 ... 450 °C |inc. 3 precision tips |Power 10 W |Heat-up time approx. 7 s

Temperature range of 100 ... 450 °C.

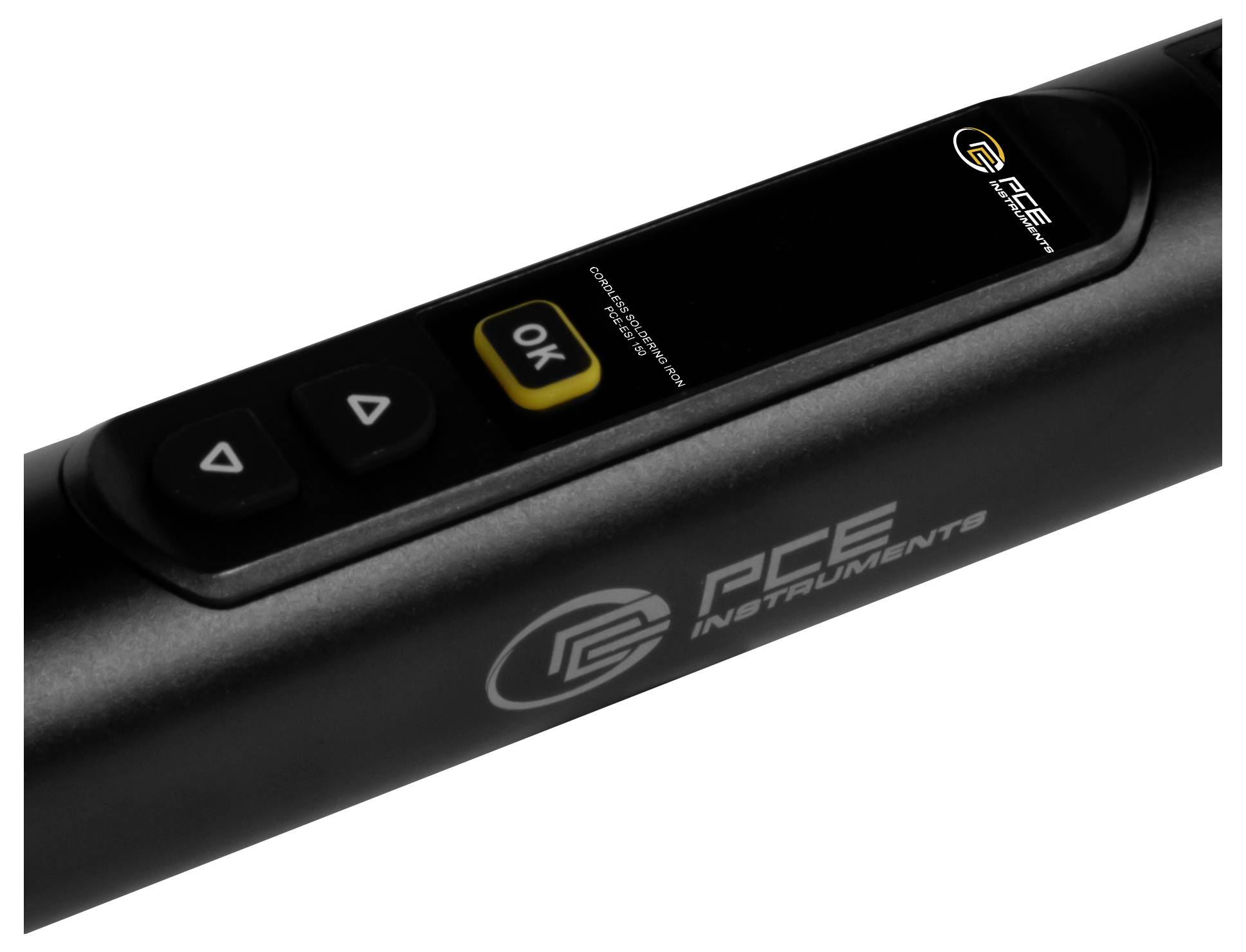

5 quick selection temperature levels
Rapid heating in 7 seconds
Fine temperature tuning in 1 °C steps

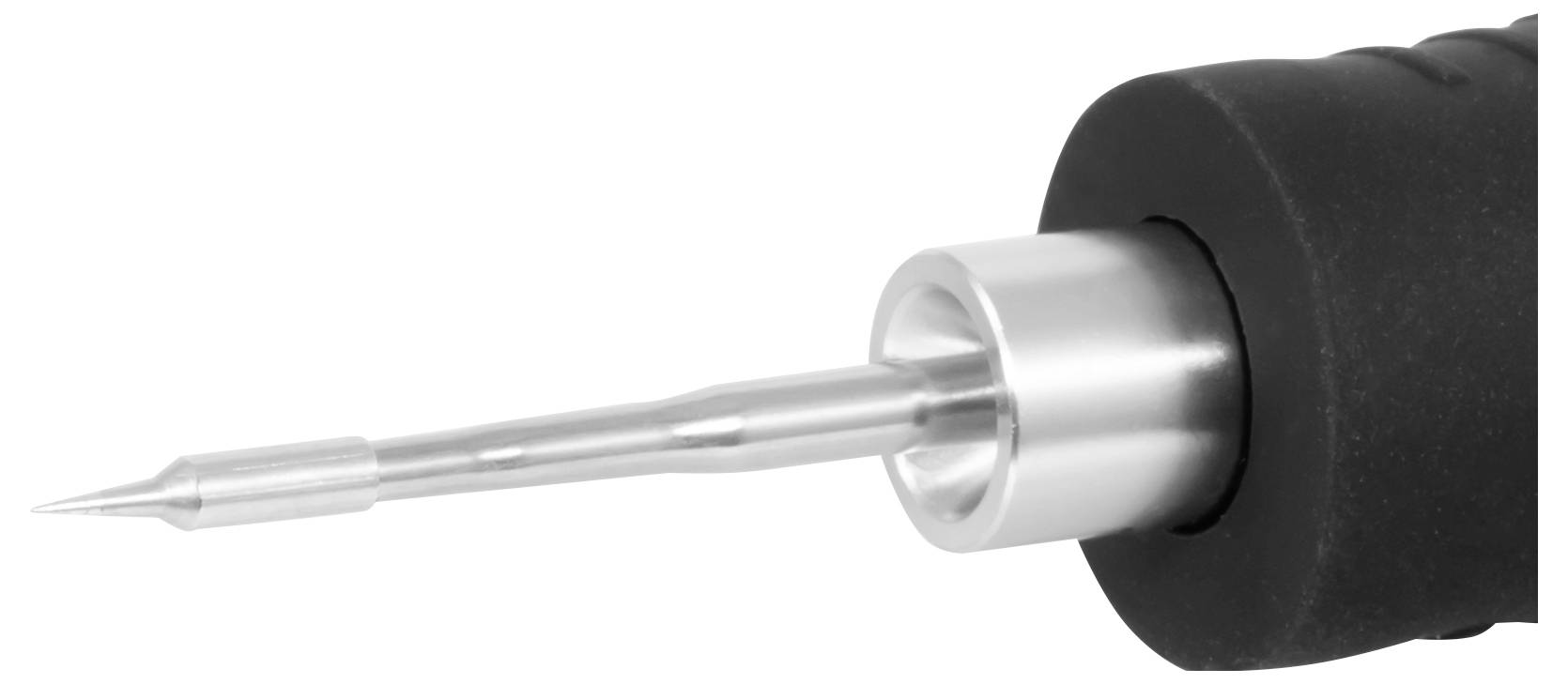

3 Precision tips for fine work
Operating time approx. 1.5 h @350 °C.
Built-in rechargeable battery with 2600 mAh
Intelligent car sleep and energy saving system

Technical specifications

General Technical Specifications
Units(s) °C, °F

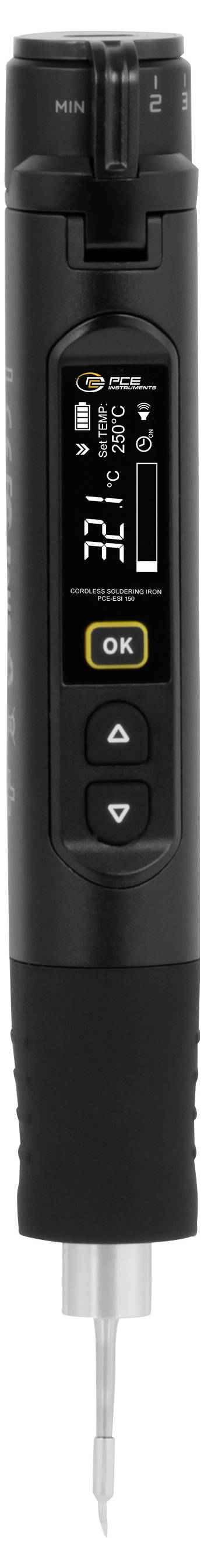

Display type IPS
Display size 0.96 inches

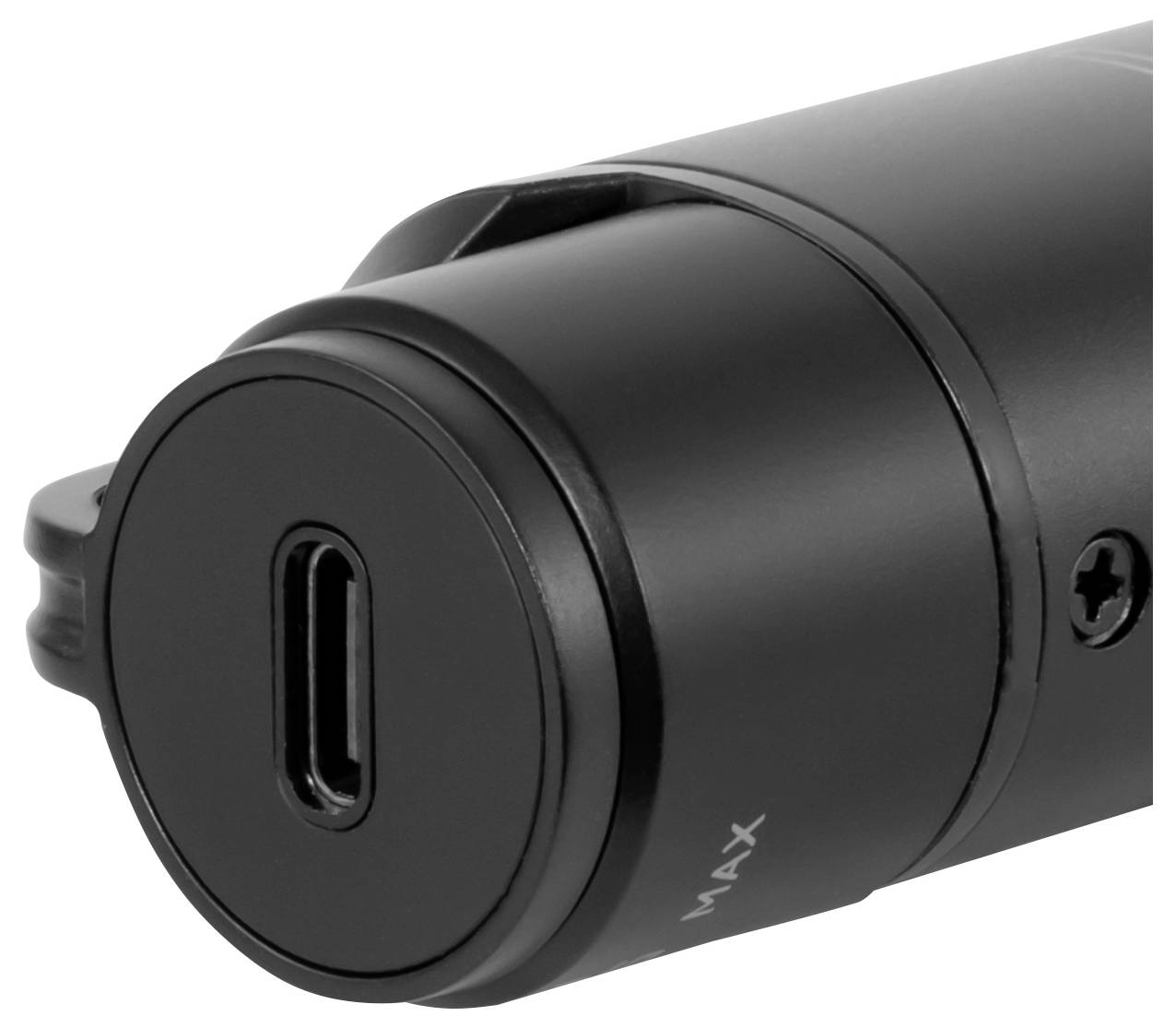

Interface USB-C
Warm-up time 7 s.
Operating time: 1.5 h
Operating time additional information at 350 °C continuous operation
Temperature range 100 to 450°C
Power: 10 W
Menu language English (GB), English (US), Chinese
Protection class (device) IP20
Power supply 5 V/DC
Connector type Euro plug
Battery 1 x 3.7 V 18650 , Lithium-ion battery
Capacity: 2600 mAh
Operating conditions 0 ... 50 °C , 0 ... 90 % r. F.
Storage conditions 0 ... 50 °C , 0 ... 90 % r.h.
Dimensions (L x W x H) 195 x 24 x 30 mm.
Weight 140 g

Product type: Cordless solering iron

Max. power: 10 W

Min. temperature: 100 °C

Max. temperature: 450 °C

Solder tip type: Soldering tip

Soldering iron features: + soldering tip
Battery-powered

Dim: (L x W x H) 195 x 24 x 30 mm

Weight: 140 g

Preheating time: 7 s

Type: Battery-operated soldering iron, digital temperature-controlled

Operating time: 1.5 h

Operating voltage: 5 V DC

Width: 24 mm

Height: 30 mm

Length: 195 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3841696 PCE Instruments PCE-ESI 150 Cordless solering iron 5 V DC 10 W Soldering tip 100 - 450 °C + soldering tip, Battery-power

User & Safety Instructions

User & Safety Instructions 3841696 PCE Instruments PCE-ESI 150 Cordless solering iron 5 V DC 10 W Soldering tip 100 - 450 °C + soldering tip, Battery-power

Description

The rechargeable soldering iron is designed for soldering with precisely adjustable temperature and combines wireless operation with a power supply via type C. With small components and SMD soldering, the precision tips support a targeted treatment, while the fast heating reduces waiting times before the start of work.

The temperature can be adjusted quickly to recurring tasks via five quick-setting steps and also be fine-tuned in fine steps. The large temperature range covers different soldering tasks. The tips have a core resistance of 2.10 Ω and are designed for precision work. With 10 W power, the rechargeable soldering iron provides the necessary heating power for these tasks.

For a continuous workflow, the device seamlessly switches between battery operation and type C power supply. The in-built battery with 2600 mAh enables the wireless use, while the cabled and wireless Dual-mode enables the selection of the appropriate mode. An intelligent car-sleep system and the power saving system support a demand-oriented use of energy.

The cordless soldering iron is particularly suitable for fine work on small components as well as for SMD soldering tasks. The combination of F210 precision tips, fine-tuned temperature and rapid heating supports thereby controlled work steps at sensitive soldering joints.

This text is machine translated.

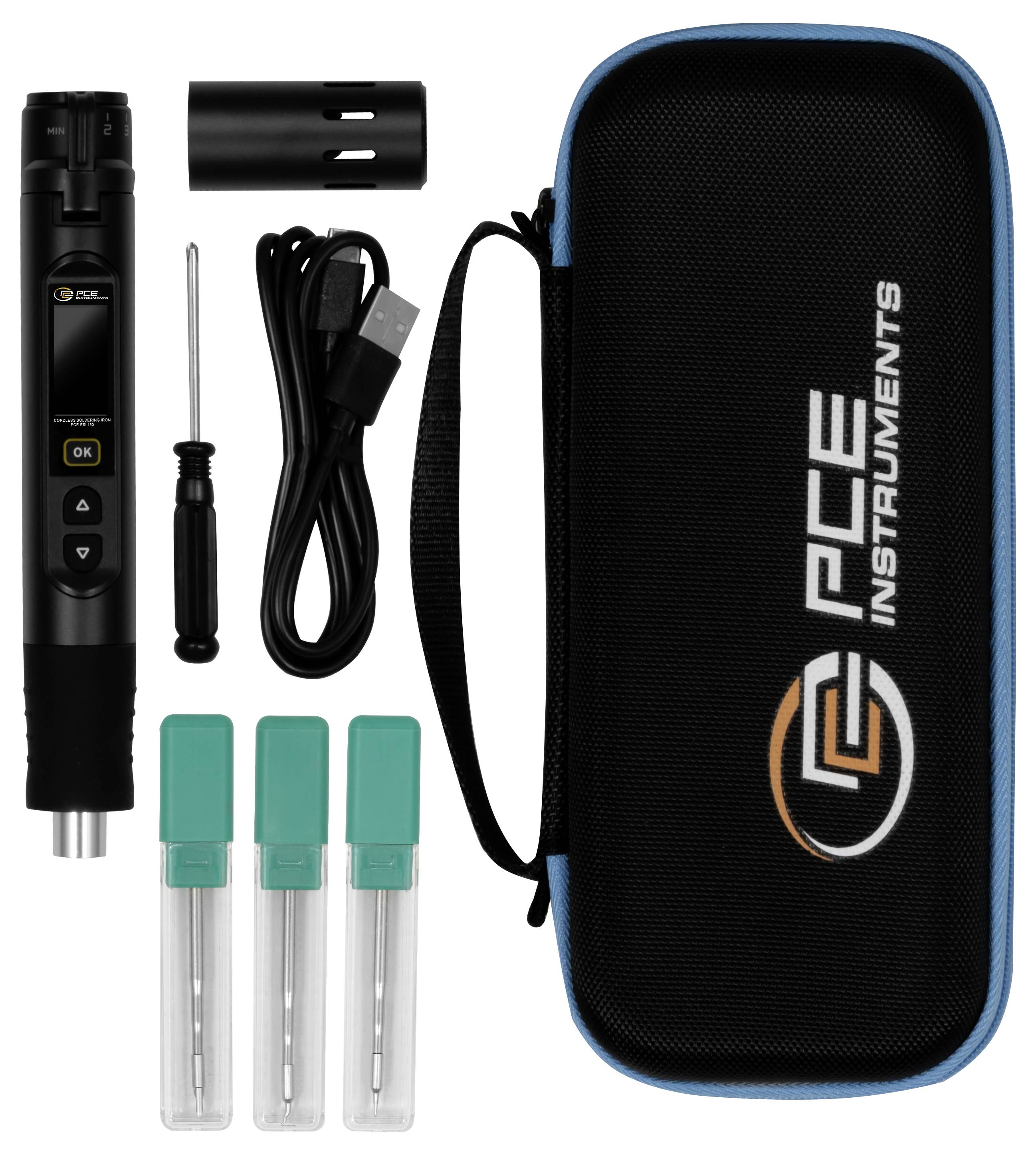

Scope of delivery

1 x cordless soldering iron PCE-ESI 150
1 x soldering tip PCE-ESI 420-K
1 x solder tip PCE-ESI 420-IS
1 x solder tip PCE-ESI 420-I
1 x USB-C cable
1 x screwdriver
1 x appliance bag
1x user manual
