Name: PCE Instruments PCE-RCM 16 Hygrometer 20 RH 90 RH
Brand: PCE Instruments
SKU: 2299549
Availability: InStock

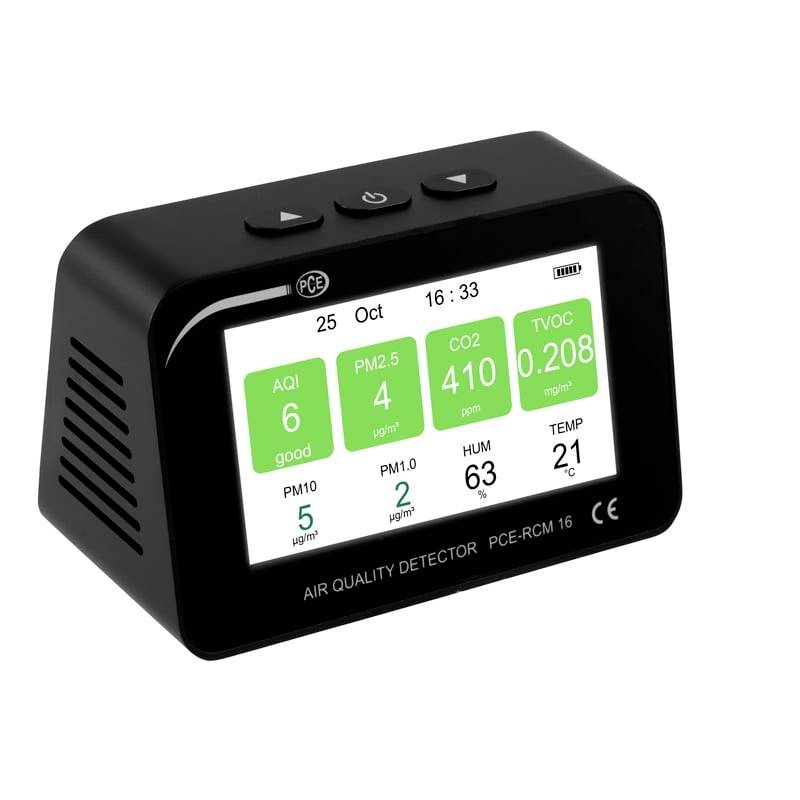

Black digital air quality monitor showing AQI 6 'good', PM2.5 4, CO2 410, TVOC 0.208, PM10 5, PM1.0 2, humidity 63%, and 21°C.<br>

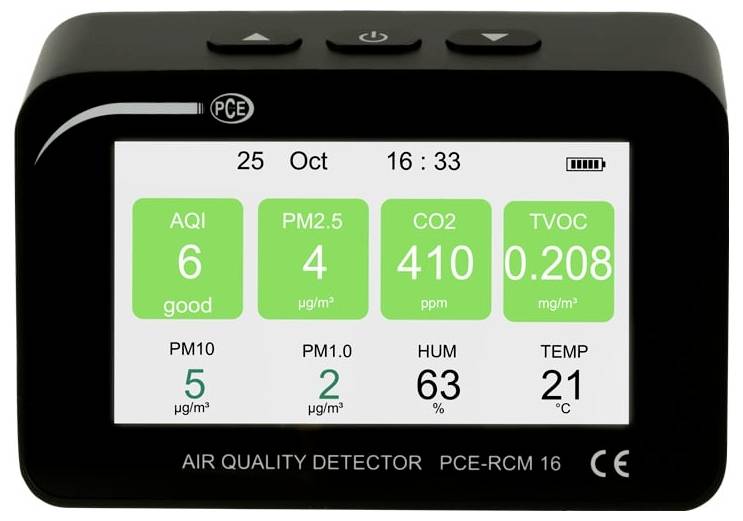

Handheld air quality monitor display showing AQI 6 good, PM2.5 4 µg/m³, CO2 410 ppm, TVOC 0.208 mg/m³, humidity 63%, temperature 21°C.

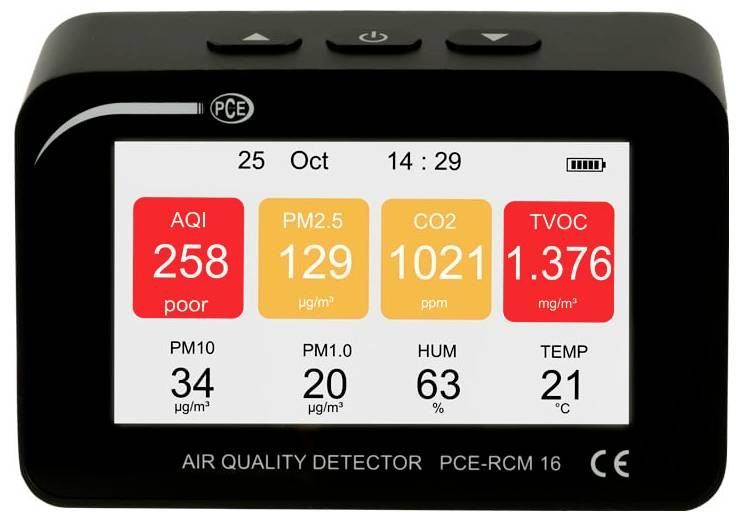

Air quality monitor display showing poor air: AQI 258, PM2.5 129 µg/m³, CO2 1021 ppm, TVOC 1.376 mg/m³, PM10 34, PM1.0 20, humidity 63%, temperature 21°C.

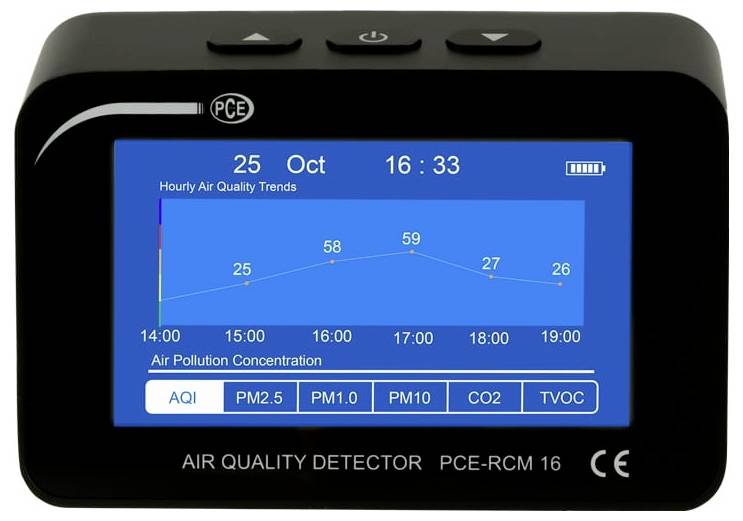

Air quality detector display showing hourly air quality trends on Oct 25, with a line graph of pollution levels from 14:00 to 19:00 and AQI, PM2.5, PM1.0, PM10, CO2, TVOC tabs.

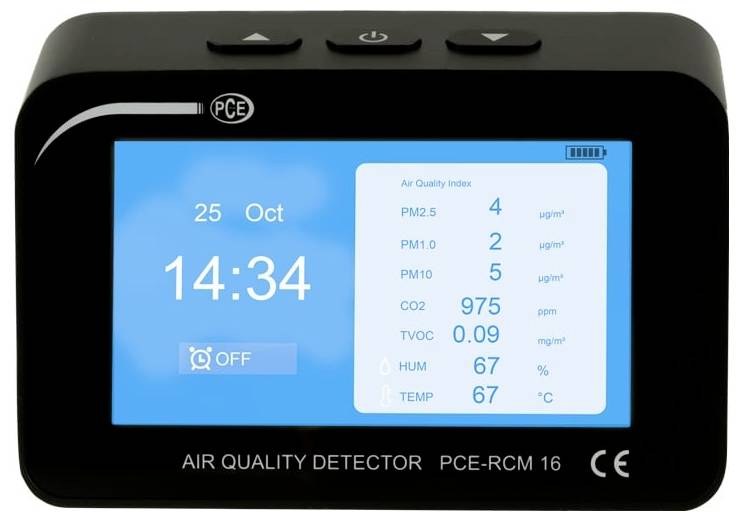

Digital air quality detector showing date and time with readings for PM2.5, PM1.0, PM10, CO2, TVOC, humidity, and temperature.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 335.00 / piece)

€ 335.00

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Humidity METER PCE-RCM 16

4.3 inch TFT screen
Many different measurement functions
Heavy duty metal casing
Calculation of the air quality index (AQI)
Rechargeable battery via micro USB
Adjustable alarm clock
Different display modes
Fixed limit value function

Technical specifications

Product type: Hygrometer

Max. temperature: 50 °C

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 191 x 67.5 x 78 mm

Weight: 336 g

Weight, information: incl. rechargeable battery

Basic accuracy: 10 %

Accuracy ± °C: 1 °C

Calibration range: Carbon dioxide
Humidity
Temperature

Humidity reading range (max.): 90 RH

Humidity reading range (min.): 20 RH

Humidity reading accuracy: 4 RH

Width: 67.5 mm

Height: 78 mm

Length: 191 mm

Interfaces: Micro USB

Power supply: Rechargeable battery

Min. temperature: 0 °C

Features: Thermometer
USB interface

Unit of measurement: Humidity
Temperature
Particulate matter
Particulate matter

Accuracy: 10 %

Reading range (max.): 999 µm

Reading range (min.): 0 µm

Documents & Downloads

Datasheet

Datasheet 2299549 PCE Instruments PCE-RCM 16 Hygrometer 20 RH 90 RH

User & Safety Instructions

User & Safety Instructions 2299549 PCE Instruments PCE-RCM 16 Hygrometer 20 RH 90 RH

Description

The PCE-RCM 16 air quality meter is ideal for monitoring air quality in residential buildings, companies or public buildings in which people are present. The 4.3 inch TFT display in the air quality meter is dimensioned in such a way that all measured values can be read directly. Supported measurements for the air quality meter are CO2, TVOC, PM1, PM2.5, PM10, temperature and ambient humidity. The measured values are updated every second on the display of the air quality meter. As soon as a measured value exceeds the fixed limit value, this is shown visually for the user. For power supply, the air quality meter can be operated directly via the micro USB connection on the rear side. The built-in rechargeable battery of the air quality meter is also charged via this interface. Thus, the air quality meter can be used in many ways. Note that the measured values will stabilize within 24 hours after the air quality meter is switched on.

This text is machine translated.
