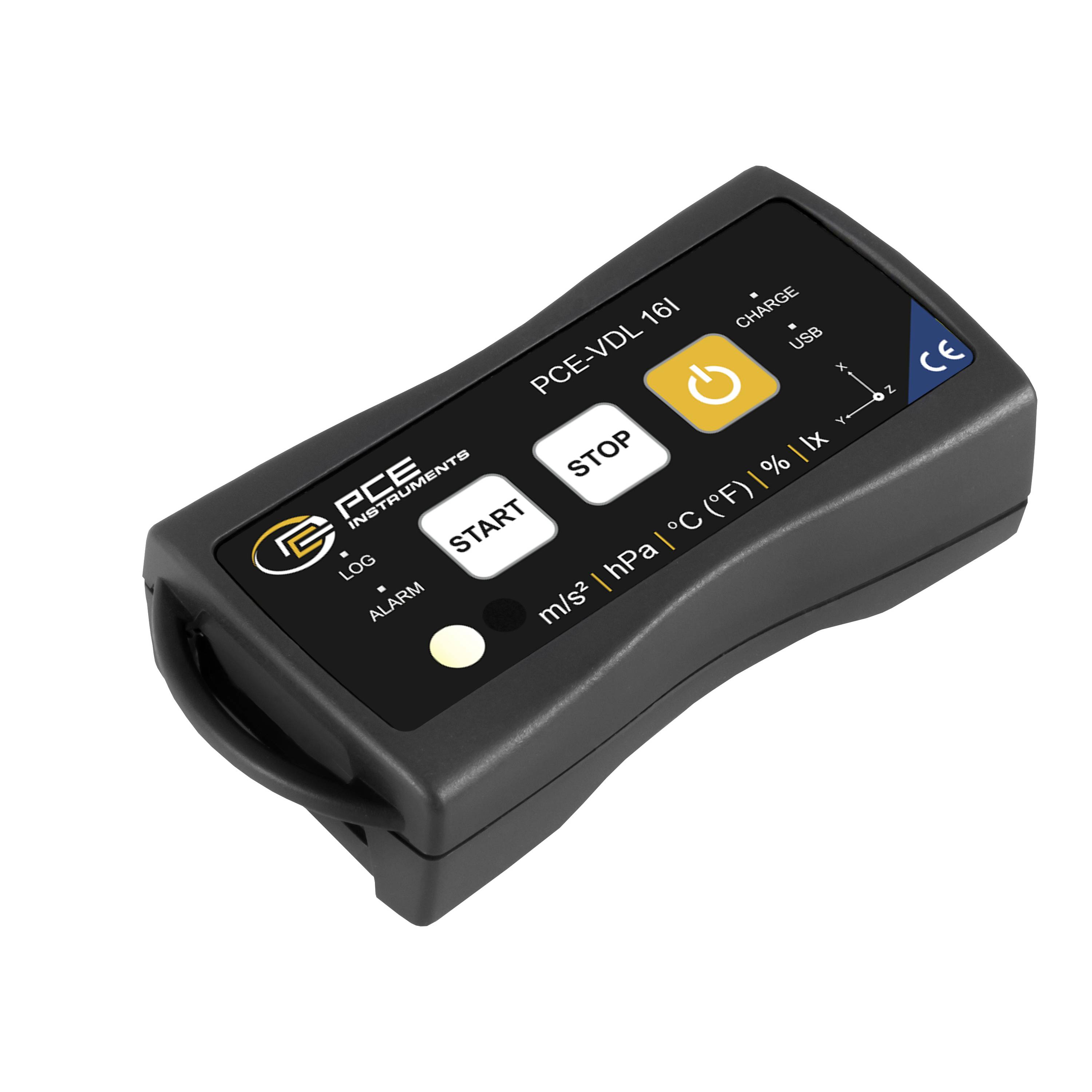

PCE Instruments PCE-VDL 16I PCE-VDL 16I Temperature data logger, RH data logger, Air pressure data logger -20 up to 65 °
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 264.71 / piece)
€ 264.71
plus VAT.
Only 9 Piece(s) available
Highlights & Details
PCE Instruments PCE-VDL 16I PCE-VDL 16I Temperature data logger, RH data logger, Air pressure data logger -20 up to 65 °C 0 up to 100 RH 10 - 2000 bar
- 3 axis acceleration up to 800 Hz
- For temperature, air humidity, air pressure and light
- 32 GB SD memory card
- Small design: 86.8 x 44.1 x 22.2 mm
- Made in Germany
Technical specifications
- Dim
(L x W x H) 87 x 44 x 44 mm
- Weight
60 g
- Height
44 mm
- Length
87 mm
- Width
44 mm
- Temperature reading range
-20 up to 65 °C
Manufacturer's standards (no certificate)
- Display
Graphical
- Interfaces
SD card slot
- Reading type
Acceleration
- Type
PCE-VDL 16I
- Air pressure reading accuracy
2 hPa
- Humidity reading accuracy
1.8 RH
- Air pressure reading range (max.)
2000 bar
- Air pressure reading range (min.)
10 bar
- Humidity reading range (max.)
100 RH
- Humidity reading range (min.)
0 RH
- Temperature reading range (max.)
65 °C
- Temperature reading range (min.)
-20 °C
- Temperature accuarcy (details)
0.2 °C
- Product type
Temperature data logger
Documents & Downloads
Datasheet
Datasheet 2299580 PCE Instruments PCE-VDL 16I PCE-VDL 16I Temperature data logger, RH data logger, Air pressure data logger -20 up to 65 °
User & Safety Instructions
User & Safety Instructions 2299580 PCE Instruments PCE-VDL 16I PCE-VDL 16I Temperature data logger, RH data logger, Air pressure data logger -20 up to 65 °
Description
The PCE-VDL 16I mechanical data logger This data logger is therefore ideally suited for monitoring vibrations on machines while simultaneously measuring and recording relevant environmental conditions of the plant. Although production machines or processing machines such as a multi-axis milling machine use significantly improved drive units, the data logger can in any case record a basic vibration behavior of the machine and record the development of the vibrations from there over time. In this way, the vibration behavior of the milling machine can be evaluated at short intervals or the resulting error sources can be localized.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x Vibration Tester PCE-VDL 16I
- 1x Data cable USB - USB Micro

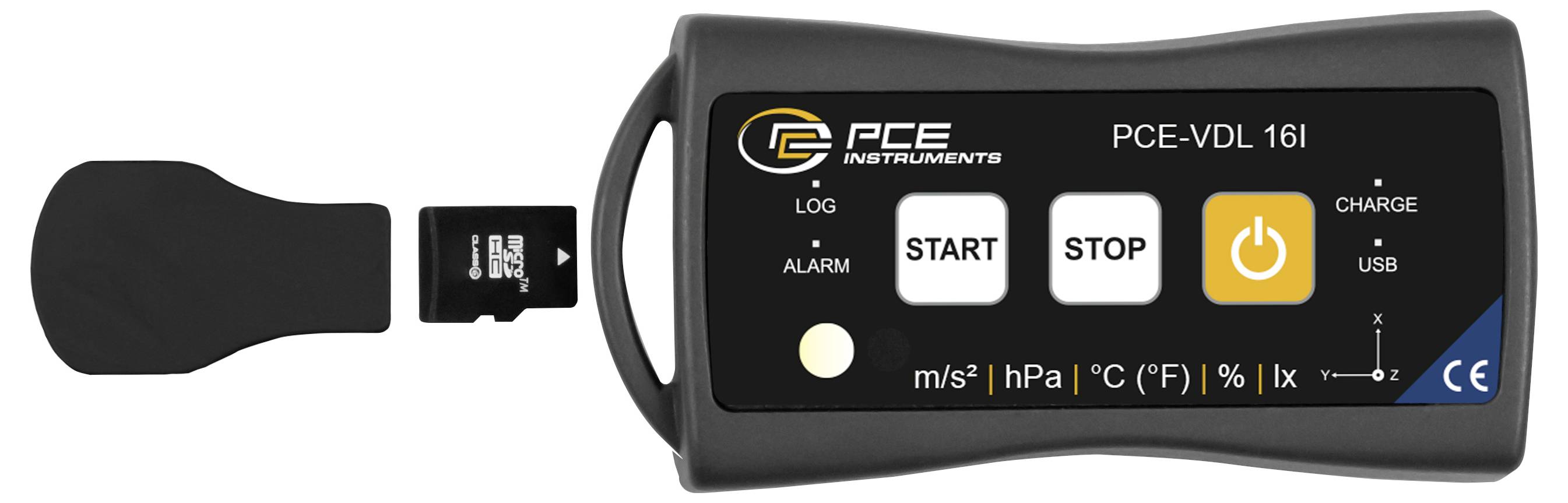

- 1x 32 GB SD memory card
- 1x sliding element for SD-card

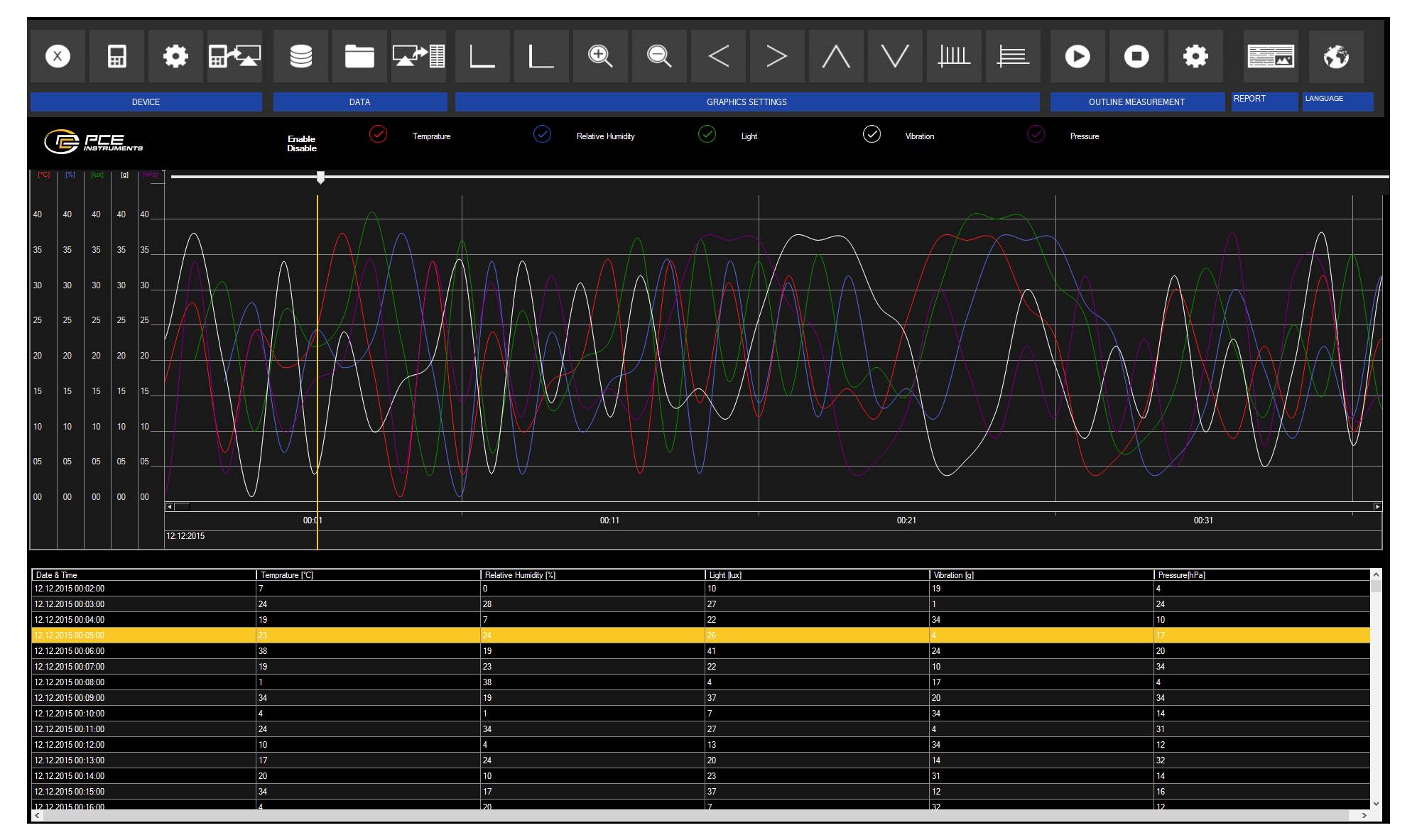

- 1x USB stick with PC software and user manual.
