PCE Power Twist 435-6 CEE add-on socket 63 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 31.08
3
4% = € 1.21
€ 29.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 31.08 / piece)
€ 31.08
plus VAT.
Highlights & Details
CEE add-on socket at an angle 63 A Twist
- IP67
Technical specifications

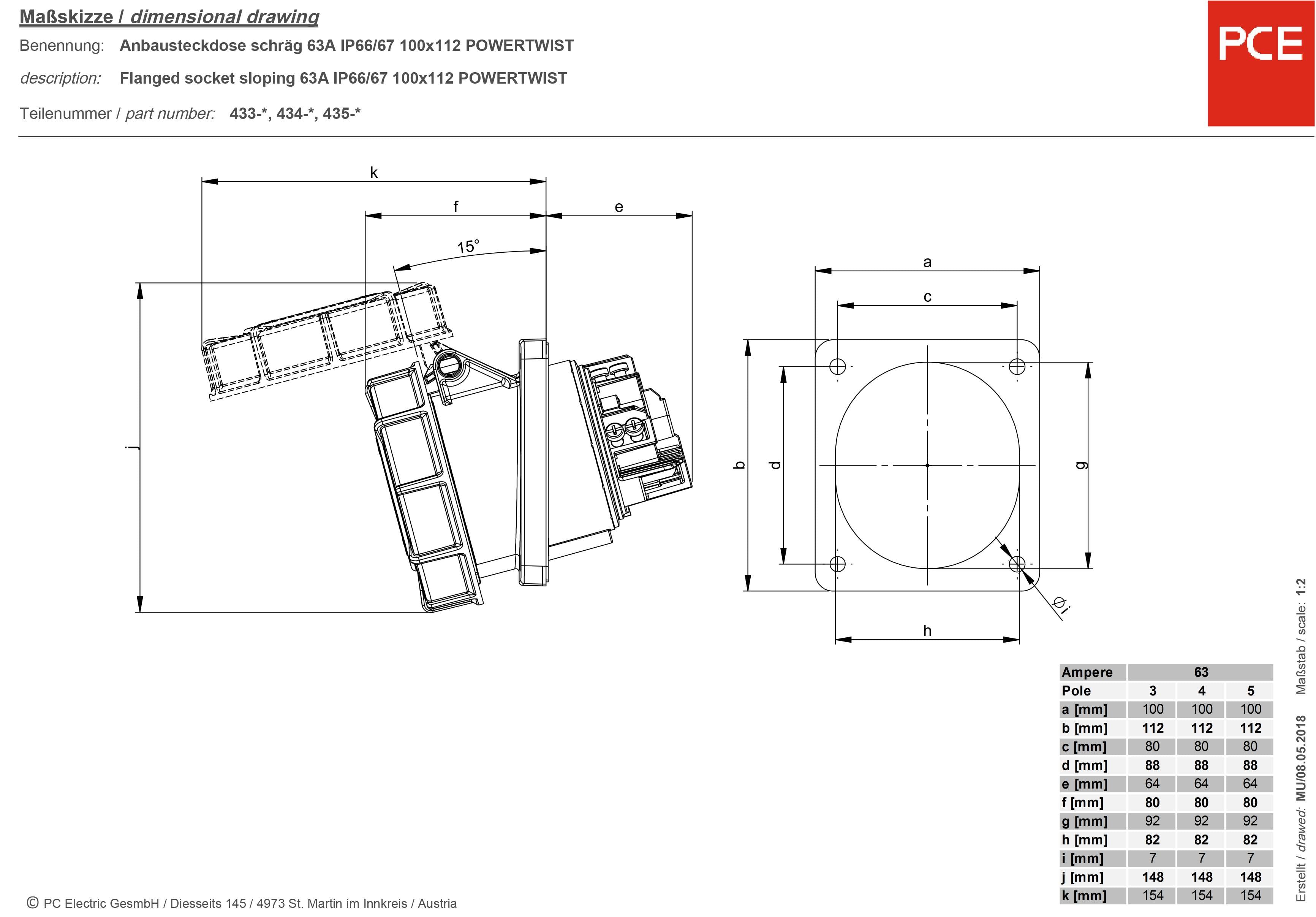

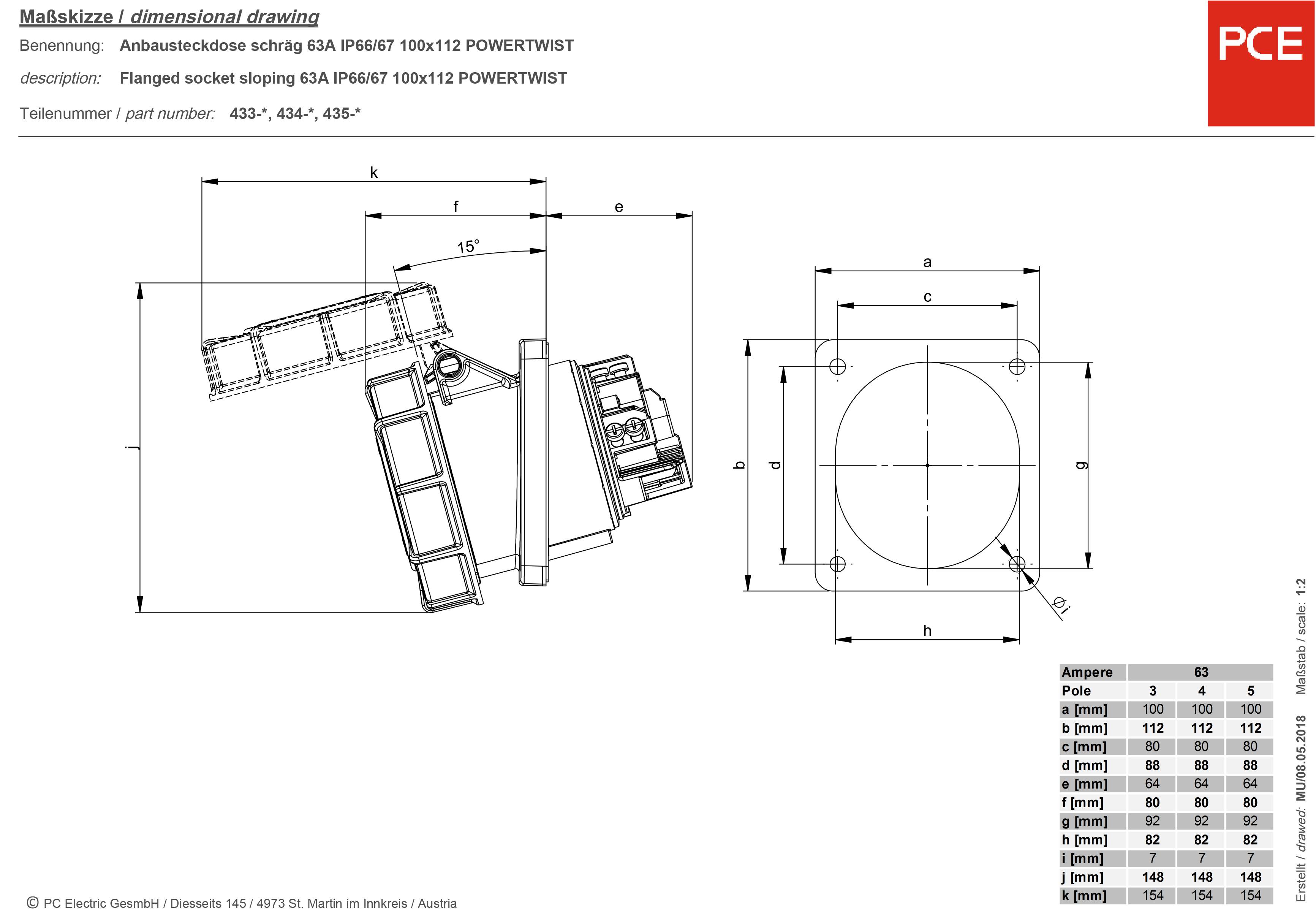

- For conductor cross section 6-16 mm² flexible, 6-25 mm ² single-wire
- Fitting depth: 64 mm
- Flange dimensions 100 x 112 mm
- Hole spacing 80 x 88 mm
- Product type
CEE add-on socket
- Nominal voltage
400 V
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Type A
Screws
- Type B
CEE connector
- Cores
5
- Type
Angular
IP67
- Factory colour
Red
Grey
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 552983 PCE Power Twist 435-6 CEE add-on socket 63 A 5-pin 400 V 1 pc(s)
Description
For installation in housing or systems, with frame clamp with screws.
