Name: Peter Electronic VersiStart II plus 400-22 26300.40022 Soft starter Motor power at 400 V 11 kW 400 V AC Nominal current
Brand: Peter Electronic
SKU: 3715766
Availability: InStock

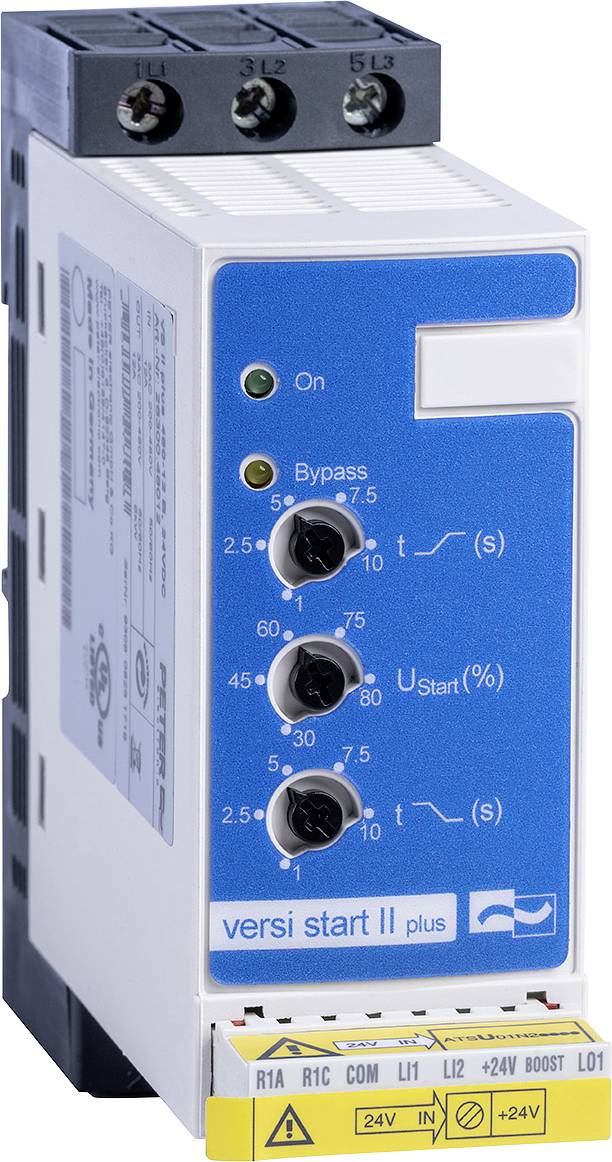

A blue and white electrical device labeled 'versi start II plus' with control knobs for 'Start', 't(S)', and 'Ustart(%)'. There's an indicator labeled 'On'.

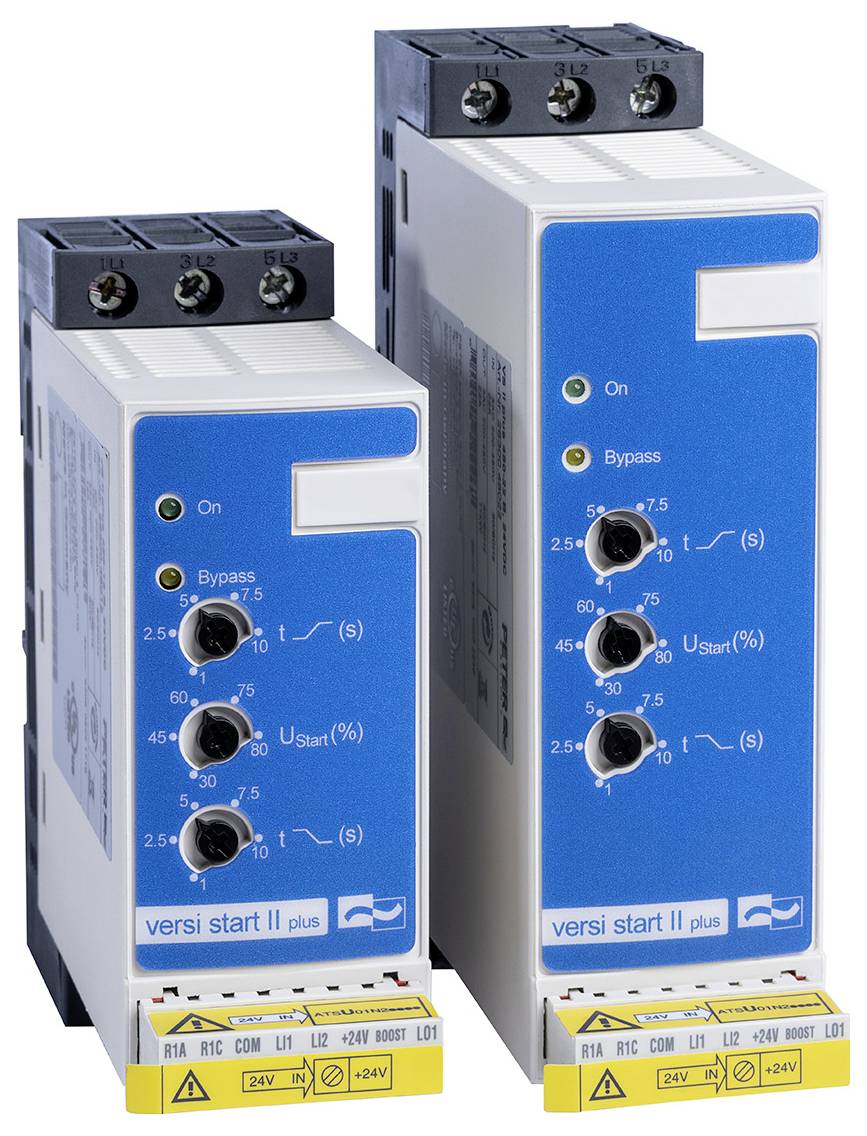

'Versi Start II Plus' motor controllers shown, featuring settings for bypass, delay, and voltage. Blue and white casing with control dials.

1/2

Datasheet (PDF)

Fast track dispatch on Tue 27 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 169.99 / piece)

€ 169.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Soft start-up device VersiStart II plus 400-22

Two-phase-controlled soft start-up device
Microcontroller synchronised
Optimised soft start-up
Current and three-phase reduction with start-up
Simple installation, to snap open on 35 mm standard rail or directly mountable
Integrated bypass relay
Parameterization with three potentiometers
No network neutral conductor (N) required
Replacement for Stern-/Dreieckschalter Inclusive bulb
Control side screw terminals
Compact design - 45 x 154 x 131mm (22-32A)
Protection type IP20

Technical specifications

Protection class: IP20
Weight: 0.5 kg
Max. Power loss during ramp-up: 223 W

Motor voltage: 3x380-415 V AC

Product type: Soft starter

Supply current: 22 A

Motor power at 400 V: 11 kW

Operating voltage: 3x380-415 V AC

Nominal voltage: 400 V AC

Operating phases: 2

Type: Two-phase-controlled, microprocessor-controlled soft start-up device

Manufacturer part #: 26300.40022

Nominal current: 22 A

Nominal current - rounded value: 22 A

Type: VersiStart II plus 400-22

Motor power at 230V / 400V: 11 kW

Slow-down time: 1...10 s

Dim: (L x W x H) 131 x 45 x 154 mm

Connection: Screw terminal

Power rating: 24 V DC

Width: 45 mm

Height: 154 mm

Length: 131 mm

Depth: 131 mm

Max. temperature: 50 °C

Min. temperature: -10 °C

Documents & Downloads

Datasheet

Datasheet 3715766 Peter Electronic VersiStart II plus 400-22 26300.40022 Soft starter Motor power at 400 V 11 kW 400 V AC Nominal current

User & Safety Instructions

User & Safety Instructions 3715766 Peter Electronic VersiStart II plus 400-22 26300.40022 Soft starter Motor power at 400 V 11 kW 400 V AC Nominal current

Description

The VersiStart II plus soft start units extend the 2-phase series by a further five power variants from 6 to 32A. The "Plus" offers even more robustness, high performance and high maximum switching frequency.

This text is machine translated.

Features

Soft start-up and deceleration
Potential free control input for soft acceleration and deceleration
3 separate adjustable parameters: Start-up time, start-up voltage, slow-down time
Boost start can be selected
Potential-free relay output (closed when engine is running)

Scope of delivery

VersiStart II plus 400-22
Installation and start-up instructions

Description

Features

Soft start-up and deceleration
Potential free control input for soft acceleration and deceleration
3 separate adjustable parameters: Start-up time, start-up voltage, slow-down time
Boost start can be selected
Potential-free relay output (closed when engine is running)
