Name: Peter Electronic VersiStart II plus 400-32 26300.40032 Soft starter Motor power at 400 V 15 kW 400 V AC Nominal current
Brand: Peter Electronic
SKU: 3715767
Availability: InStock

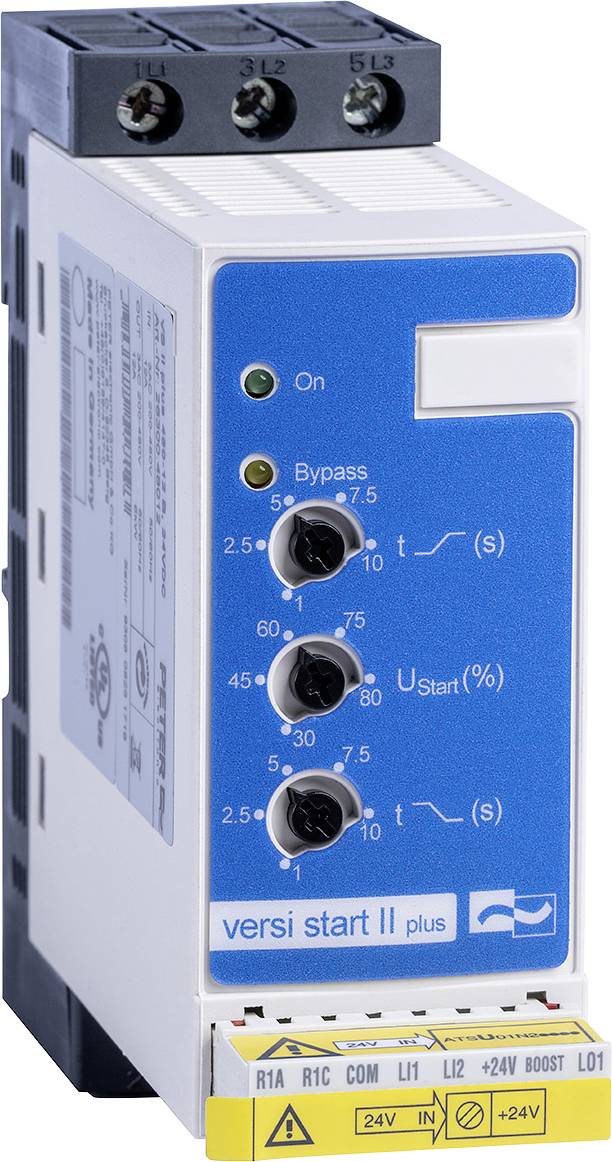

A blue and white electrical device labeled 'versi start II plus', with knobs for control settings and indicator lights for 'On' and 'Bypass'.

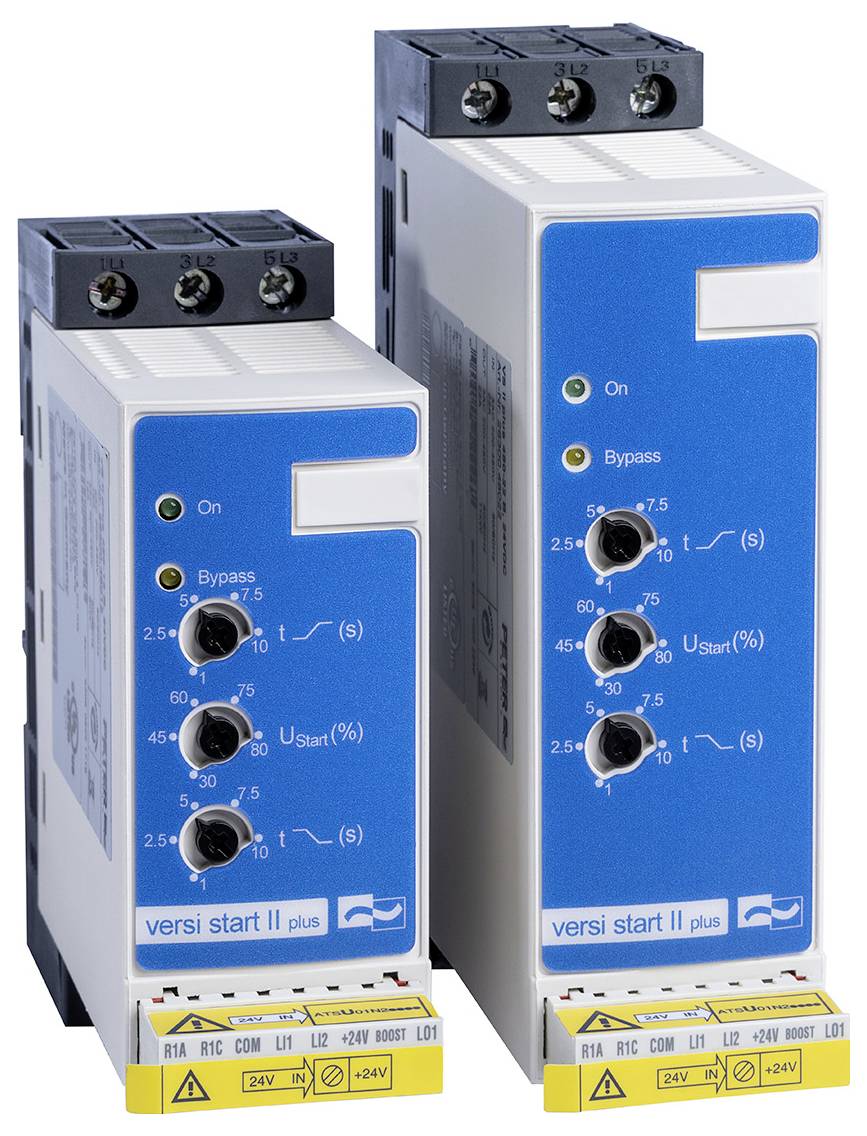

'Versi Start II Plus' motor control modules with knobs and LEDs, showing settings for bypass, voltage, and timer. Two units displayed.

1/2

Datasheet (PDF)

Fast track dispatch on Tue 27 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 204.99 / piece)

€ 204.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Soft start-up device VersiStart II plus 400-32

Two-phase-controlled soft start-up device
Microcontroller synchronised
Optimised soft start-up
Current and three-phase reduction with start-up
Simple installation, to snap open on 35 mm standard rail or directly mountable
Integrated bypass relay
Parameterization with three potentiometers
No network neutral conductor (N) required
Replacement for Stern-/Dreieckschalter Inclusive bulb
Control side screw terminals
Compact design - 45 x 154 x 131mm (22-32A)
Protection type IP20

Technical specifications

Protection class: IP20
Start-up time: Adjustable from 1 to 10 seconds
Start voltage adjustable from 30% to 80%
Max. Power loss during ramp-up: 323 W

Motor voltage: 3x380-415 V AC

Product type: Soft starter

Supply current: 32 A

Motor power at 400 V: 15 kW

Operating voltage: 3x380-415 V AC

Nominal voltage: 400 V AC

Operating phases: 2

Type: Two-phase-controlled, microprocessor-controlled soft start-up device

Manufacturer part #: 26300.40032

Nominal current: 32 A

Nominal current - rounded value: 32 A

Type: VersiStart II plus 400-32

Motor power at 230V / 400V: 15 kW

Slow-down time: 1...10 s

Dim: (L x W x H) 131 x 45 x 154 mm

Connection: Screw terminal

Power rating: 24 V DC

Width: 45 mm

Height: 154 mm

Length: 131 mm

Depth: 131 mm

Max. temperature: 50 °C

Min. temperature: -10 °C

Documents & Downloads

Datasheet

Datasheet 3715767 Peter Electronic VersiStart II plus 400-32 26300.40032 Soft starter Motor power at 400 V 15 kW 400 V AC Nominal current

User & Safety Instructions

User & Safety Instructions 3715767 Peter Electronic VersiStart II plus 400-32 26300.40032 Soft starter Motor power at 400 V 15 kW 400 V AC Nominal current

Description

The VersiStart II plus soft start units extend the 2-phase series by a further five power variants from 6 to 32A. The "Plus" offers even more robustness, high performance and high maximum switching frequency.

This text is machine translated.

Features

Soft start-up and deceleration
Potential free control input for soft acceleration and deceleration
3 separate adjustable parameters: Start-up time, start-up voltage, slow-down time
Boost start can be selected
Potential-free relay output (closed when engine is running)

Scope of delivery

VersiStart II plus 400-32
Installation and start-up instructions

Description

Features

Soft start-up and deceleration
Potential free control input for soft acceleration and deceleration
3 separate adjustable parameters: Start-up time, start-up voltage, slow-down time
Boost start can be selected
Potential-free relay output (closed when engine is running)
