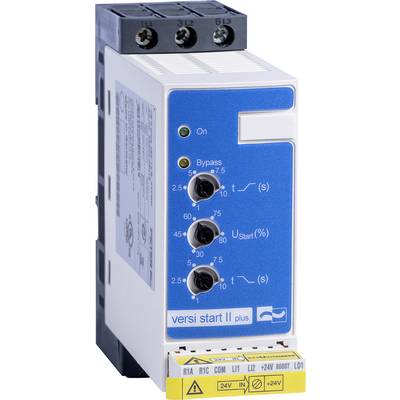

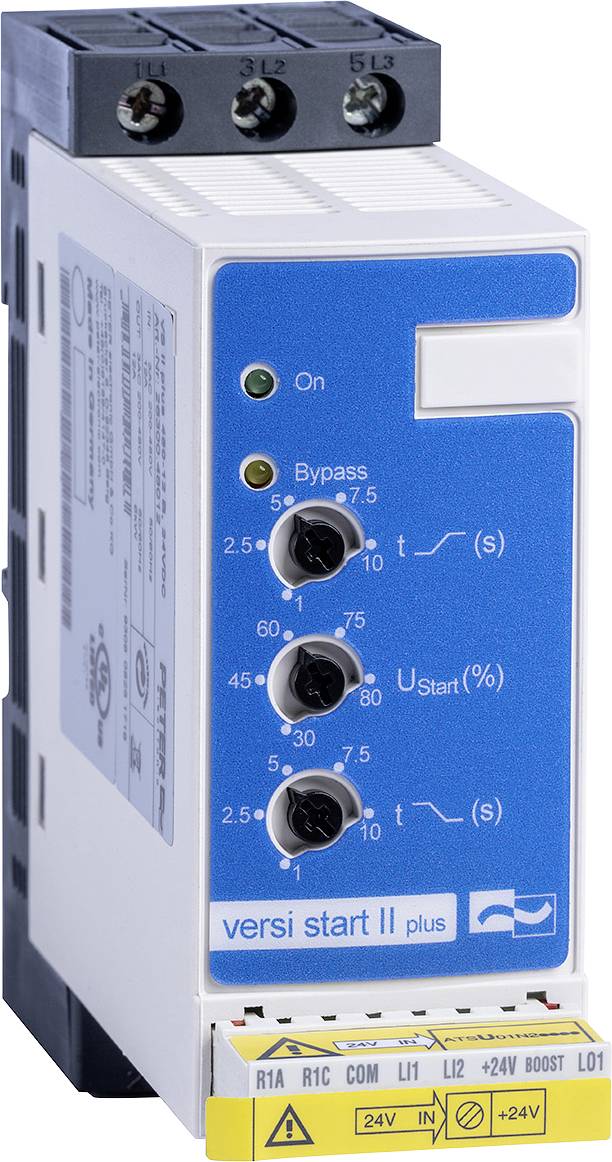

Versi Start II Plus motor starter with blue front panel, multiple control knobs, and indicator lights for on and bypass status.

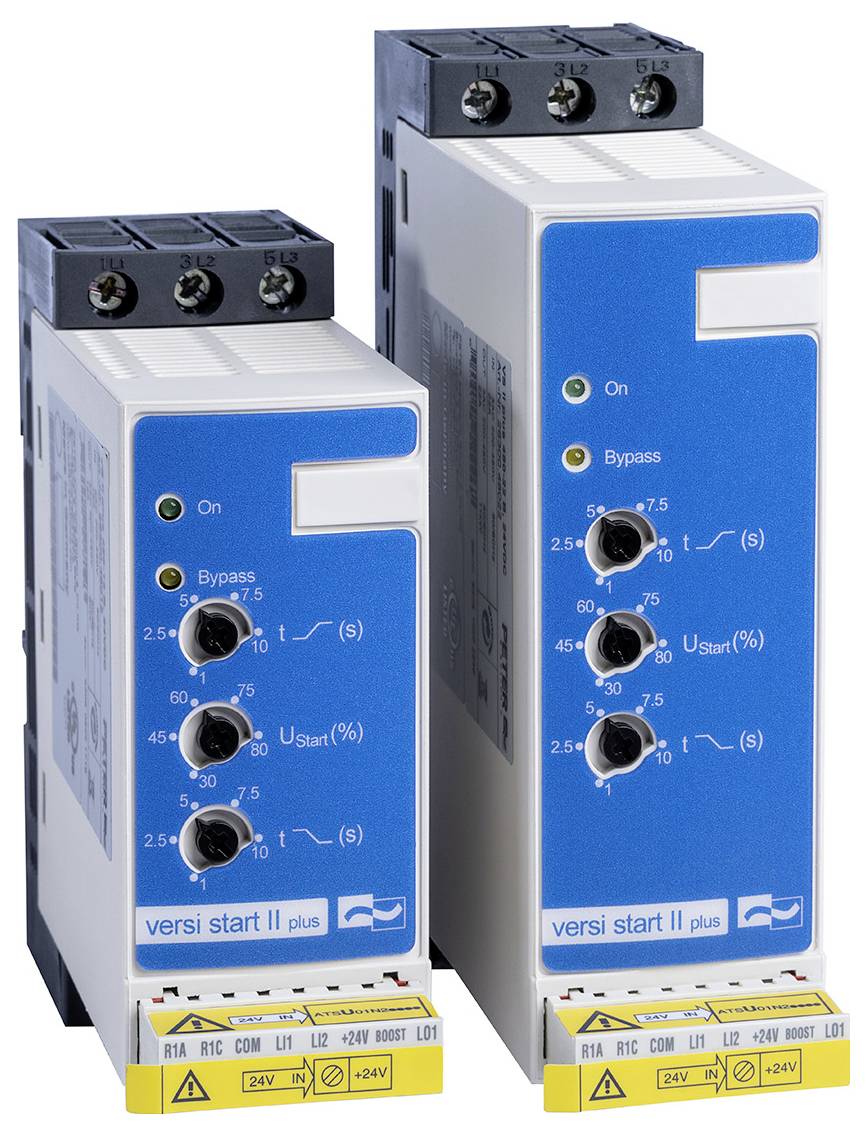

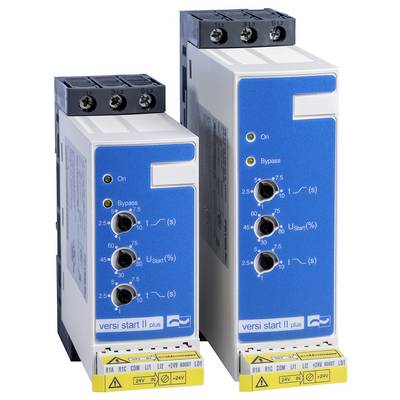

'Versi start II plus' motor protection devices with blue front panels, indicating operating modes and settings for time and voltage.

1/2

Datasheet (PDF)

Fast track dispatch on Wed, 9 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 96.63 / piece)

€ 96.63

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Soft start-up device VersiStart II plus 400-6

Two-phase-controlled soft start-up device
Microcontroller synchronised
Optimised soft start-up
Current and three-phase reduction with start-up
Simple installation, to snap open on 35 mm standard rail or directly mountable
Integrated bypass relay
Parameterization with three potentiometers
No network neutral conductor (N) required
Replacement for Stern-/Dreieckschalter Inclusive bulb
Control side screw terminals
Compact design - 45 x 124 x 131mm (6-12A)
Protection type IP20

Technical specifications

Protection class: IP20
Start-up time: 1...10s
Max. Power loss (power-up) 62 W.
Start voltage 30 - 80%
Weight: approx. 0.3 kg

Motor voltage: 3x380-415 V AC

Product type: Soft starter

Supply current: 6 A

Motor power at 400 V: 3 kW

Operating voltage: 3x380-415 V AC

Nominal voltage: 400 V AC

Operating phases: 2

Type: Two-phase-controlled, microprocessor-controlled soft start-up device

Manufacturer part #: 26300.40006

Nominal current: 6 A

Nominal current - rounded value: 6 A

Type: VersiStart II plus 400-6

Motor power at 230V / 400V: 3 kW

Slow-down time: 1...10 s

Dim: (L x W x H) 131 x 45 x 124 mm

Connection: Screw terminal

Power rating: 24 V DC

Width: 45 mm

Height: 124 mm

Length: 131 mm

Max. temperature: 50 °C

Min. temperature: -10 °C

Documents & Downloads

Datasheet

Datasheet 3715763 Peter Electronic VersiStart II plus 400-6 26300.40006 Soft starter Motor power at 400 V 3 kW 400 V AC Nominal current 6

User & Safety Instructions

User & Safety Instructions 3715763 Peter Electronic VersiStart II plus 400-6 26300.40006 Soft starter Motor power at 400 V 3 kW 400 V AC Nominal current 6

Description

The VersiStart II plus soft start units extend the 2-phase series by a further five power variants from 6 to 32A. The "Plus" offers even more robustness, high performance and high maximum switching frequency.

This text is machine translated.

Features

Soft start-up and deceleration
Potential free control input for soft acceleration and deceleration
3 separate adjustable parameters: Start-up time, start-up voltage, slow-down time
Boost start can be selected
Potential-free relay output (closed when engine is running)
