Name: Pfannenberg Combo sounder Xenon PRO X 10 10-60V DC YE Yellow Flash 24 V DC 116 dB
Brand: Pfannenberg
SKU: 3335192
Availability: BackOrder

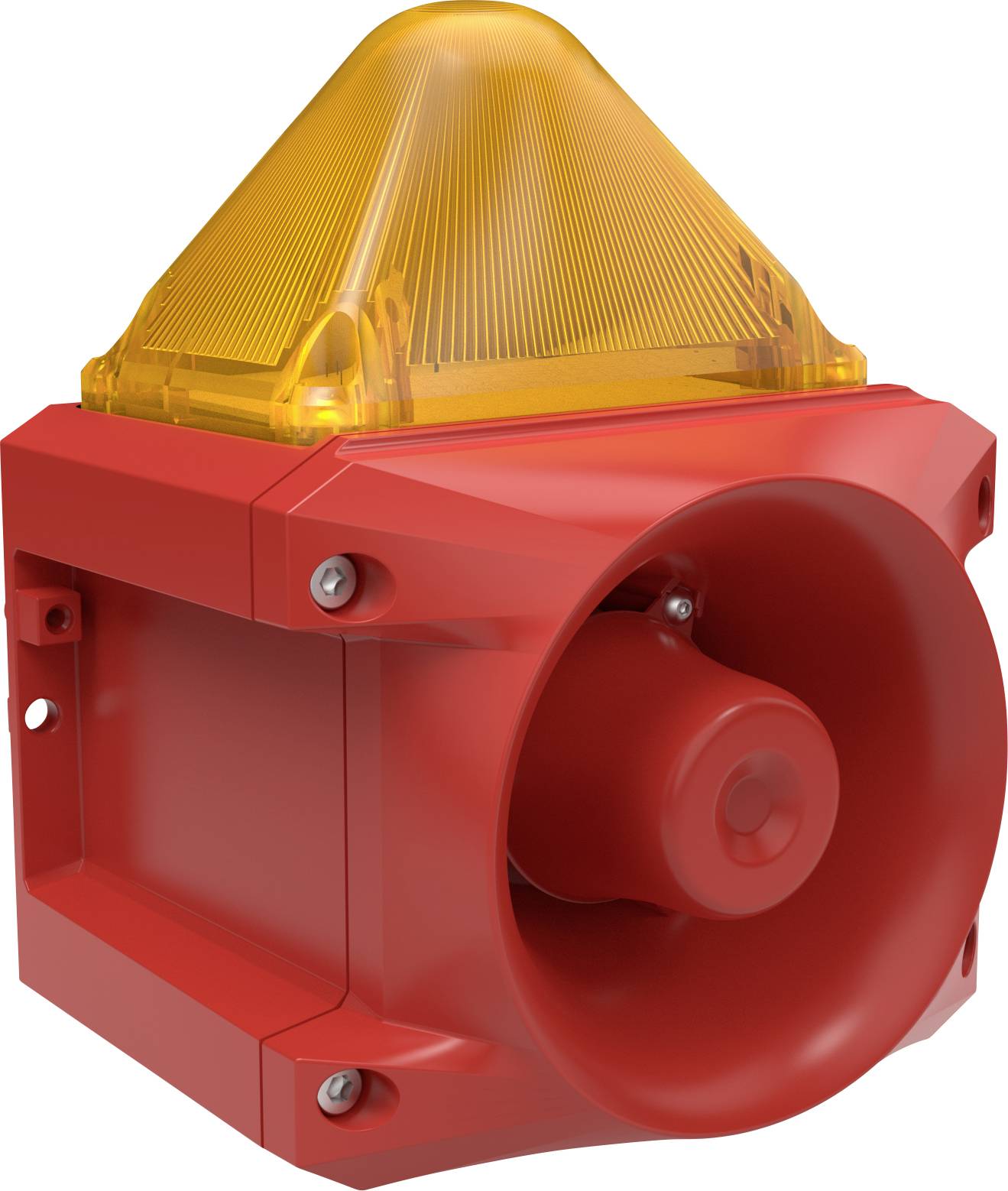

Red alarm system with speaker and yellow flashing light on the top surface, for emergency warnings in security areas.

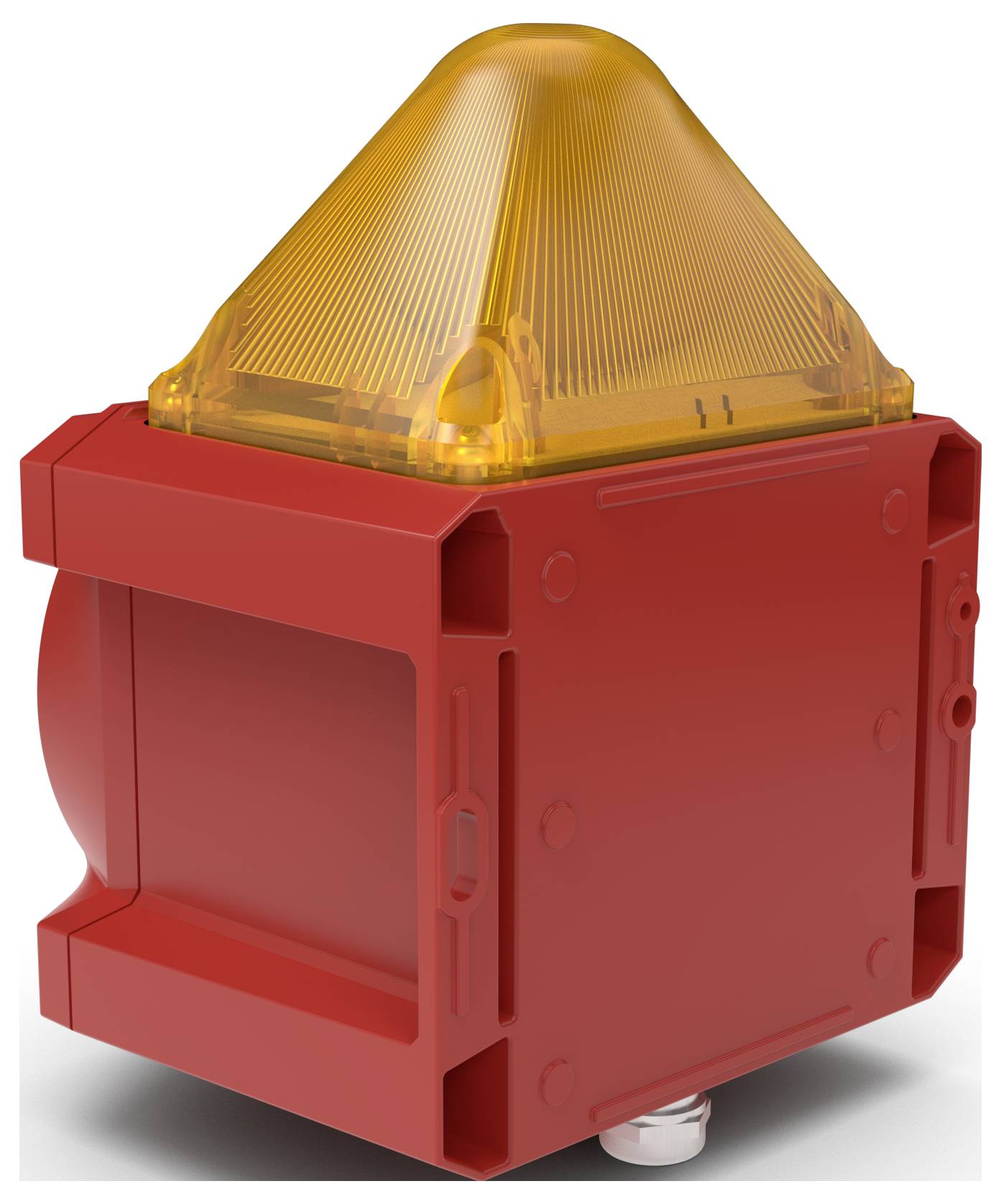

A red, cube-shaped device with a transparent, yellow-orange, dome-shaped cover on the top.

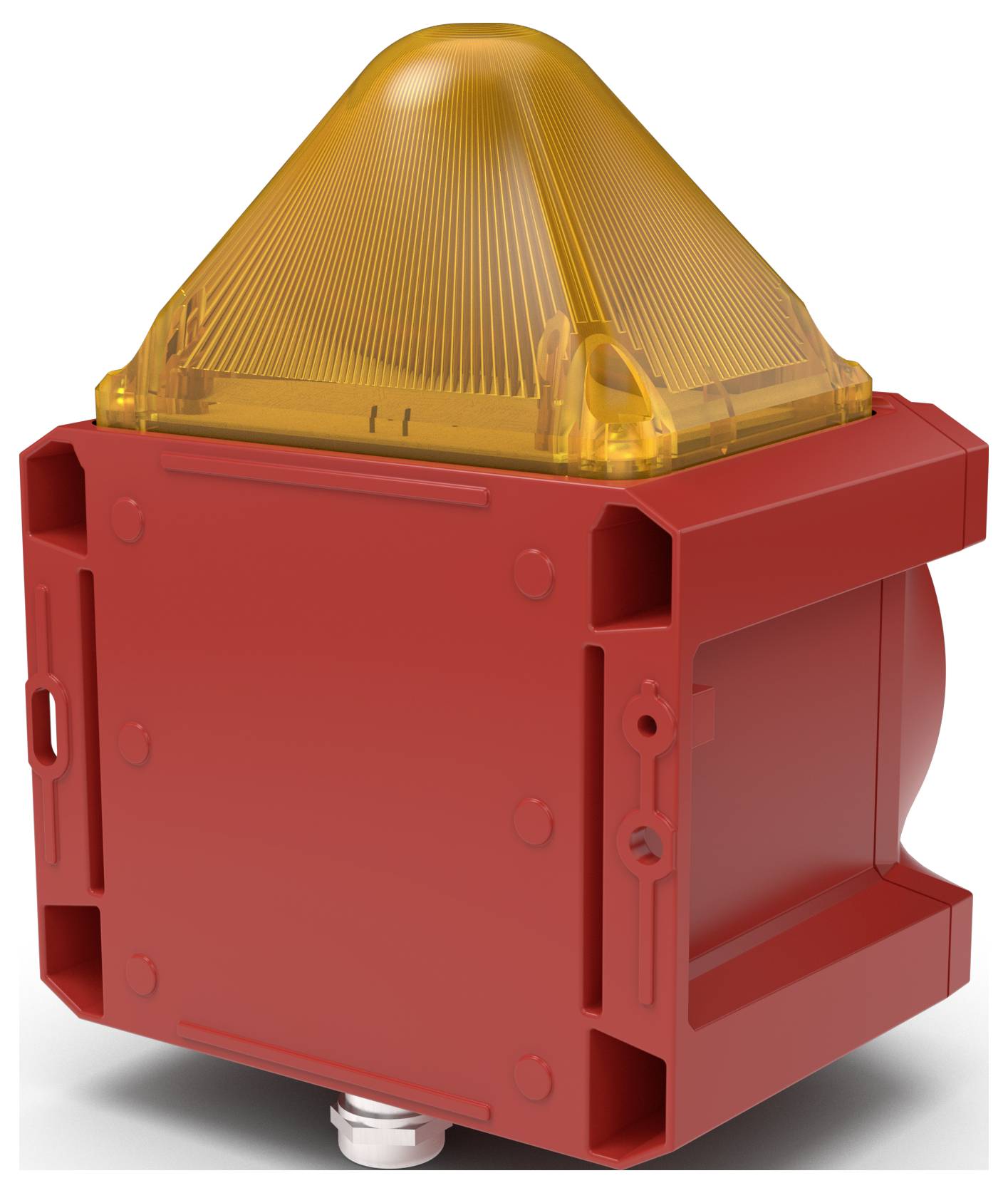

Red, square device with a yellow, conical light attachment. Possible application area: safety device or warning signal.

1/3

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 789.00 / piece)

€ 789.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Combo sounder

Operating voltage: 24 V DC

Max. current consumption: 0.96 A

Factory colour: Red

Colour: Yellow

Signal type: Flash

Features: Xenon

: IP67

No. of tones: 80

Lighted picture: Xenon flash

Material: Metal

Type: PRO X 10 10-60V DC YE

Noise emission (max.): 116 dB

: 24 V

: Red

: DC

: 116 dB

: 0.96 A

: Metal

: 80

: FALSE

: IP67

: 4X

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3335192 Pfannenberg Combo sounder Xenon PRO X 10 10-60V DC YE Yellow Flash 24 V DC 116 dB

User & Safety Instructions

User & Safety Instructions 3335192 Pfannenberg Combo sounder Xenon PRO X 10 10-60V DC YE Yellow Flash 24 V DC 116 dB

Description

Universal signal transmitter for indoor and outdoor use
- Superior ruggedness - Aluminium cast housing (IP66/67) guarantees a long service life in harsh environments
- 2-sense alarm - Barrier-free and secure signaling using 2 technologies
- Separate operation of the sound generator and lighting unit is possible
- Excellent visibility - Ideal radiation characteristics and high penetration of acoustic obstacles reduce the number of devices required
- Maximum possible signaling range with effective Xenon technology
- 4 different flash frequencies can be selected via DIP switch
- A multi-voltage power supply - Designed for operation with different voltages
- Selectable tone - 80 different tones, 3 additional tones can be selected externally
- Reduced sound pressure level - Up to 30 dB, internally or externally selectable
- Pre & main alarm - Avoidance of shock reactions due to reduced sound pressure level during pre-alarm
- Safe & easy to use - Designed with undetachable seal and screws to significantly reduce wiring and installation times
