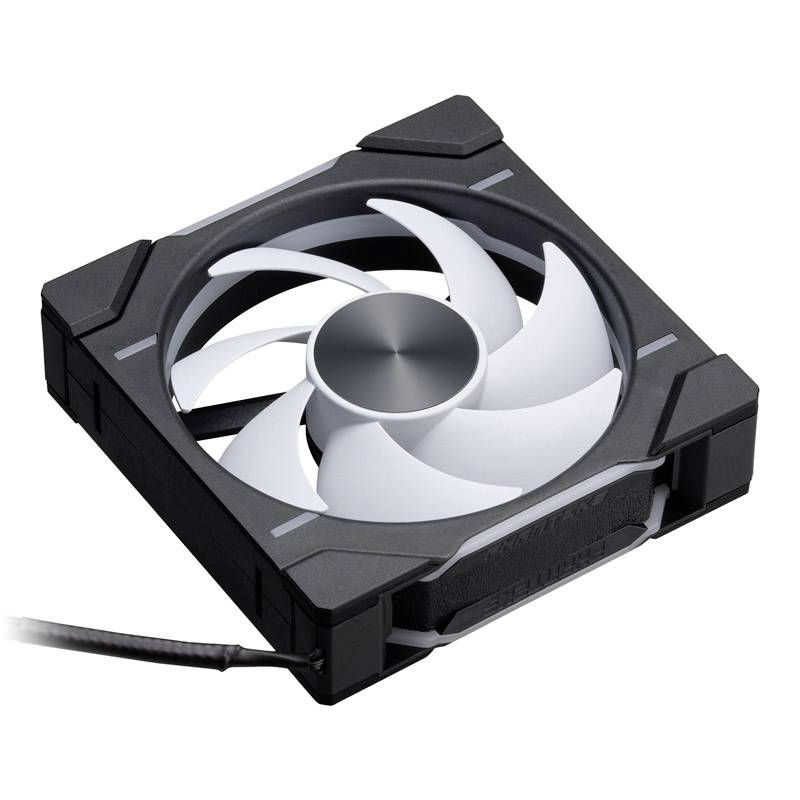

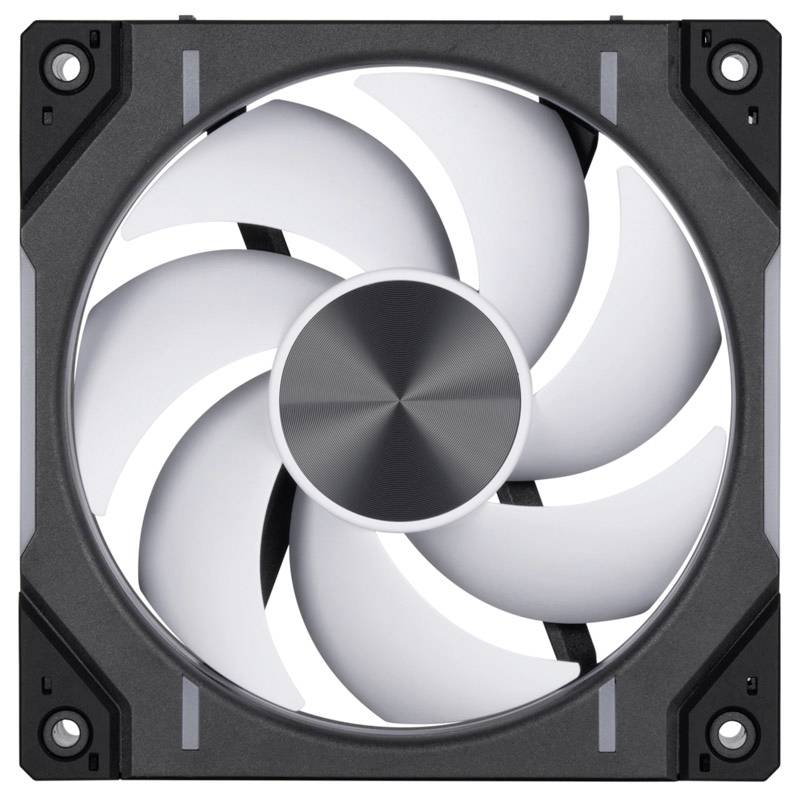

Phanteks D30 PWM Regular Airflow D-RGB PC fan Black (W x H x D) 120 x 120 x 30 mm
EAN:
Part number:
Item no:
Number
Total (€ 84.03 / piece)
€ 84.03
plus VAT.
Highlights & Details

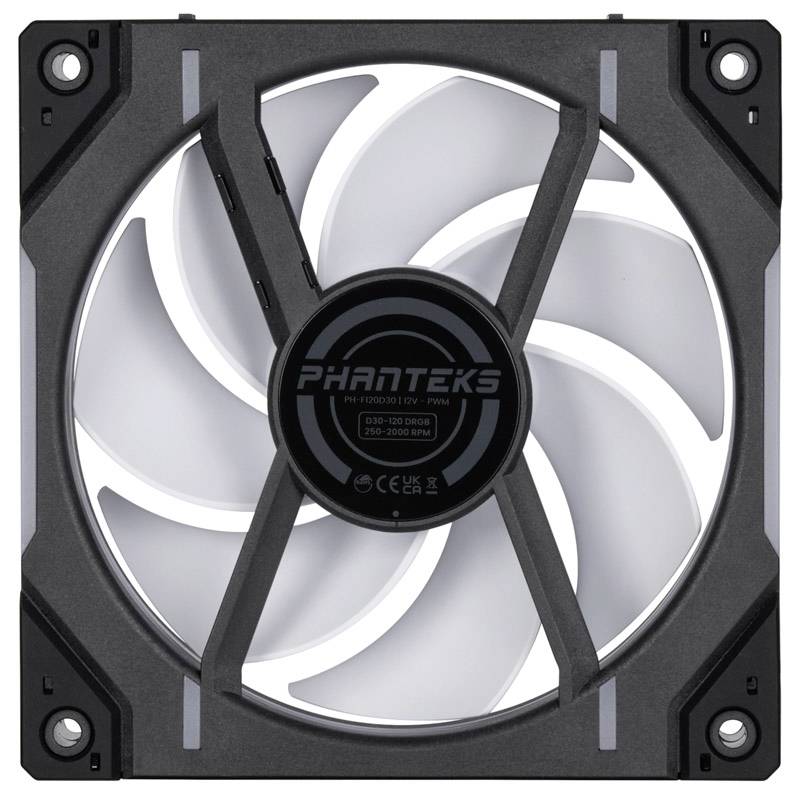

Phanteks D30 PWM Regular Airflow D-RGB PC fan

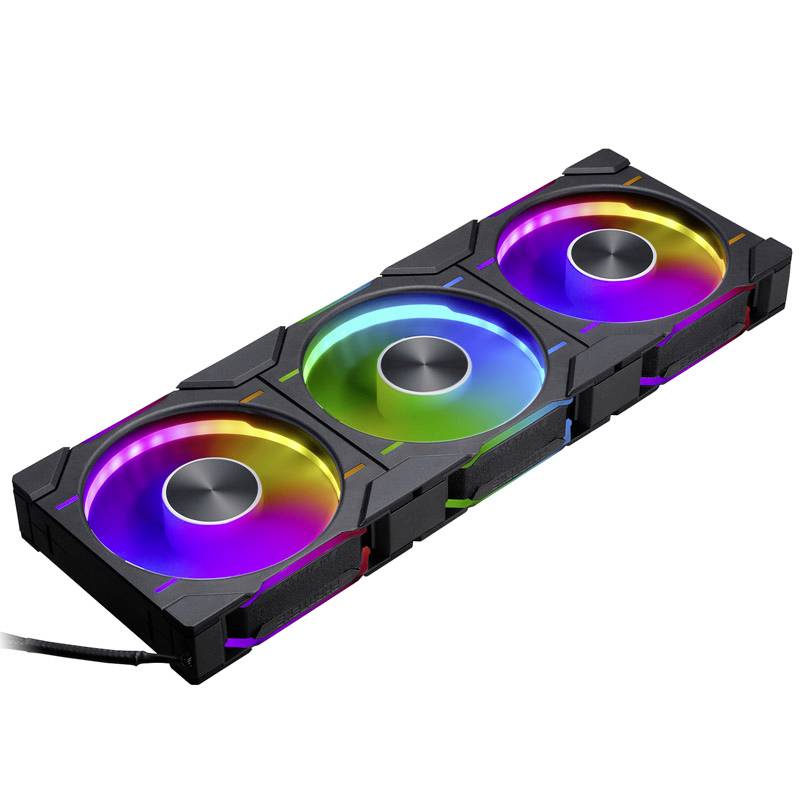

- Versatile high-end fan in white with eye-catching ARGB lighting
- Powerful PWM for use in casings or on radiators
- 30 mm depth and aerodynamic fan blades for additional cooling

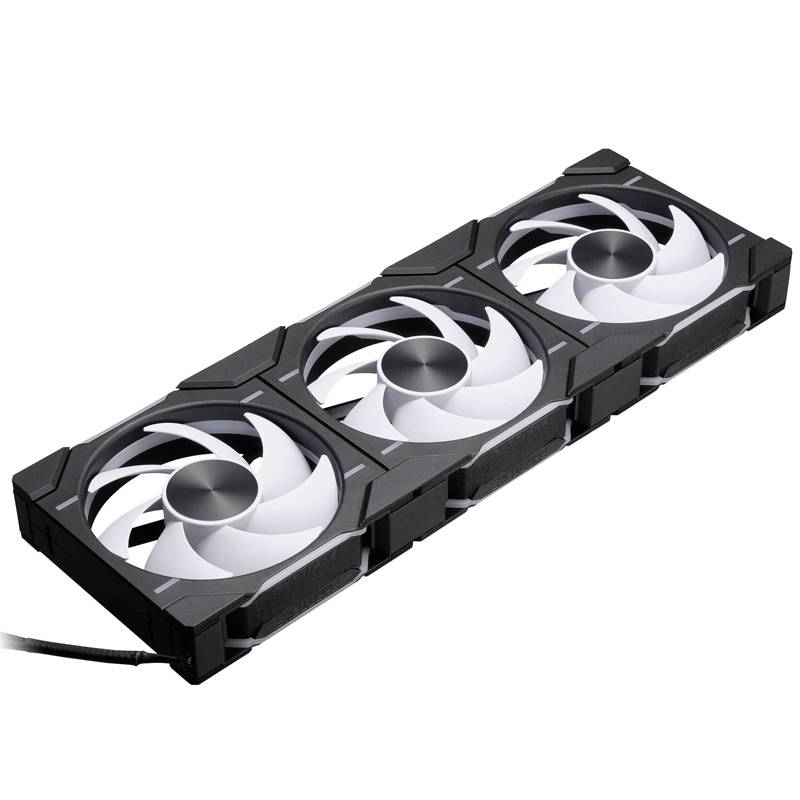

- Connect up to four fans with clips for easy daisy-chaining
- Available in Regular or Reversed Mode to hide spokes and stickers
- Including screw covers for clean builds
Technical specifications
- Material: plastic
- Bearing: Hydrodynamic
- Mode: Regular (front to back airflow)
- Pressure: Max. 3.01 mmH2O
- Current strength: Max. 0.20 A
- Voltage: 12 V
- Connections: 4-pin PWM, 3-pin JST D-RGB
- Cable length 100 mm + 500 mm
- Product type
PC fan
- Fan size
120 mm
- Noise emission (max.)
30.2 dBa
- Noise emission
30.1 dBa - 40 dBa
- Air discharge
109.24 m³/h
- Connection
4-pin PWM
- Factory colour
Black
- Weight
200 g
- Width
120 mm
- Height
120 mm
- Depth
30 mm
- Dim
(W x H x D) 120 x 120 x 30 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2875609 Phanteks D30 PWM Regular Airflow D-RGB PC fan Black (W x H x D) 120 x 120 x 30 mm
Description
The Phanteks D30-120 PWM D-RGB fans were developed to provide a high air current and static pressure. Its depth of 30 mm, powerful hydrodynamic PWM motor and aerodynamic fan blades allow them to be used to cool your housing with restrictive mesh and dust filters or on radiators. They also offer extensive daisy-chaining capabilities without the clutter. You can plug up to four of them together and connect to your motherboard for PWM and ARGB signals with just one cable.

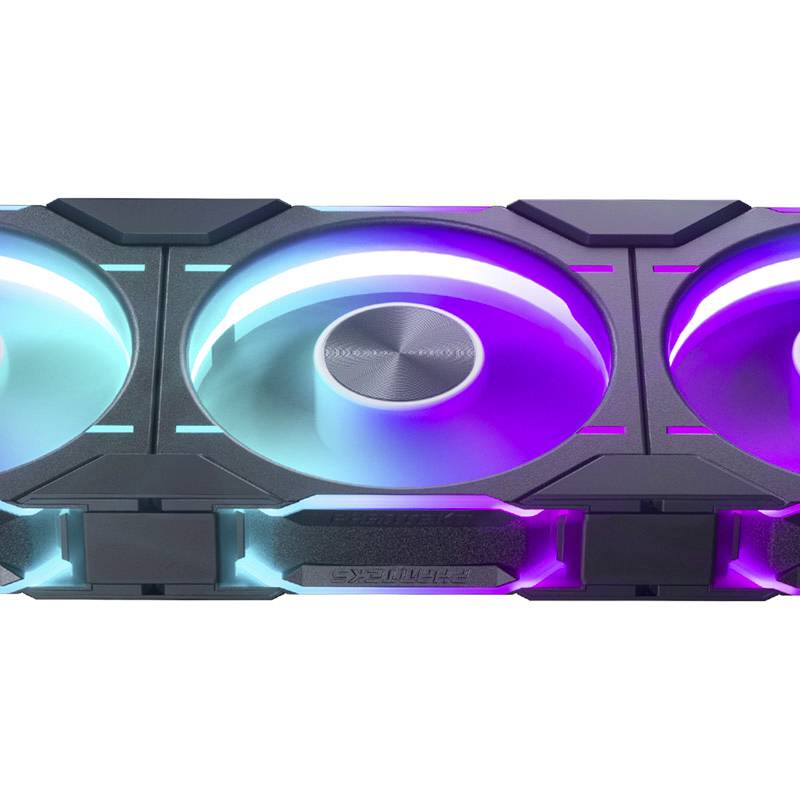

Available in Regular and Reversed Airflow modes, you can choose the model you need to hide unsightly hub stickers and spokes. It doesn't interfere with the built-in D-RGB lighting, reinforced by the reflective fan blades, and keeps your build flawless. This version runs in regular mode and directs the air from the front to the back and out of the housing.

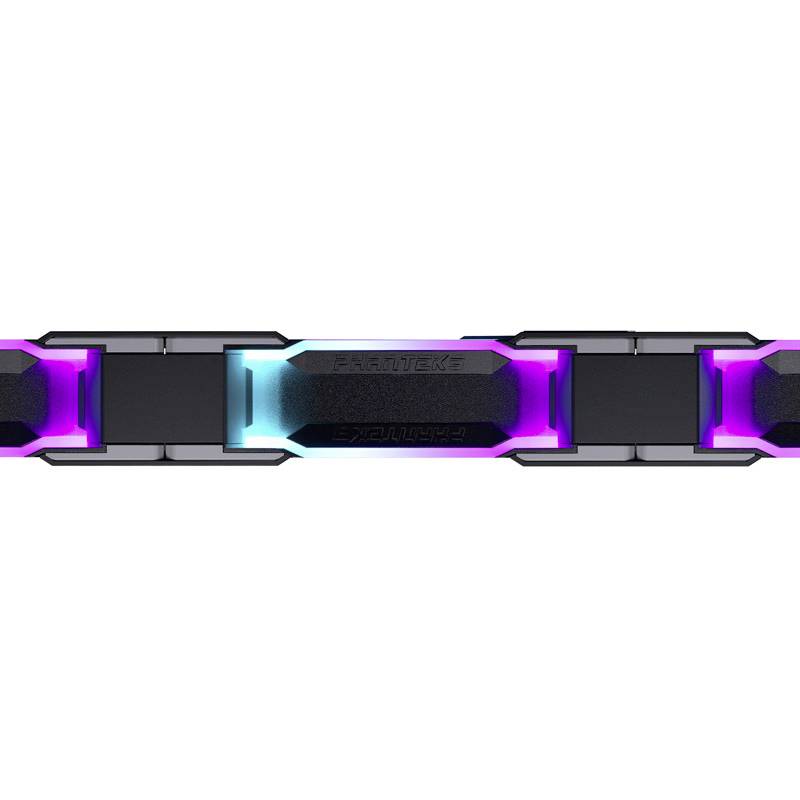

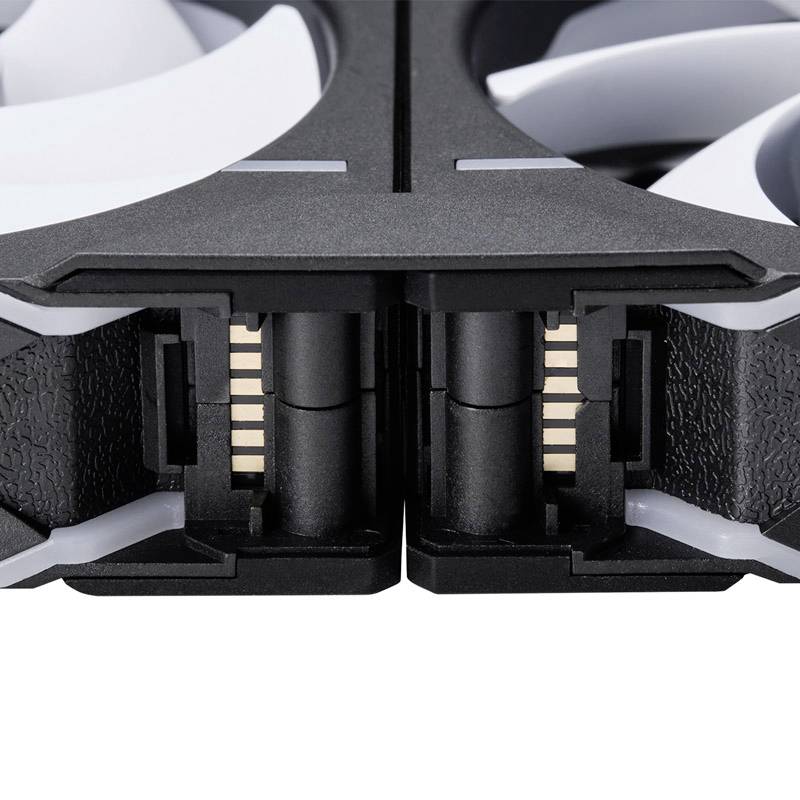

The fans can be connected together via two clips on the sides, one of which leads the current of the first fan through a total of four. This reduces the cable clutter because only the first fan must be connected to your PHANTEKS controller via a 4-pin PWM and 3-pin D-RGB-JST cable. A D-RGB to 3-pin ARGB adapter cable is supplied for direct connection to your motherboard.
This text is machine translated.
Available in Regular and Reversed Airflow modes, you can choose the model you need to hide unsightly hub stickers and spokes. It doesn't interfere with the built-in D-RGB lighting, reinforced by the reflective fan blades, and keeps your build flawless. This version runs in regular mode and directs the air from the front to the back and out of the housing.
The fans can be connected together via two clips on the sides, one of which leads the current of the first fan through a total of four. This reduces the cable clutter because only the first fan must be connected to your PHANTEKS controller via a 4-pin PWM and 3-pin D-RGB-JST cable. A D-RGB to 3-pin ARGB adapter cable is supplied for direct connection to your motherboard.
This text is machine translated.

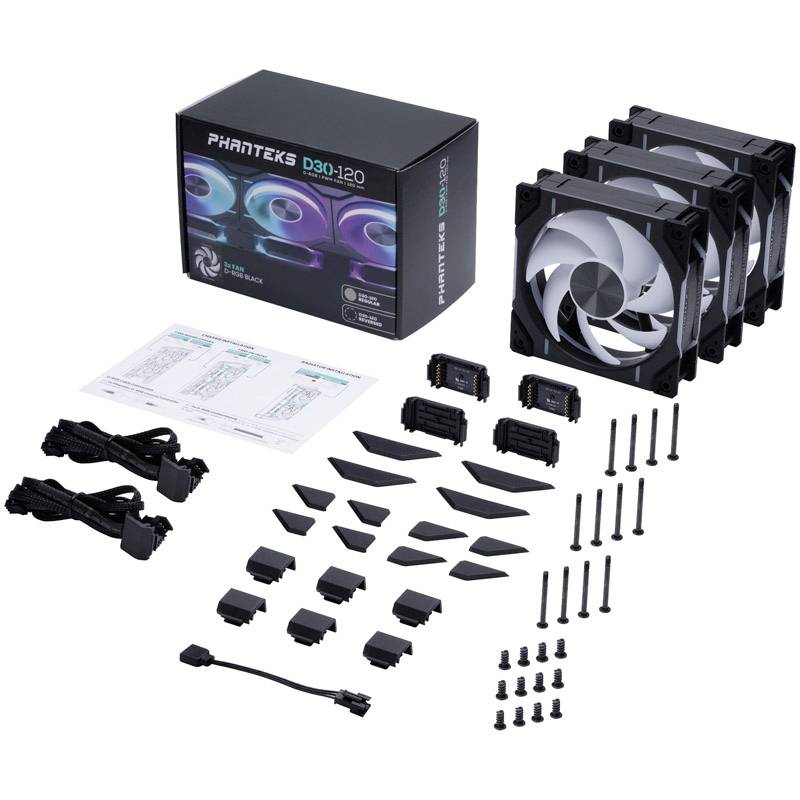

Scope of delivery
- 3x D30-120 fan

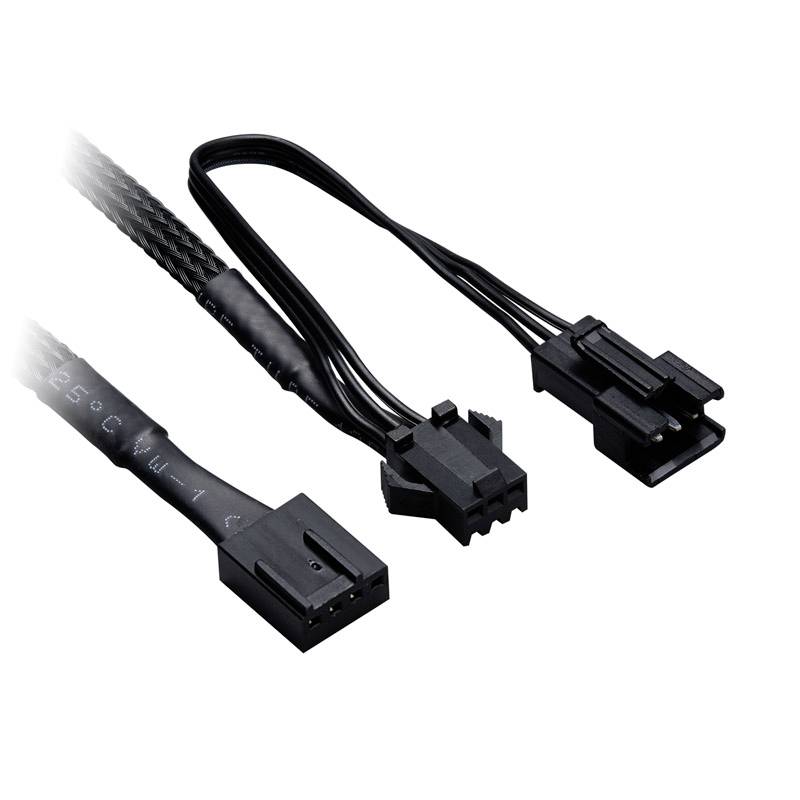

- 4-pin and 3-pin extension cable
- 2x corner connection cable
- 2x connecting bridge
- 6x corner clip
- 2x connection clip
- 4x screw coverage for the connecting bridge
- 4x screws for corners L
- 4x screw covers for corners R
- 12x fan screws
- 12x radiator screws
- D-RGB mainboard adapter
