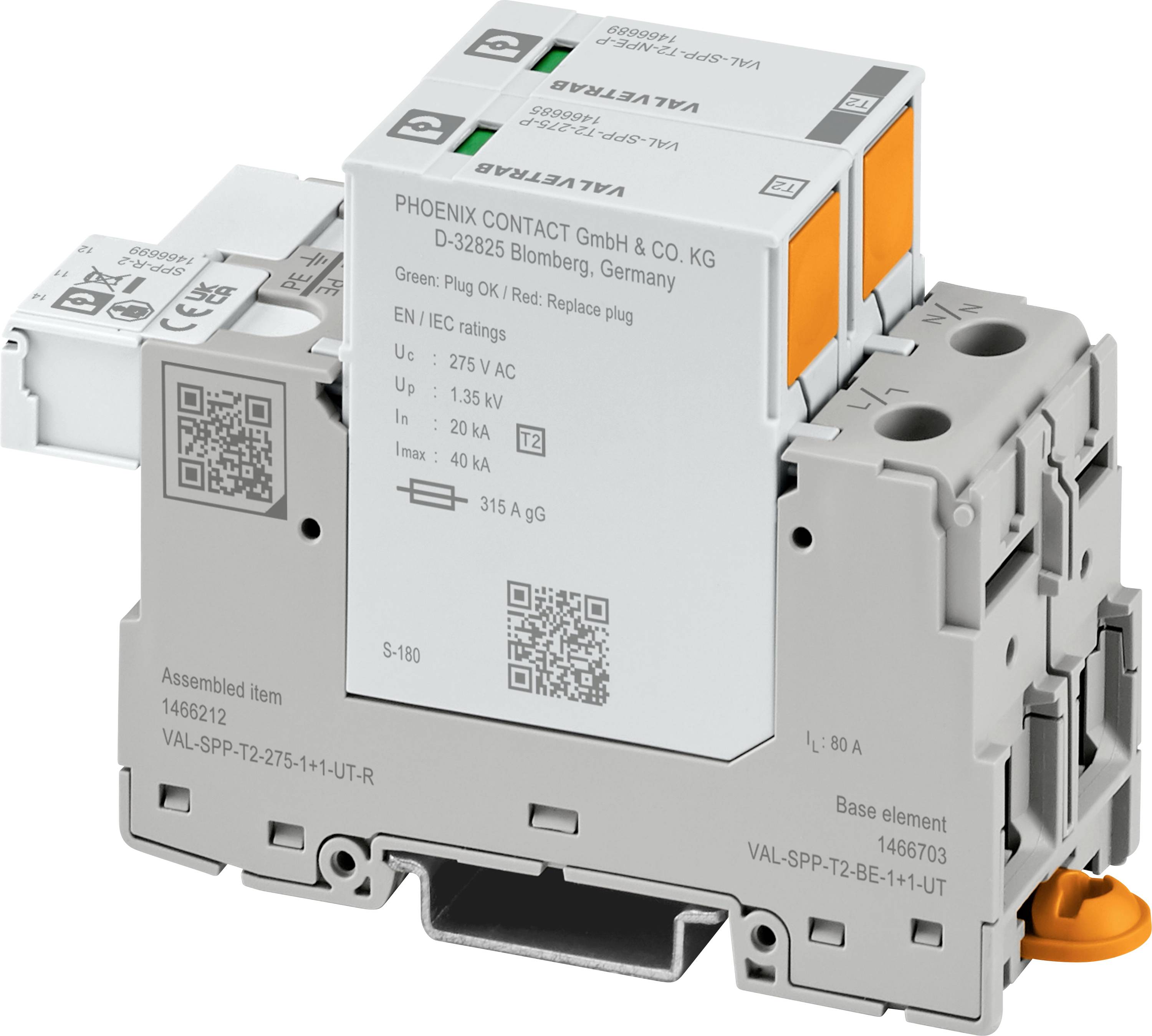

Phoenix Contact 1466212 VAL-SPP-T2-275-1+1-UT-R Surge arrester Surge protection for: Switchboards 40 kA 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 139.99 / piece)
€ 139.99
incl. VAT
14-day return policy included
Technical specifications
- Product type: Surge suppressor
- IEC test class. II; T2
- EN type T2
- POWER SUPPLY SYSTEM TN-S, TT
- Number of pins: 4
- Message Surge protection defective: Optical, telecommunication contact
- Product type
Surge arrester
- Surge protection for
Switchboards
- Leakage current
40 kA
- Pick-up time (details)
≤ 25 ns
- Operating temperature
- 40 - 85 °C
IP20
- Manufacturer part #
1466212
- Factory colour
Grey
Grey-white (RAL 7035)
- Dim
(W x H x D) 35.6 x 109.1 x 71.5 mm
- Width
35.6 mm
- Height
109.1 mm
- Depth
71.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3306580 Phoenix Contact 1466212 VAL-SPP-T2-275-1+1-UT-R Surge arrester Surge protection for: Switchboards 40 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3306580 Phoenix Contact 1466212 VAL-SPP-T2-275-1+1-UT-R Surge arrester Surge protection for: Switchboards 40 kA 1 pc(s)
Description
Surge protection with status display for analogue and digital telecommunication interfaces (VDSL up to 250 MBit/s, G.fast up to 1.5 GBit/s) in a surface-mounted casing. Alternatively snap-on
On rail. Integrated overload protection (Power-cross). RJ45 (RJ12) and push-in connections.
Pluggable surge arrester, according to Type 2 / Class II, for 1-phase power supply networks with separate N and PE (3-conductor system L1, N, PE), with telecommunication contact
Your advantages
• Easy installation in cupboards and on the wall by screw fixing and snapping on a mounting rail
• Precise function monitoring, with status display on the device
• No restriction on data transmission even at high speeds
• Tests conducted by Deutsche Telekom confirm the compatibility with VDSL, vectoring VDSL, super-vectoring VDSL (SVVDSL) and G.fast
• Safe response in the event of overload (Power-cross) through integrated cut-off mechanism and electronic current limiter
This text is machine translated.
On rail. Integrated overload protection (Power-cross). RJ45 (RJ12) and push-in connections.
Pluggable surge arrester, according to Type 2 / Class II, for 1-phase power supply networks with separate N and PE (3-conductor system L1, N, PE), with telecommunication contact
Your advantages
• Easy installation in cupboards and on the wall by screw fixing and snapping on a mounting rail
• Precise function monitoring, with status display on the device
• No restriction on data transmission even at high speeds
• Tests conducted by Deutsche Telekom confirm the compatibility with VDSL, vectoring VDSL, super-vectoring VDSL (SVVDSL) and G.fast
• Safe response in the event of overload (Power-cross) through integrated cut-off mechanism and electronic current limiter
This text is machine translated.
