Name: Phoenix Contact 1506752 SACC-M 8MS-3PCON Pre-assembled Plug Connector M8, Piercecon Fast Connection
Brand: Phoenix Contact
SKU: 748842
Availability: InStock

A silver, round plug with three visible contacts, used for industrial applications or cable connections.

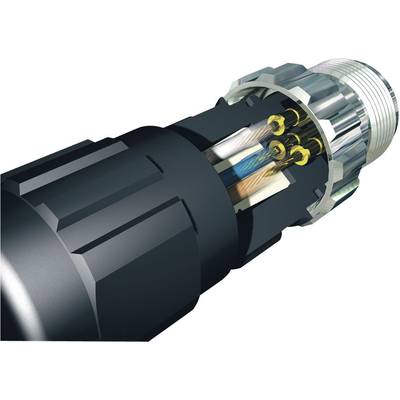

A multi-core cable with a metal plug at the end, showing various coloured cores secured by gold contacts.

1/2

Product type

Sensor/actuator connector

Connector type

Plug, straight

Connector standard

Sensor connector

Connection side A

M8 plug, straight

Connection side B

Customisable

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

40 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 23.99 / piece)

€ 23.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Phoenix Contact 1506752 SACC-M 8MS-3PCON Pre-assembled Plug Connector M8, Piercecon Fast Connection

SACC-M 8MS-3PCON
PLUSCON field

Technical specifications

Type: SACC-M 8MS-3PCON

Product type: Sensor/actuator connector

Connector type: Plug, straight

Connector standard: Sensor connector

Connection side A: M8 plug, straight

Connection side B: Customisable

No. of pins: 3

Nominal voltage: 48 V AC
60 V DC

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.38 mm²

Outside Ø: 1.33 mm

Connection: Quick-connect

Thread type connection side: M8

: IP68

Min. temperature: -25 °C

Max. temperature: +90 °C

Manufacturer part #: 1506752

Content: 1 pc(s)

Type: M8-Pin, straight

Number of pins: 3

Nominal voltage (details): 60 V

Nominal current (details): 4 A

Connector cross section: 0.14 - 0.5 mm²

Connection: Piercecon ® Fast connection

Temperature range: -25 - +90 °C

Case material: Metal

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Connection side A

No. of pins

Connection side B

Connector type

Nominal voltage

Phoenix Contact 1506752 SACC-M 8MS-3PCON Pre-assembled Plug Connector M8, Piercecon Fast Connection

Item no:748842

Fast track dispatch on Wed 4 Nov

40 Piece(s)Conrad Electronic

This article

M8 plug, straight

Customisable

Plug, straight

48 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

Phoenix Contact 1501252 SACC-M 8MS-3CON-M-SW Ready Made Attachable Connector, M8, Screw Connection Multicolour

Item no:748866

Available soon

Conrad Electronic

M8 plug, straight

Customisable

Plug, straight

48 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Phoenix Contact 1501265 SACC-M 8MS-4CON-M-SW Field Attachable Connector M8, Screw Connection Multicolour

Item no:748878

Fast track dispatch on Wed 4 Nov

76 Piece(s)Conrad Electronic

M8 plug, straight

Customisable

Plug, straight

30 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

Phoenix Contact 1506765 SACC-M 8MS-4PCON Ready-made Connector M8, Piercecon Quick Connect

Item no:748854

Fast track dispatch on Wed 4 Nov

2 Piece(s)Conrad Electronic

M8 plug, straight

Customisable

Plug, straight

30 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

Phoenix Contact 1506778 SACC-M 8FS-3PCON Prefabricated Plug Connector M8, Piercecon Quick Connection

Item no:748555

Fast track dispatch on Wed 4 Nov

5 Piece(s)Conrad Electronic

Customisable

M8 socket, straight

Socket, straight

48 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

Phoenix Contact 1506781 SACC-M 8FS-4PCON Readymade Connector M8, Piercecon Quick Connector

Item no:748567

Fast track dispatch on Wed 4 Nov

5 Piece(s)Conrad Electronic

Customisable

M8 socket, straight

Socket, straight

30 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

Phoenix Contact 1506888 SACC-M 8FS-3CON-M-SW Field Attachable Connector, M8, Screw Connector. Multicolour

Item no:748579

Available soon

Conrad Electronic

Customisable

M8 socket, straight

Socket, straight

48 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Phoenix Contact 1506891 SACC-M 8FS-4CON-M-SW Attachable Plug Connector M8, Screw Connection Multicolour

Item no:748591

Fast track dispatch on Wed 4 Nov

107 Piece(s)Conrad Electronic

Customisable

M8 socket, straight

Socket, straight

30 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

Phoenix Contact 1506914 SACC-M 8MS-4CON-M-SH Pre-fabricated Plug Connector M8, Screw Connection

Item no:748543

Fast track dispatch on Wed 4 Nov

15 Piece(s)Conrad Electronic

M8 plug, straight

Customisable

Plug, straight

30 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 32.99^*

Phoenix Contact 1506930 SACC-M 8FS-4CON-M-SH Field Attachable Connector, M8, Screw Connection

Item no:748639

Fast track dispatch on Wed 4 Nov

14 Piece(s)Conrad Electronic

Customisable

M8 socket, straight

Socket, straight

30 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 33.99^*

Documents & Downloads

Datasheet

Datasheet 748842 Phoenix Contact 1506752 SACC-M 8MS-3PCON Pre-assembled Plug Connector M8, Piercecon Fast Connection

User & Safety Instructions

User & Safety Instructions 748842 Phoenix Contact 1506752 SACC-M 8MS-3PCON Pre-assembled Plug Connector M8, Piercecon Fast Connection

Description

For quick assembly of many different cable lengths e.g. locally there is a wide range of free-field attachable connectors available. M8 Connectors are available with a classic screw or solder and the Piercecon ® Quick Connector.
For EMV applications are just shield able, free Ready-Made attachable connectors are available. One can characterise by durable, metallic covering with appropriate shielding effectiveness.
