Phoenix Contact 2313685 Sensor/actuator data cable Plug, right angle No. of pins (RJ): 9 1 pc(s) Piece

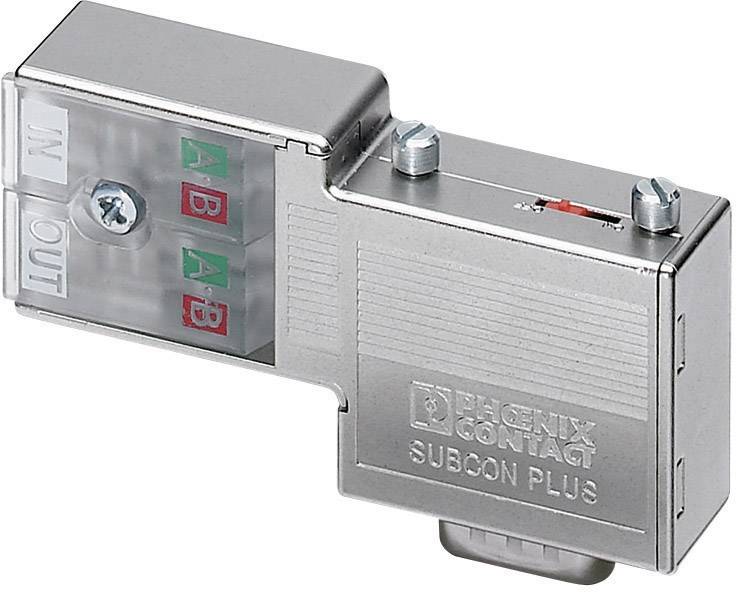

Metallic-looking adapter from Phoenix Contact with 'IN' and 'OUT' labelling, showing internal colour coding for connections.

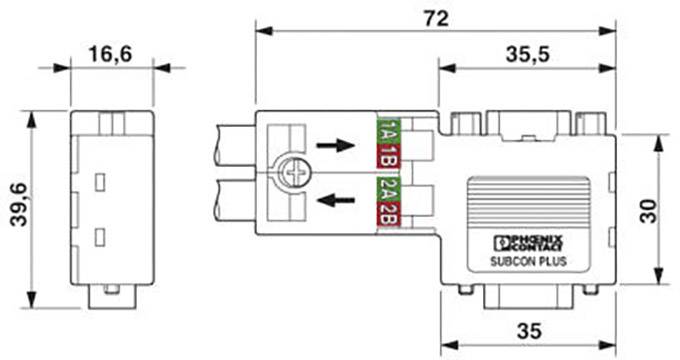

Technical drawing of an electrical connector. Dimensions: 72x39.6 mm, arrows indicating current flow direction, labelled with '1A', '1B', '2A', '2B'.

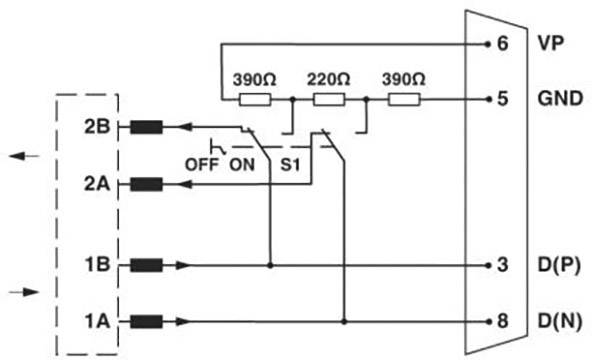

Circuit diagram of an electronic component. Connections pass through resistors to points 1A, 1B, 2A, 2B and to pins 3, 5, 6, 8.

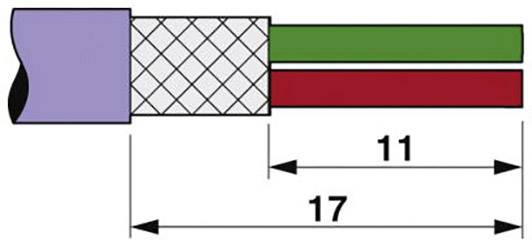

Cross-section of a cable with two wires, green and red. Cable sheath length: 17, wire length: 11.

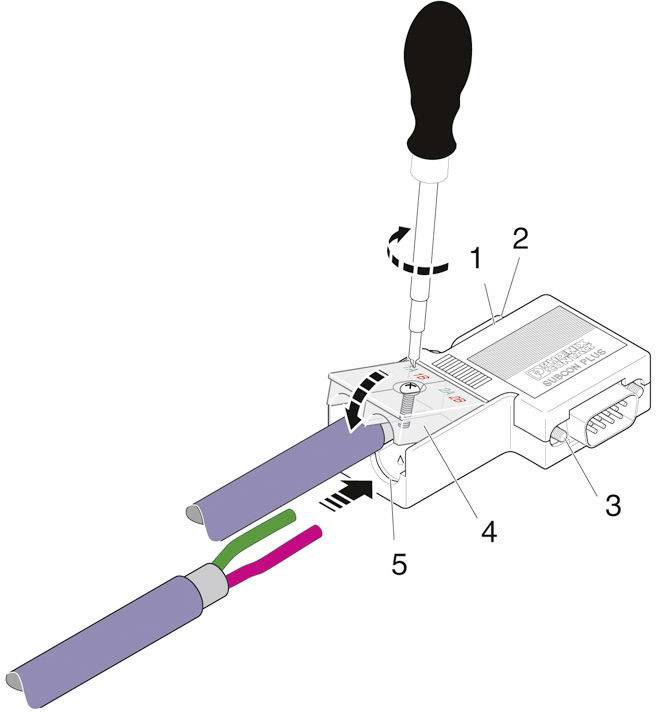

Connector Installation Instructions: 1. Turn screwdriver clockwise. 2. Insert cable. 3. Secure connection.
1/5
Product type
Sensor/actuator data cable
Connector type
Plug, right angle
Connector standard
Bus connector
Connection side A
D-SUB plug
Connection side B
Customisable
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 6 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 69.99 / piece)
€ 69.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Pin assignment: 3, 5, 6, 8
Packaging type

Piece

Type

SUBCON-PLUS-PROFIB/PG/FC 90

Product type

Sensor/actuator data cable

Connector type

Plug, right angle

Connector standard

Bus connector

Connection side A

D-SUB plug

Connection side B

Customisable

No. of pins

9

Nominal voltage

5 V

Nominal current

0.10 A

Nominal current - rounded value

100 mA

Connector cross-section (max.)

0.32 mm²

Connection

Cut & Clip

Features

I-Net Profibus

Min. temperature

-20 °C

Max. temperature

+75 °C

Manufacturer part #

2313685

Content

1 pc(s)

Cable diameter (details)

7.6 mm

9

Male

UKCA

yes
