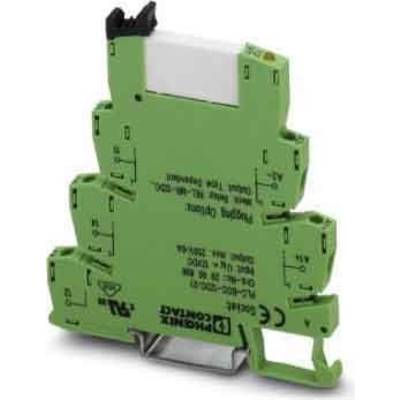

Phoenix Contact 2966265 PLC-RSC- 24DC/21AU PLC Interface Terminal
EAN:
Part number:
Item no:
Product type
Interface relay
Contact type
1 change-over
Nominal voltage
24 V AC
Switching voltage (max.)
36 V DC
30 V AC
Switching current (max.)
50 mA
Datasheet (PDF)
Technical specifications
- Product type
Interface relay
- Type
PLC-RSC- 24DC/21AU
- Connection
Screw terminal
- Contact type
1 change-over
- Contact material
AgSnO + gold plating
- Nominal voltage
24 V AC
- Switching voltage (max.)
36 V DC
30 V AC
- Switching current (max.)
50 mA
- Features
+ LED
+ flyback diode
+ reverse polarity protection
IP20
- Max. temperature
+60 °C
- Min. temperature
-40 °C
- Depth
94 mm
- Width
6.2 mm
- Height
80 mm
- Dim
(W x H x D) 6.2 x 80 x 94 mm
- Content
1 pc(s)
- Type
Screw connector
- Nominal voltage (details)
24 V DC
- Switching capacity
36 V/DC/30 V AC
- Type
PLC-RSC- 24DC/21AU
0.009 A
6.2
80 mm
94 mm
FALSE
Polarized
Mono stable
FALSE
Single contact
TRUE
Screw connection
18.5-33.6 V
Gold
IP20
TRUE
DC
0
0
1
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 505516 Phoenix Contact 2966265 PLC-RSC- 24DC/21AU PLC Interface Terminal
User & Safety Instructions
User & Safety Instructions 505516 Phoenix Contact 2966265 PLC-RSC- 24DC/21AU PLC Interface Terminal
Description
PLC-Interface, comprising of basic terminals with screw connection and pluggable miniature relay with power contact for mounting on carrying rails.
Features
- Hard gold-plated
