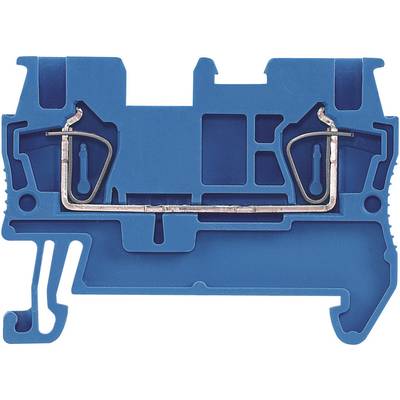

Phoenix Contact 3031089 ST 1,5 BU Tension Spring Feed-Through Terminal Blue
EAN:
Part number:
Item no:
Connection
Pull spring
Cross section (flexible) (min.)
0.08 mm²
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (min.)
0.08 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
214 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.25
10
8% = € 0.10
€ 1.15
25
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.25 / piece)
€
Highlights & Details
Phoenix Contact 3031089 ST 1,5 BU Tension Spring Feed-Through Terminal Blue
- ST 1,5 BU
Technical specifications
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
28
- AWG max.
16
- Clamp width
4.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3031089
- Content
1 pc(s)
- Industrial packaging
No
- Type
ST 1,5 BU
- Dim
(L x W x H) 48.5 x 4.2 x 36.5 mm
- Width
4.2 mm
- Height
36.5 mm
- Length
48.5 mm
- Nominal current (details)
17.5 A
- Connector cross section
flexible wires 0.08 - 1.5 mm² · rigid wires 0.08 - 1.5 mm² mm²
- Flammability rating
V0
- Connection
-
- Product type
Continuity
Documents & Downloads
Datasheet
Datasheet 744618 Phoenix Contact 3031089 ST 1,5 BU Tension Spring Feed-Through Terminal Blue
User & Safety Instructions
User & Safety Instructions 744618 Phoenix Contact 3031089 ST 1,5 BU Tension Spring Feed-Through Terminal Blue
Description
ST tension spring feed-through terminals have a space-saving design and provide optimum handling. The front connection on the ST series means that there is additional room between the cable channels for wiring. The double bridge shaft allows individual chain bridging using plug jumpers.
