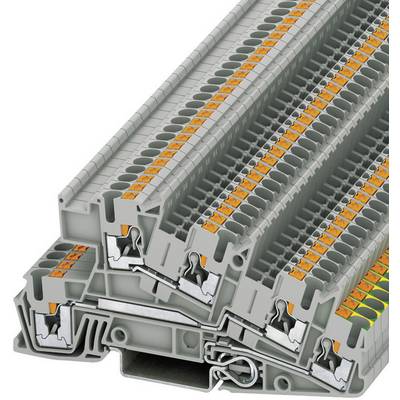

Phoenix Contact 3213949 PTI 2,5-PE/L/L Grey
EAN:
Part number:
Item no:
Connection
Quick-connect
Cross section (flexible) (min.)
0.14 mm²
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (min.)
0.14 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
10
8% = € 0.21
€ 2.55
25
10% = € 0.28
€ 2.48
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 4.11
-33 %
€
Highlights & Details
Phoenix Contact 3213949 PTI 2,5-PE/L/L Grey
- PTI 2,5-PE/L/L
Technical specifications
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
3
- Number of pins
5
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
400 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3213949
- Content
1 pc(s)
- Industrial packaging
No
- Type
PTI 2,5-PE/L/L
- Dim
(L x W x H) 101 x 5.2 x 48.6 mm
- Width
5.2 mm
- Height
48.6 mm
- Length
101 mm
- Weight
0.02
- Flammability rating
V0
- Product type
PG terminal
Documents & Downloads
Datasheet
Datasheet 746933 Phoenix Contact 3213949 PTI 2,5-PE/L/L Grey
User & Safety Instructions
User & Safety Instructions 746933 Phoenix Contact 3213949 PTI 2,5-PE/L/L Grey
Information
Information 746933 Phoenix Contact 3213949 PTI 2,5-PE/L/L Grey
Description
Low insertion forces allow the light, direct insertion of rigid and flexible ladder even with low space requirements. Each clamping point can be clearly label and is clearly visible at each terminal installation position in the distribution boards. By double bridge bays, it is three-phase systems within a terminal strip. In addition, each clamping point a test option.
This text is machine translated.
This text is machine translated.
