Name: Phoenix Contact ELR H5-IES-PT/500AC-3-IFS Magnetic starter 24 V DC 3 A Compatible with (relay brand): Phoenix Contact 1
Brand: Phoenix Contact
SKU: 1573037
Availability: BackOrder

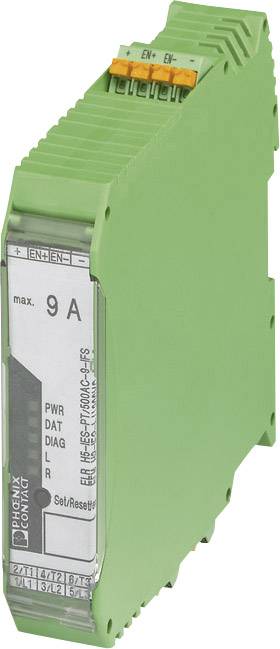

A green electrical circuit breaker with the inscription 'max. 9A'. It has connections at the top and markings on the side.

Image similar

Product type

Magnetic starter

No. of pins

3-pin

Nominal voltage

24 V DC

Current load

3 A

Connection

Pull spring

Datasheet (PDF)

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 224.99 / piece)

€ 224.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

"4-in-1" hybrid motor starter

Clockwise/anti-clockwise/motor protection / EMERGENCY STOP
4 rifle
Connection to the interface system
Adjustable overload switch-off

Technical specifications

Product type: Magnetic starter

Type: ELR H5-IES-PT/500AC-3-IFS

No. of pins: 3-pin

Nominal voltage: 24 V DC

Control voltage (min.): 19.2 V DC

Control voltage (max.): 30 V DC

Control voltage range: 19.2 - 30 V DC

Switching voltage (min.): 42 V AC

Switching voltage (max.): 550 V AC

Permanent current (max.): 3 A

Current load: 3 A

Compatible with: Phoenix Contact

Compatible with series: Phoenix Contact ELR H5 series

Mounting type: DIN rail

Connection: Pull spring

: IP20

Min. temperature: -5 °C

Max. temperature: +60 °C

Width: 99 mm

Height: 22.5 mm

Depth: 114.5 mm

Dim: (W x H x D) 99 x 22.5 x 114.5 mm

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1573037 Phoenix Contact ELR H5-IES-PT/500AC-3-IFS Magnetic starter 24 V DC 3 A Compatible with (relay brand): Phoenix Contact 1

User & Safety Instructions

User & Safety Instructions 1573037 Phoenix Contact ELR H5-IES-PT/500AC-3-IFS Magnetic starter 24 V DC 3 A Compatible with (relay brand): Phoenix Contact 1

Description

The Alarms 3-phase hybrid motor starter with turn function and current monitoring provides the following functions: clockwise, anti-clockwise rotation, motor overload protection, EMERGENCY-STOP up to Performance Level PLe, connection to the interface system via the DIN rail bus connector (TBUS). By the internal locking circuit and load wiring the wiring effort is reduced to a minimum.
