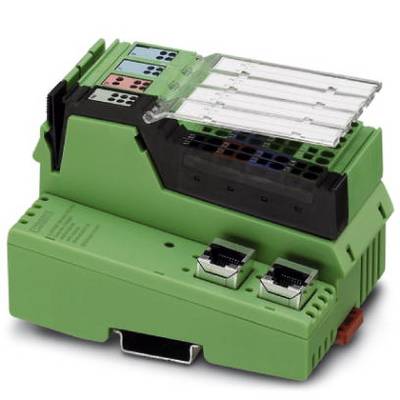

Phoenix Contact IL PN BK DI8 DO4 2TX-PAC 2703994 PLC add-on module 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 373.95 / piece)
€ 373.95
plus VAT.
Technical specifications
- Product type
PLC add-on module
- Type
IL PN BK DI8 DO4 2TX-PAC
- No. of digital inputs (max.)
8
- No. of inputs (max.)
8
- No. of outputs (max.)
4
- Connectable in-line terminals
63
- No. of inputs
8 x
- No. of outputs
4 x
- Max. output current per channel
500 mA
- Min. operating voltage
19.2 V DC
- Operating voltage
19.2 - 30 V DC
- Max. operating voltage
30 V DC
- Operating voltage
24 V DC
- Height
119.8 mm
- Length
71.5 mm
- Width
80 mm
IP20
- Dim
(L x W x H) 71.5 x 80 x 119.8 mm
- Connection
Inline data shunter
- Field bus system
PROFINET
- Manufacturer part #
2703994
- Max. ambient temperature
55 °C
- Min. ambient temperature
-25 °C
- Logic voltage UL
7.5 V DC
80
120.4 mm
70.23 mm
FALSE
DC
TRUE
None
None
FALSE
FALSE
IP20
None
19.2-30 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 193375 Phoenix Contact IL PN BK DI8 DO4 2TX-PAC 2703994 PLC add-on module 24 V DC
User & Safety Instructions
User & Safety Instructions 193375 Phoenix Contact IL PN BK DI8 DO4 2TX-PAC 2703994 PLC add-on module 24 V DC
Description
PROFINET bus coupler, 8 inputs, 24 V DC, 4 outputs, 24 V DC, 500 mA, complete with I/O connectors
