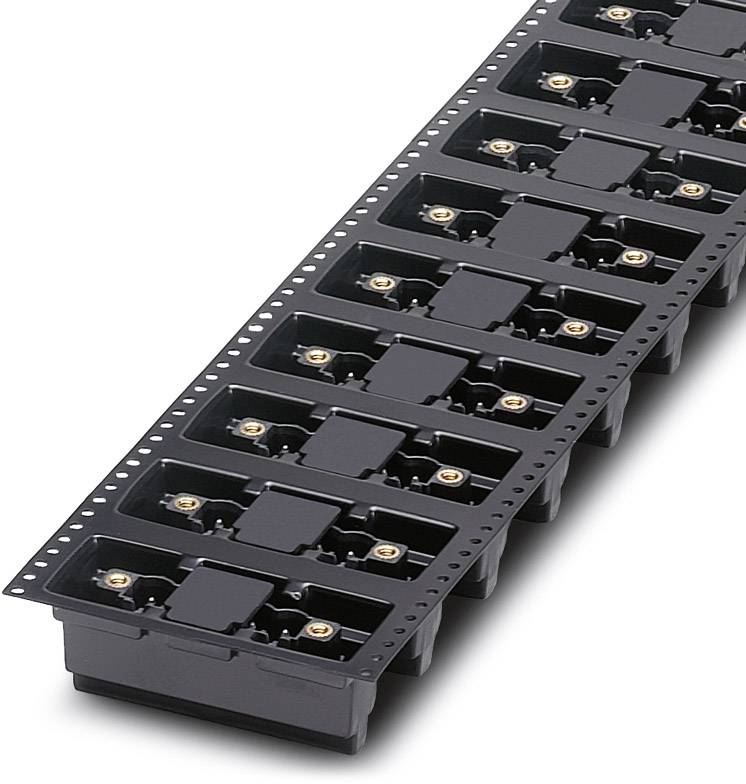

Image similar
Phoenix Contact Pin housing PCB CCV Total number of pins 3 Contact spacing: 5.08 mm 1955756 140 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing PCB
Connector type
Plug, vertical mount
No. of rows
1
Series
CCV
CS
5.08 mm
Datasheet (PDF)
Number (Package size 140 pc(s))
Total (€ 2.49 / piece)
€ 349.00
incl. VAT
Only 7 Set(s) available
Highlights & Details
Base strip CCV 2,5/ 3-GF-5,08 P26THRR56
- Content: 140 pc(s)
- No. of rows: 1
- Total number of pins: 3
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, vertical mount
- No. of rows
1
- Connector system
wire-to-board
- Series
CCV
- Features
+ screw lock
for THR soldering
- CS
5.08 mm
- Pins per row
3
- Total number of pins
3
- Width
25.40 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Content
140 pc(s)
- Dim
(L x W x H) 8.60 x 25.40 x 14.60 mm
- Connection
Print
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
1955756
- Factory colour
Black
- Industrial packaging
Yes
- Contact material
Tin plated
- Nominal voltage
320 V
- Height
14.60 mm
- Length
8.60 mm
- Connector orientation
Perpendicular (to the PCB)
- Type
CCV 2,5/ 3-GF-5,08 P26THRR56
Documents & Downloads
Datasheet
Datasheet 569127 Phoenix Contact Pin housing PCB CCV Total number of pins 3 Contact spacing: 5.08 mm 1955756 140 pc(s)
User & Safety Instructions
User & Safety Instructions 569127 Phoenix Contact Pin housing PCB CCV Total number of pins 3 Contact spacing: 5.08 mm 1955756 140 pc(s)
Description
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5.08 mm, Color: Black, Contact surface: Tin, Assembly: SMD/THT/THR, User information and design recommendations for through hole reflow technology can be found under ¿Downloads¿
