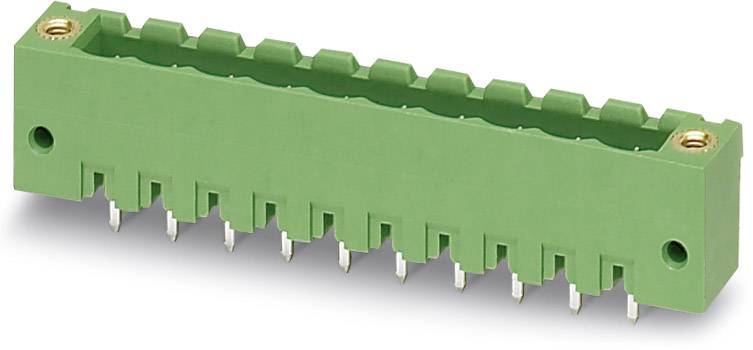

Image similar
Phoenix Contact Pin housing PCB MSTBV Total number of pins 3 Contact spacing: 5 mm 1776896 250 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing PCB
Connector type
Plug, horizontal mount
No. of rows
1
Series
MSTBV
CS
5 mm
Datasheet (PDF)
Number (Package size 250 pc(s))
Total (€ 1.72 / piece)
€ 429.00
incl. VAT
Only 2 Set(s) available
Highlights & Details
Base strip MSTBV 2,5/ 3-GF
- Content: 250 pc(s)
- No. of rows: 1
- Total number of pins: 3
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, horizontal mount
- No. of rows
1
- Connector system
wire-to-board
- Series
MSTBV
- Features
closed
encodable
+ screw lock
- CS
5 mm
- Pins per row
3
- Total number of pins
3
- Width
25.00 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Content
250 pc(s)
- Dim
(L x W x H) 8.60 x 25.00 x 15.90 mm
- Connection
Print
- Manufacturer part #
1776896
- Factory colour
Green
- Industrial packaging
Yes
- Contact material
Tin plated
- Nominal voltage
320 V
- Height
15.90 mm
- Length
8.60 mm
- Connector orientation
Perpendicular (to the PCB)
- Type
MSTBV 2,5/ 3-GF
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 569130 Phoenix Contact Pin housing PCB MSTBV Total number of pins 3 Contact spacing: 5 mm 1776896 250 pc(s)
User & Safety Instructions
User & Safety Instructions 569130 Phoenix Contact Pin housing PCB MSTBV Total number of pins 3 Contact spacing: 5 mm 1776896 250 pc(s)
Description
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Color: green, Contact surface: Tin, Assembly: Soldering
