Phoenix Contact PP-RJ-RJ-F Patch panel

A grey electrical device with two Ethernet ports, labelled 'X1' and 'X2'.

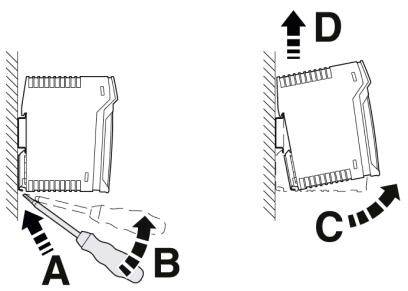

'The figure shows how a card is removed from a slot by leveraging a screwdriver. Arrows A, B on the left and C, D on the right indicate the direction of movement.'

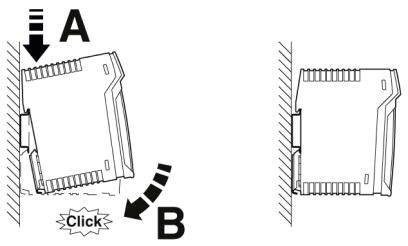

Step A: Press down the top of the device. Step B: Pivot the lower edge forward until a click is audible.' Installation instructions for the device.
Drawing of a technical connector labelled 'X1'. An arrow points to the 'SC' marking beneath the connector.
'Diagram with two network connections, numbered 1 at the top and 2 at the bottom.'
Circuit diagram of a rectifier: Shows a series of diodes and capacitors for converting alternating current to direct current.

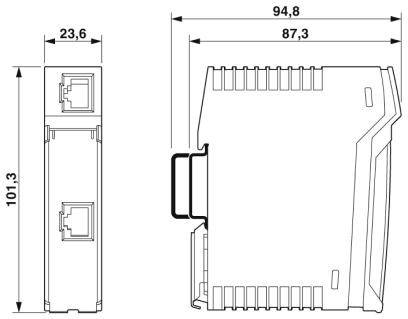

Technical drawing of a rectangular module with dimensions: width 94.8 mm, height 101.3 mm, depth 23.6 mm, showing two RJ45 ports.
1/7
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Ambient temperature (operating): -40 °C - +75 °C.
  • Ambient temperature (storage/transport): -40 °C - +85 °C.
  • Protection class: IP20
  • Net weight 124.2 g
  • Material casing: Plastic
  • Colour: grey
  • Transmission length 100 m (incl. patch cables)
  • Maximum output power: 725 mA
  • Maximum output power 60 W.
  • Rated insulation voltage 85 V/DC
Product type

Patch panel

Transfer rate

10 / 100 / 1000 MBit/s

Width

23.8 mm

Height

101.3 mm

Length

86 mm

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2137039 Phoenix Contact PP-RJ-RJ-F Patch panel

User & Safety Instructions

User & Safety Instructions 2137039 Phoenix Contact PP-RJ-RJ-F Patch panel

Description

Safe shield connection to ground potential.

This text is machine translated.
