Name: Phoenix Contact Socket housing cable GFKC Total number of pins 5 Contact spacing: 7.62 mm 1939662 50 pc(s)
Brand: Phoenix Contact
SKU: 568574
Availability: InStock

Green-orange push-in terminal block for connecting electrical conductors in a circuit, suitable for printed circuit board mounting.

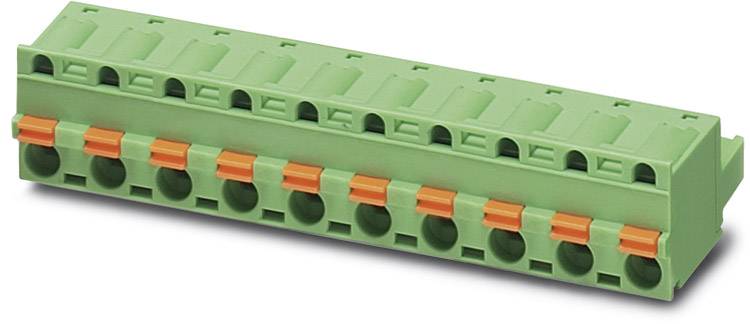

Image similar

Product type

Socket housing cable

Connector type

Socket, straight

No. of rows

Series

GFKC

7.62 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 11 Nov

9 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 3.50 / piece)

€ 174.99

incl. VAT

Only 9 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Printed-circuit board connector GFKC 2,5/ 5-ST-7,62

Content: 50 pc(s)
No. of rows: 1
Total number of pins: 5

Technical specifications

Product type: Socket housing cable

Connector type: Socket, straight

No. of rows: 1

Connector system: wire-to-board

Series: GFKC

Features: + push-in spring bracket

CS: 7.62 mm

Pins per row: 5

Total number of pins: 5

Width: 36.18 mm

Nominal current: 12 A

Nominal current - rounded value: 12 A

Content: 50 pc(s)

AWG max.: 12

AWG (min.): 24

Stripping length (max.): 10.00 mm

Dim: (L x W x H) 15.00 x 36.18 x 25.60 mm

Connection: Spring-loaded terminal
Plug

Actuation direction: Perpendicular (to the PCB)

Manufacturer part #: 1939662

Factory colour: Green

Industrial packaging: Yes

Contact material: Tin plated

Connector contact surface: Tin plated

Nominal voltage: 630 V

Height: 25.60 mm

Length: 15.00 mm

max. cross section: 2.5 mm²

Min. cross section: 0.2 mm²

Type: GFKC 2,5/ 5-ST-7,62

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 568574 Phoenix Contact Socket housing cable GFKC Total number of pins 5 Contact spacing: 7.62 mm 1939662 50 pc(s)

User & Safety Instructions

User & Safety Instructions 568574 Phoenix Contact Socket housing cable GFKC Total number of pins 5 Contact spacing: 7.62 mm 1939662 50 pc(s)

Description

Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 5, Pitch: 7.62 mm, Connection method: Spring-cage conn., Color: green, Contact surface: Tin, COMBICON plug-in connectors may only be activated under no load conditions. If for operating reasons small loads must be switched, experimental values are available upon request.
