Name: Phoenix Contact Socket housing cable PT Total number of pins 14 Contact spacing: 5 mm 1755703 50 pc(s)
Brand: Phoenix Contact
SKU: 568697
Availability: BackOrder

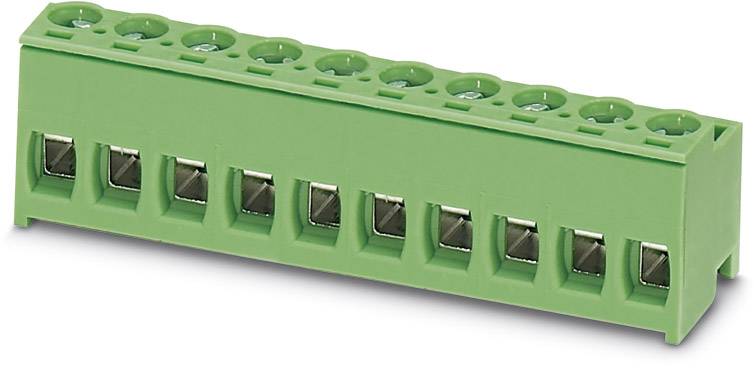

Green electric connector with multiple terminal blocks, used for printed circuit board connections in electronic devices.

Image similar

Product type

Socket housing cable

Connector type

Socket, straight

No. of rows

Series

5 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon, 4 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 4.60 / piece)

€ 229.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PCB terminal block PT 1,5/14-PH-5,0

Content: 50 pc(s)
No. of rows: 1
Total number of pins: 14

Technical specifications

Product type: Socket housing cable

Connector type: Socket, straight

No. of rows: 1

Connector system: wire-to-board

Series: PT

Features: + extractor sleeve

CS: 5 mm

Pins per row: 14

Total number of pins: 14

Width: 70.00 mm

Nominal current: 10 A

Nominal current - rounded value: 10 A

Content: 50 pc(s)

AWG max.: 12

AWG (min.): 26

Stripping length (max.): 6.00 mm

Dim: (L x W x H) 12.20 x 70.00 x 13.15 mm

Connection: Screw terminal
Plug

Manufacturer part #: 1755703

Factory colour: Green

Industrial packaging: Yes

Contact material: Tin plated

Connector contact surface: Tin plated

Nominal voltage: 400 V

Height: 13.15 mm

Length: 12.20 mm

max. cross section: 2.5 mm²

Min. cross section: 0.2 mm²

Type: PT 1,5/14-PH-5,0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 568697 Phoenix Contact Socket housing cable PT Total number of pins 14 Contact spacing: 5 mm 1755703 50 pc(s)

User & Safety Instructions

User & Safety Instructions 568697 Phoenix Contact Socket housing cable PT Total number of pins 14 Contact spacing: 5 mm 1755703 50 pc(s)

Description

Plug component, Nominal current: 10 A, Rated voltage (III/2): 400 V, Number of positions: 14, Pitch: 5 mm, Connection method: Screw connection, Color: green, Contact surface: Tin

Description

Plug component, Nominal current: 10 A, Rated voltage (III/2): 400 V, Number of positions: 14, Pitch: 5 mm, Connection method: Screw connection, Color: green, Contact surface: Tin
