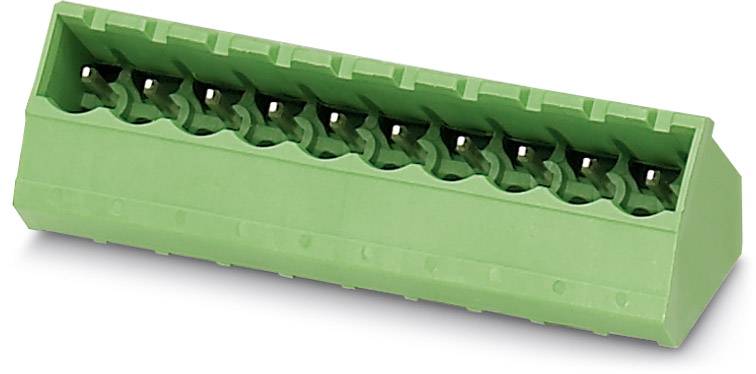

Image similar
Phoenix Contact Socket housing cable SMSTBA Total number of pins 4 Contact spacing: 5.08 mm 1767397 100 pc(s)
EAN:
Part number:
Item no:
Product type
Socket housing cable
Connector type
Socket, straight
No. of rows
1
Series
SMSTBA
CS
5.08 mm
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 1.05 / piece)
€ 104.99
incl. VAT
14-day return policy included
Highlights & Details
Base strip SMSTBA 2,5/ 4-G-5,08
- Content: 100 pc(s)
- No. of rows: 1
- Total number of pins: 4
Technical specifications
- Product type
Socket housing cable
- Connector type
Socket, straight
- No. of rows
1
- Connector system
wire-to-board
- Series
SMSTBA
- CS
5.08 mm
- Pins per row
4
- Total number of pins
4
- Width
22.32 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Content
100 pc(s)
- Dim
(L x W x H) 14.80 x 22.32 x 16.50 mm
- Connection
Print
- Manufacturer part #
1767397
- Factory colour
Green
- Industrial packaging
Yes
- Contact material
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
320 V
- Height
16.50 mm
- Length
14.80 mm
- Connector orientation
At an angle (to the PCB)
- Type
SMSTBA 2,5/ 4-G-5,08
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 569231 Phoenix Contact Socket housing cable SMSTBA Total number of pins 4 Contact spacing: 5.08 mm 1767397 100 pc(s)
User & Safety Instructions
User & Safety Instructions 569231 Phoenix Contact Socket housing cable SMSTBA Total number of pins 4 Contact spacing: 5.08 mm 1767397 100 pc(s)
Description
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 4, Pitch: 5.08 mm, Color: green, Contact surface: Tin, Assembly: Soldering
Frequently Bought Together
(*All information is plus legal VAT) This article
Conrad Electronic
€ 104.99*
Total price:
€ 110.98*
What kind of Pin Headers, Receptacles systems are you looking for?

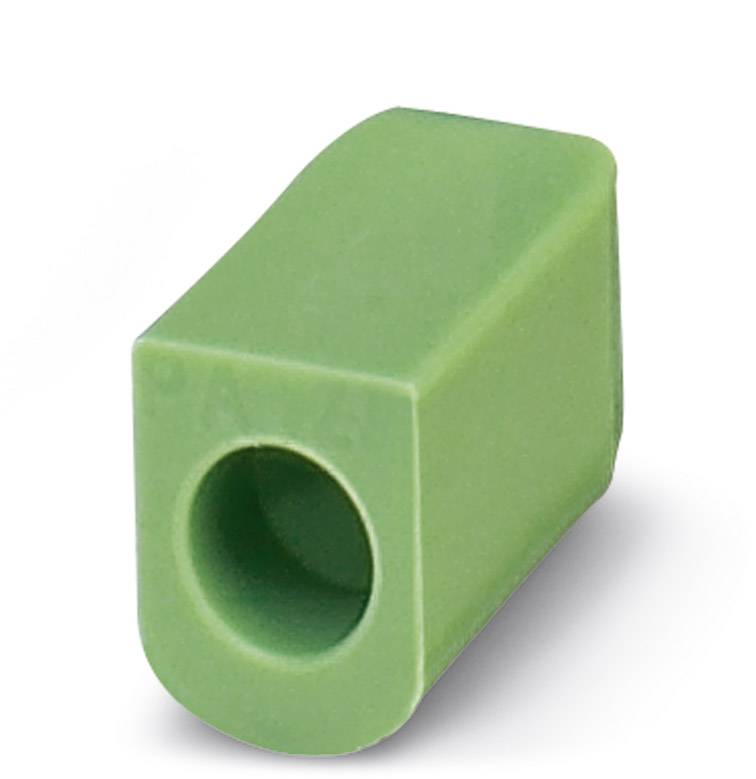

Accessories
