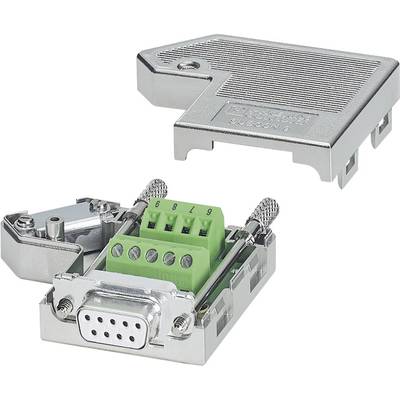

A D-sub plug with an exposed green connection block and removed metallic cover, revealing the internal connections.

A D-sub plug with an exposed green connection block and removed metallic cover, revealing the internal connections.

Technical drawing of a right-angled connecting piece with dimensions A, B, C and 16; shows front and side perspectives.

1/2

Image similar

Product type

D-SUB socket

Connector type

Socket, straight

Number of pins

25

Connection

Screws

No. of rows

2

Datasheet (PDF)

Phoenix Contact

Fast track dispatch on Fri 16 Oct

14 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 51.99 / piece)

€ 55.99

-7 %

€ 51.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Phoenix Contact SUBCON 25/F-SH 2761619 D-SUB socket 180 ° Number of pins: 25 Screws 1 pc(s)

D-SUB socket
No. of rows: 2
Number of pins: 25

Technical specifications

Pins configuration: all ports 1:1 to screw terminal.

Product type: D-SUB socket

Connector type: Socket, straight

Number of pins: 25

Connection: Screws

Connection angle: 180°

No. of rows: 2

Content: 1 pc(s)

Manufacturer part #: 2761619

Temperature range: -20 - +75 ºC °C

Type: SUBCON 25/F-SH

Type: Socket

Operating current: 1 A

Nominal voltage (details): 60 V AC/DC

Nominal current (details): 1 A

: 26 - 16

Connection: -

Cable diameter (details): 4-10 mm

Operating voltage: 60 V AC/DC

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 743286 Phoenix Contact SUBCON 25/F-SH 2761619 D-SUB socket 180 ° Number of pins: 25 Screws 1 pc(s)

User & Safety Instructions

User & Safety Instructions 743286 Phoenix Contact SUBCON 25/F-SH 2761619 D-SUB socket 180 ° Number of pins: 25 Screws 1 pc(s)

Description

Field-bus connector with D-Sub screw connection and single cable guide. No need for soldering/crimping tools - SUBCON and SUBCON-PLUS D-Sub connectors can be connected quickly and easily in field conditions · 9-pin D-Sub connector with 9-pin screw terminals, shielded housing · Rotating cable guide.

Description

Field-bus connector with D-Sub screw connection and single cable guide. No need for soldering/crimping tools - SUBCON and SUBCON-PLUS D-Sub connectors can be connected quickly and easily in field conditions · 9-pin D-Sub connector with 9-pin screw terminals, shielded housing · Rotating cable guide.
